- LVD PPEB 50/20 MNC 95 Bending Machine

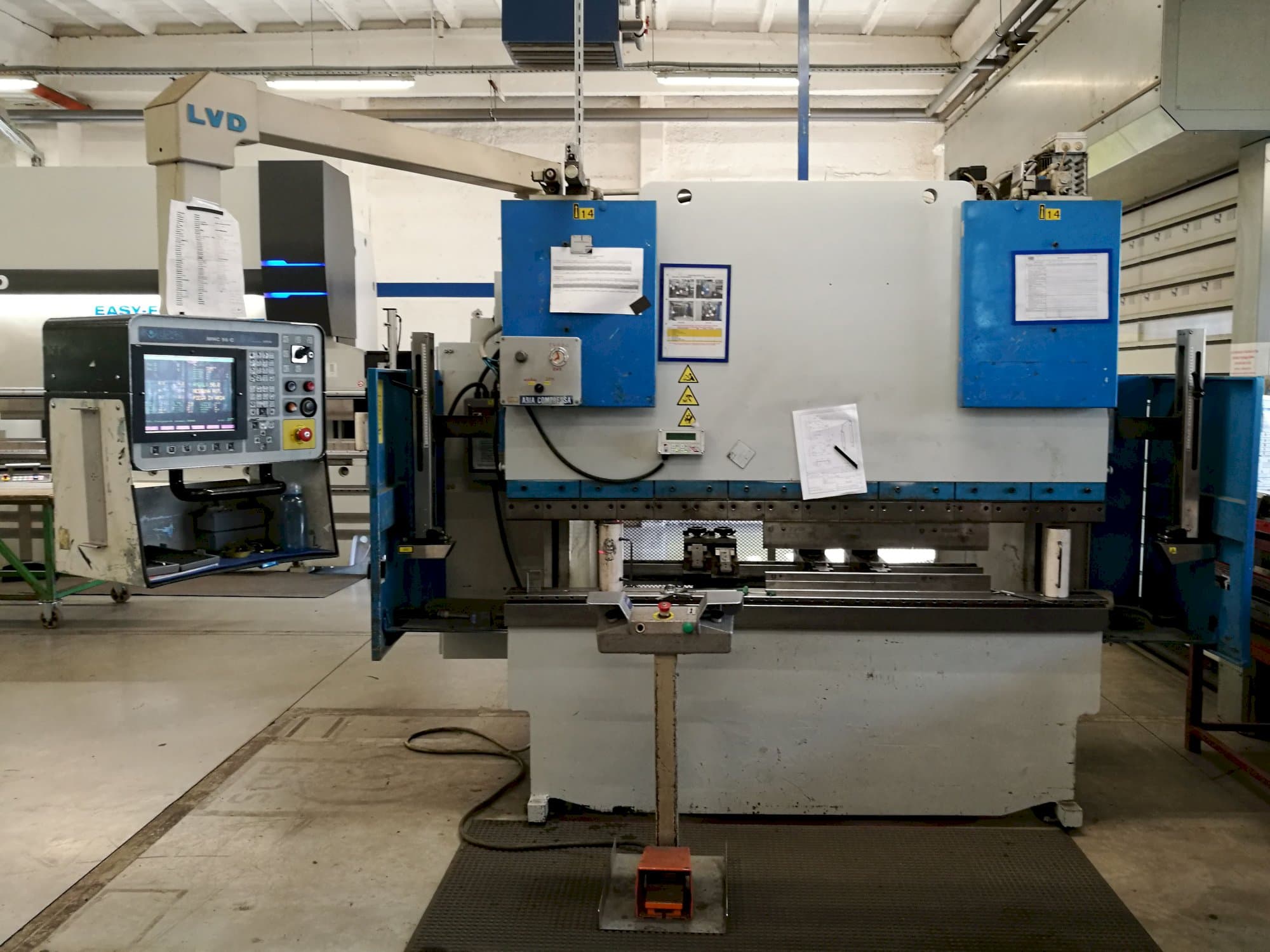

This LVD PPEB 50/20 MNC 95 Bending Machine from Belgium, built 1991, has a production history of 57952 working hours since then. Equipped with a LVD MNC 95/C Control unit, this model offers a pressing force of 500 kN. During the past, this machine has mainly worked with galvanized steel sheets up to 3 mm of thickness. Several additional equipment is included within the machine, except for the Lasersafe gates.
Overview
- brand: LVD
- year: 1991
- MODEL: PPEB 50/20 MNC 95
- production hours: 57952
- application type: Bending
- Location: Hungary
- machine type: Press Brake
- availability: Sold
Technical Information - LVD PPEB 50/20 MNC 95
General Data
- Measurements width: 2500 mm
- Measurements depth: 2000 mm
- Measurements height: 2500 mm
- Machine weight: 4000 kg
Control Unit
- Model: MNC 95/C
- CNC main language: Italian/ English
Main drive
- Pressing force: 500 kN
- Bending length: 2000 mm
- Throat: 250 mm
- Distance between bars: 1640 mm
- Main motor power: 7.5 kW
- Stroke: 125 mm
Movement
- Y-AXIS Working Feed: 14.7 mm/sec
- Y-AXIS Rapid traverse: 100 mm/sec
Max Material thickness
- Steel: 25 mm
Media
- Main electronic connection: 380 V / 50 Hz
- Power consumption: 8.5 kVA
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
