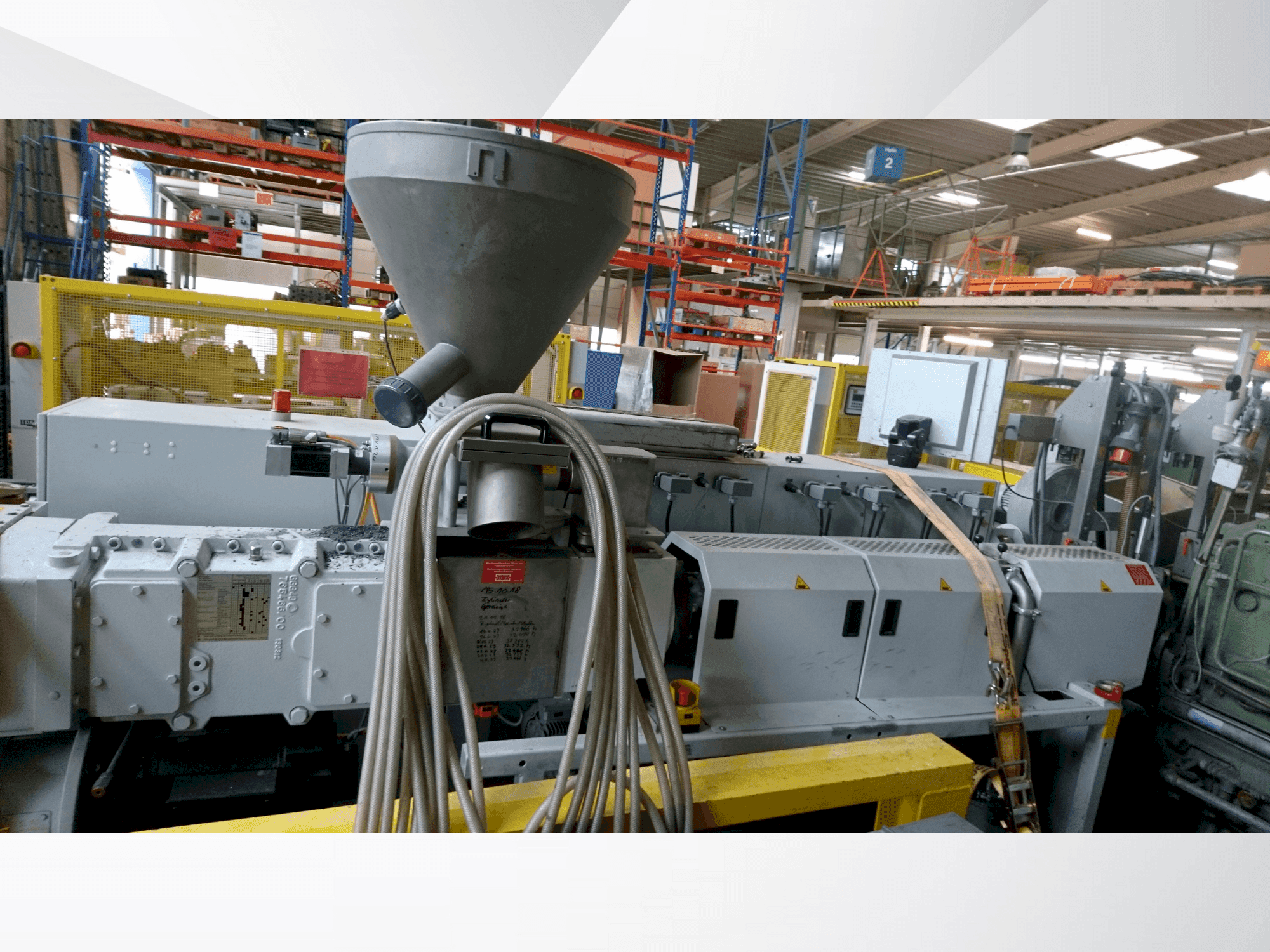

Krauss Maffei - KMD 75 XS/PDE-EXT-KRA-2013-00001

Additional equipment

• - Extruder (Krauss Maffei)
• - Calibration table (Ide)
• - Haul-off (Ide)
• - Separation unit (Ide)
• - Optionally a sawing unit (Battenfeld) can be purchased

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Highly specialized for the production of roller shutter profiles from pvc-u granules using the double strand process
  • - Galvanized and powder-coated base frame
  • - Comprehensive water collection and separation setup, efficient blowing and hauling-off units
  • - Advanced punching and cutting units
  • - Extrusion height: 1000 mm / extrusion direction: from right to left / base frame: 4m long, galvanized and powder-coated
  • - Liquid ring vacuum pumps: 3, single-stage design / calibration holder: 400x3950 mm / water collection tray: v2a / water collection tank and separator: pp
  • - Drain diameter: nw 70 / overflow tank on the inlet side: v2a / distribution racks: 3 / longitudinal adjustment: 400 mm, motorized
  • - Blower unit: frame length 2m, blowing direction in extrusion direction, air tunnel size 250x120x1800mm, manual height adjustment / empty frame: 0. 6 m long
  • - Caterpillar haul-off: haul-off speed 0. 7 to 14. 0 m/min, max. Haul-off force 1000n, contact length approx. 1500 mm, hydraulic caterpillar clamping, 2 transport caterpillars with 3 duplex roller chains each, 2 guide rollers at the infeed
  • - Punching unit: base frame 1m long, 2 upper punching parts mounted, travelling distance per punching slide: 25 mm, servo-motor-driven, theoretical punching force 3000n, punching stroke length 10 mm, punching sequence max 300 strokes/min
• Qualitative Machine Benefits:
  • - Length encoder: 24v, 5000 pulses/revolution
  • - Cross-cutting unit for double strand extrusion: travelling distance 400 mm pneumatically supported, 2 cutting heads with cross stroke approx. 65 mm each
