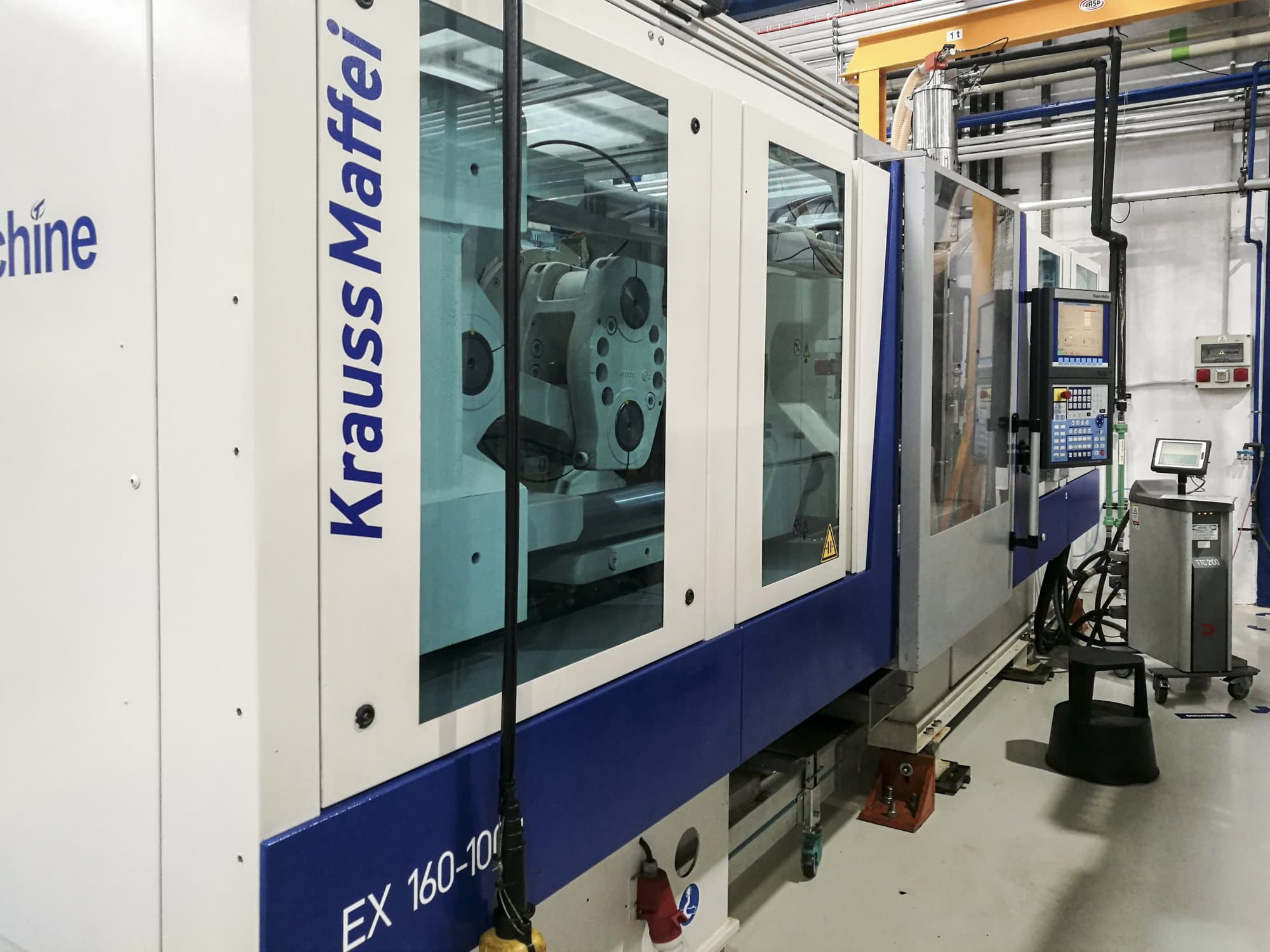

Krauss Maffei 160-1000 EX Injection Moulding Machine

Show in original language

This Krauss Maffei 160-1000 EX Injection Moulding Machine from 2008 was manufactured in Germany and has been active for 64032 production hours. Operated through a Krauss Maffei MC5 Control unit, the machine stands in very good conditions thanks to regular maintenance and levelling every 6 months. In the past, this Krauss Maffei has handled polyethylene and produced plastic caps. For this machine a warranty on spare parts is included.

Overview

brand: Krauss Maffei
year: 2008
MODEL: 160-1000 EX
production hours: 64032
application type: Injection Moulding
Location: Spain
machine type: Electrical Injection Moulding Machine
availability: Sold
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 160-1000 EX

General Data

Measurements width: 6700 mm
Measurements depth: 1600 mm
Measurements height: 2300 mm
Machine weight: 13200 kg

Control Unit

Model: MC5
Brand: KRAUSS MAFFEI

Injection Unit

Screw diameter: 50 mm
Shot weight: 393 g/PS
Stroke volume: 432 cm³
Injection pressure: 2304 bar
Plasticizing rate max.: 61,1 g/s PS
Screw speed: 416 1/min
Nozzle pressure: 60 kN

Clamping unit

Clamping force: 1600 kN
Opening stroke: 450 mm
Max open daylight: 300 mm
Distance between bars: 550 mm
Ejector stroke: 150 mm
Ejector force for / back: 22 kN

Additional equipment

- (Warranty on Spare Parts included)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
