Krauss Maffei - 600 - 3500 C3RS-INJ-KRA-2006-00001

Name: Krauss Maffei 600 - 3500 C3
Brand: Krauss Maffei
SKU: RS-INJ-KRA-2006-00001
Price: 2476000 INR
Availability: InStock

Rs. 2,476,000

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Krauss Maffei 600 - 3500 C3 | Injection Moulding

Show in original language

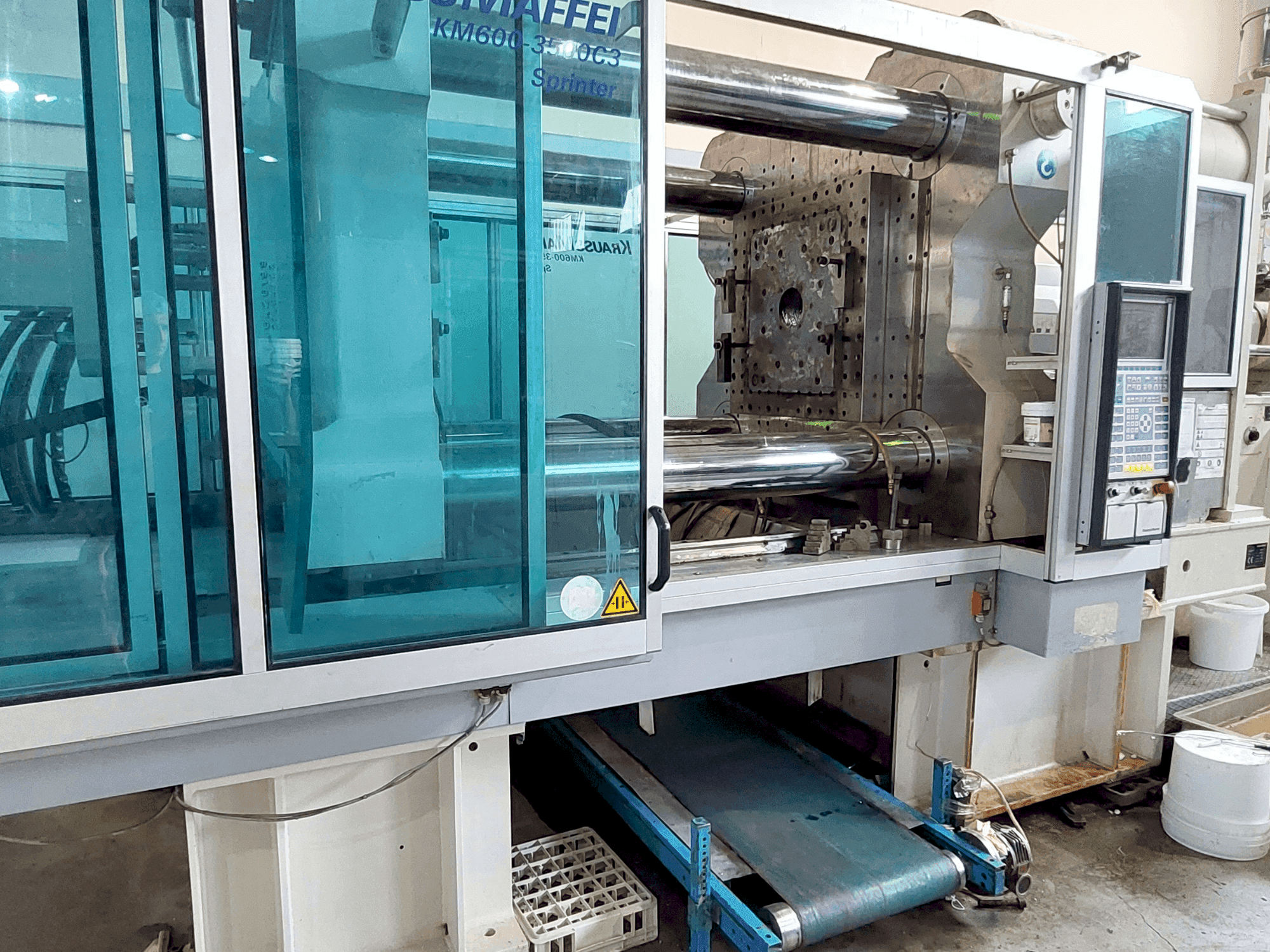

This Krauss Maffei 600 - 3500 C3 hydraulic injection moulding machine was manufactured in 2006. It features a tie bar distance of 1000 x 930 mm and an opening stroke of 1150 mm. Equipped with 1 core valve, 3 air valves, and a screw diameter of 80 mm, it also includes an EU 12 connection for robot integration. For more information about this hydraulic injection moulding machine, please reach out to us.

Overview

brand: Krauss Maffei
year: 2006
MODEL: 600 - 3500 C3
application type: Injection Moulding
Location: Serbia
machine type: Hydraulic Injection Moulding Machine
availability: Immediately

Technical Information - Krauss Maffei 600 - 3500 C3

General Data

Measurements width: 2650 mm
Measurements depth: 9360 mm
Measurements height: 2430 mm
Machine weight: 43400Kg

Injection Unit

Screw diameter: 80 mm

Clamping unit

Opening stroke: 1150 mm
Distance between bars: 1000 x 930 mm

Additional equipment

- Core Valve: 1
- Air Valves: 3
- EU 12 for Robot Connection: Yes
- Attached you will find some drawings with fundament and platens.

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Closing unit: · platen size 1510 x 1370mm · between tie bars 1000 x 930mm · oppening stroke 1150mm · min. Mold size 600mm · total open space 1750mm · ejector stroke 250mm
- - Injection unit: · sp 3500 with screw diameter 80 · l/d 25. 9 · injection pressure 2205 bar · volume stroke 1543 cm3 · max. Shot weight ps 1404g (around 1110g pp)
- - Instaled power: · main motor 160kw · servo motor for dosing 70kw (for paralel operations) · heating power 57kw

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
