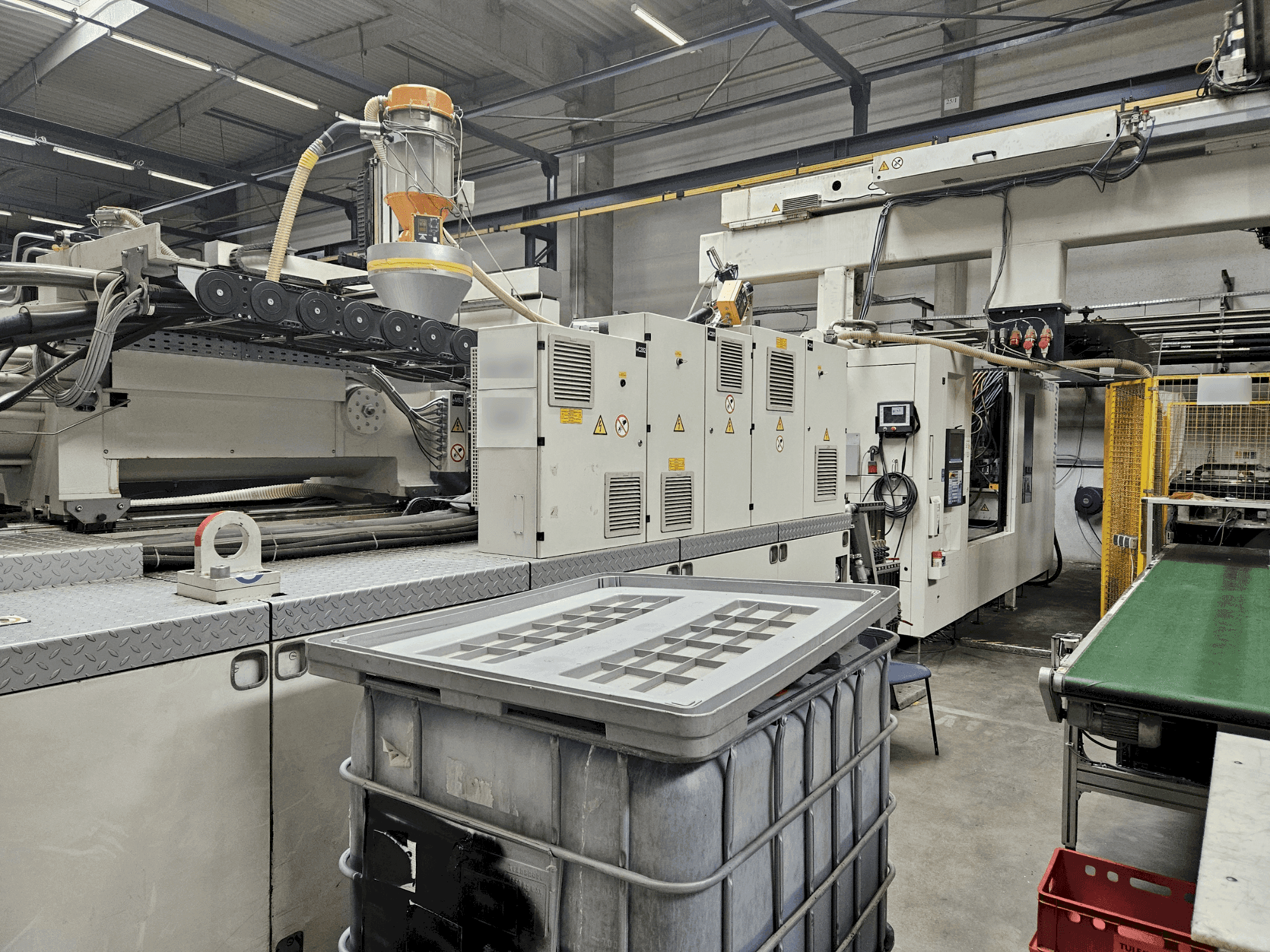

Krauss Maffei - 850-12000 MXPL-INJ-KRA-2011-00001

Additional equipment

• - Handling Robot: KM LRX 500

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - High clamping force of 8500 kn for robust operations
  • - Advanced control system for precise operations
  • - Equipped with a handling robot for automated processes
  • - Clamping force: 8500 kn
  • - Type of clamping unit: hydraulic
  • - Screw diameter: 135 mm, volume of screw channel: 8588 cm³
  • - Non-return valve: yes
  • - Max. Injection pressure: 1389 bar, max. Injection rate: 1415 cm³/s
  • - L/d ratio: 23:1
  • - Plasticizing capacity: 8588 g/s, injection capacity: 7815 cm³, shot weight in ps: 1600 g
• Qualitative Machine Benefits:
  • - High injection pressure and rate for efficient molding
  • - Versatile with options for core pullers and hot runner control

Extra information

• - Opening Stroke: 500/1100 mm, Mold Height (min/max): 2100 mm, Max. Daylight Opening: 1600/1530 mm, Platen Dimensions: 1120 x 1000 mm, Clearance Between Tie Bars: 12200 mm, Max. Mold Weight: 250/250 kg, Centering Ring: M36, Ejector Stroke: 300 mm, Core Pullers: 1, Cooling Circuits: 2, Hot Runner Control: 2 zones,

Payment Terms

• Payment in advance

• Asset Financing
