➤ Used Engel e-Victory 740/450 US For Sale | gindumac.com

Show in original language

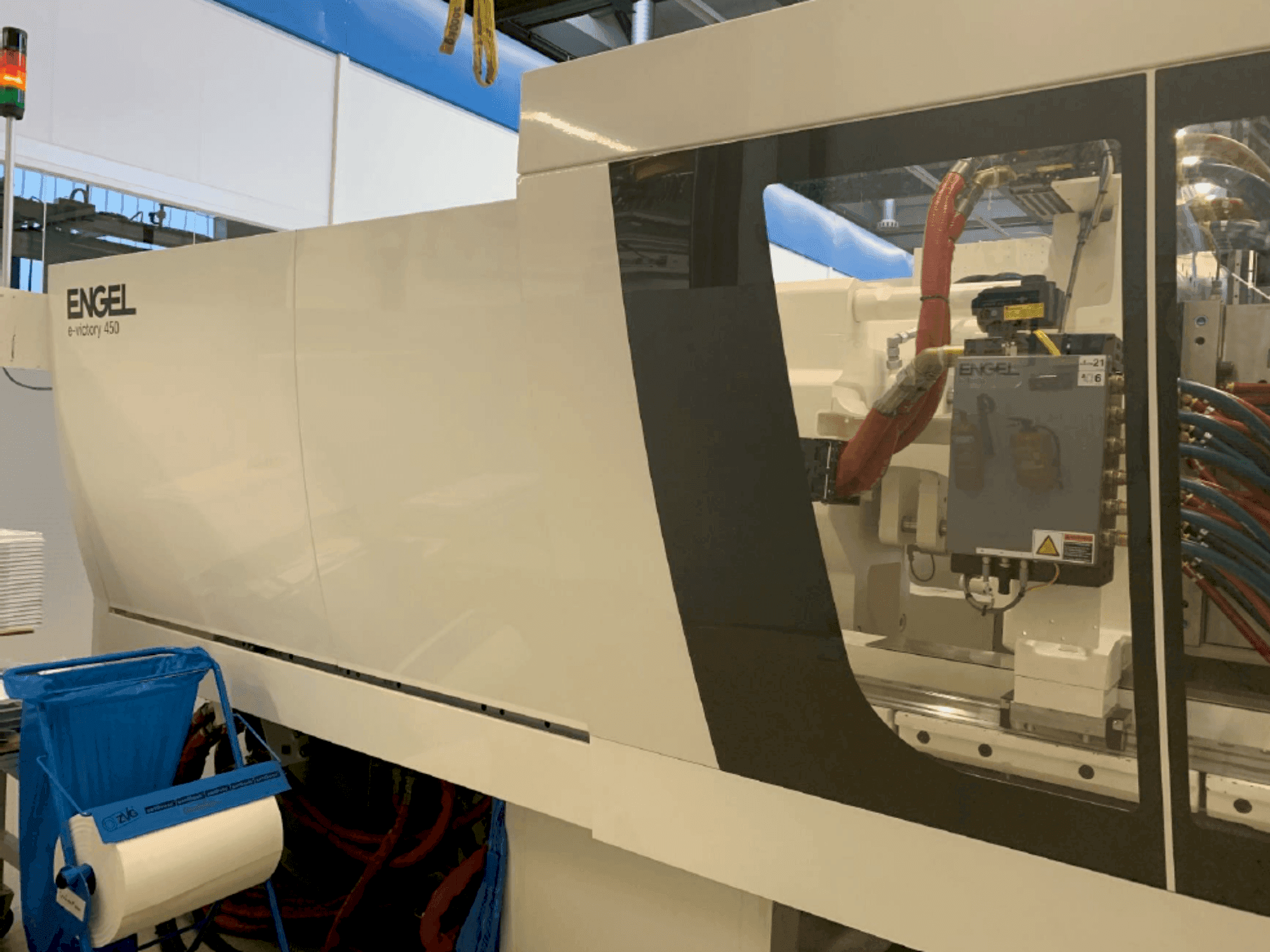

This electrical injection moulding machine was manufactured in 2020 by Engel. Model e-Victory 740/450 US features a tie-bar-less design, electric operation, and a clamping force of 4000kN. It includes a screw diameter of 45mm and a maximum opening stroke of 39.37 inches. The machine is equipped with a Viper 20 RC300 robot, enhancing its automation capabilities. Consider the opportunity to buy this Engel e-Victory 740/450 US electrical injection moulding machine. Contact us for further details regarding this machine.

Overview

brand: Engel
year: 2020
MODEL: e-Victory 740/450 US
application type: Injection Moulding
Location: Germany
machine type: Electrical Injection Moulding Machine
availability: Immediately

Technical Information - Engel e-Victory 740/450 US

Injection Unit

Screw diameter: 45 mm
Stroke volume: 200 mm CM³
Screw speed: 300 min⁻¹

Clamping unit

Clamping force: 4000 kN
Opening stroke: 39.37 inches

Additional equipment

- 8 pcs. Temperature Control Units e-Temp H16-120 / 1 pc. Linear Robot Viper 20 RC300 / 1 pc. Conveyor Belt/Conveyor System FB100 / 1 pc. Material Conveyor Piovan S55

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Clamping: opening force: 26. 6 us tons / min mould height: 17. 74 inches / weight standard/wide-platen: 24. 1/24. 6 tons / clamping plate size standard: according to euromap, centering 160 mm / mould heating: 24 control circuits / mould nozzle control: pneumatic 4-fold
- - Injection unit: 740 / peripheral screw speed max: 0. 71 m/s / injection capacity: 318 cm³ / screw torque max: 900 nm / l/d ratio: 20 / recovery rate: 31. 3 g/s / autoprotect mould protection / mechanical locking mechanism
- - Viper robot: max possible total system height: 5100 mm / required minimum shelf height: 1100 mm / deposit side: rear of machine / installation location: on fixed clamping plate / removal side: movable clamping platen (ejector side) / retracting movement: vertical + horizontal switchable / z stroke: 1880 mm / x stroke: 700 mm / y stroke single: 1500 mm / b axis: 70 nm, compact drive m, travel: +90/-180 degrees / c axis: 70 nm, compact drive m, 0/+180 degrees / a axis: 70 nm, compact drive m, travel -90/+180 degrees / a axis: 70 nm, compact drive m, travel -90/+180 degrees

Extra information

- Important: Machine is not CE compliant; CE conformity modifications may need to be requested.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
