- ➤ Used ENGEL e-motion 2440/380 T - Injection Moulder

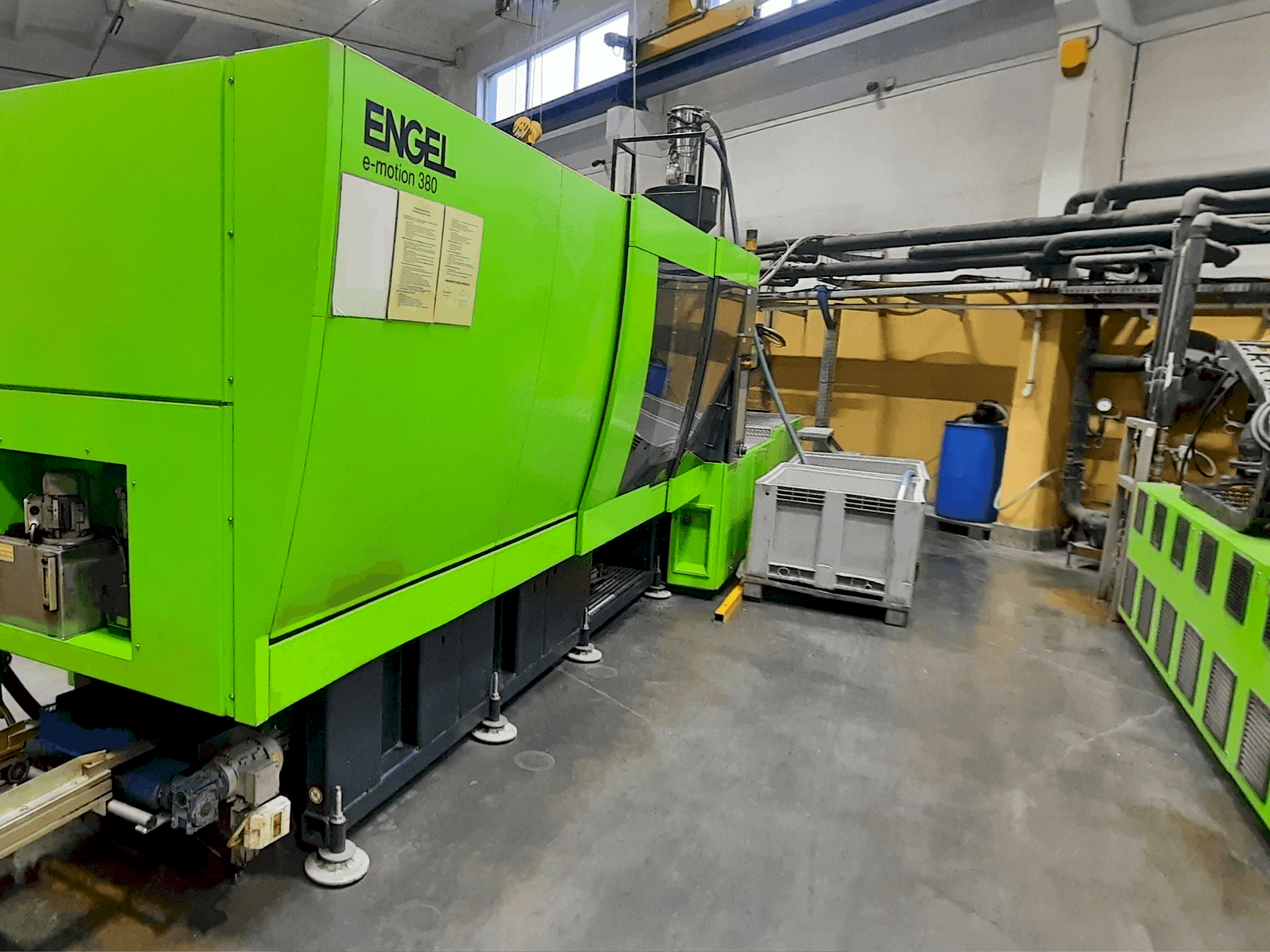

This ENGEL e-motion 2440/380 T Injection moulding machine was manufactured in the year 2017 in Austria and has 50249 production hours. It is equipped with a Engel CC300 control unit. The machine is all-electric and energy efficient. It has fast, dynamic, and highly precise movements through a five-point toggle lever clamping system with low friction platen guidance on precision linear bearings. The machine is still at the production and can be checked upon request. Full service documentation and manuals.
Overview
- brand: Engel
- year: 2017
- MODEL: e-motion 2440/380 T
- production hours: 50249
- application type: Injection Moulding
- Location: Poland
- machine type: Electrical Injection Moulding Machine
- availability: Immediately
- control unit brand: ENGEL
Technical Information - Engel e-motion 2440/380 T
General Data
- Machine weight: 22200 kg
Control Unit
- Brand: ENGEL
- Model: CC300
Injection Unit
- Nozzle pressure: 500 mm
Clamping unit
- Clamping force: 3800 kN
- Opening stroke: 700 mm
- Mould height min: 300 mm
- Mould height max: 750 mm
- Size of mold platens: 1140x1140 mm
- Ejector force for / back: 120 kN
Media
- Main electronic connection: 3x400V / 50 Hz
Additional Information
- Technical Machine Benefits:
- - S8 barrier screw, geometry g16 r with r-mixing head - diameter 70 mm - screw length l/d 24.
- - Direct drive ejector bg4 max force: 120 kn.
- - Platens with locating diameter in standard execution euromap - centering 160 mm.
- Qualitative Machine Benefits:
- - All-electric and energy efficient
- - Fast, dynamic, and highly precise movements through a five-point toggle lever clamping system with low friction platen guidance on precision linear bearings.
- - Maximum energy efficiency due to the consistent use of servo-electric drive technology with maximum effectiveness.
- - Highly efficient injection unit ensures ultra-fast injection.
- - The machine is still at the production and can be checked upon request. Full service documentation and manuals.
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
