KOVOSVIT MAS - Masturn MT 50/800CZ-TUR-KOV-1999-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
KOVOSVIT MAS Masturn MT 50/800 Lathe

Show in original language

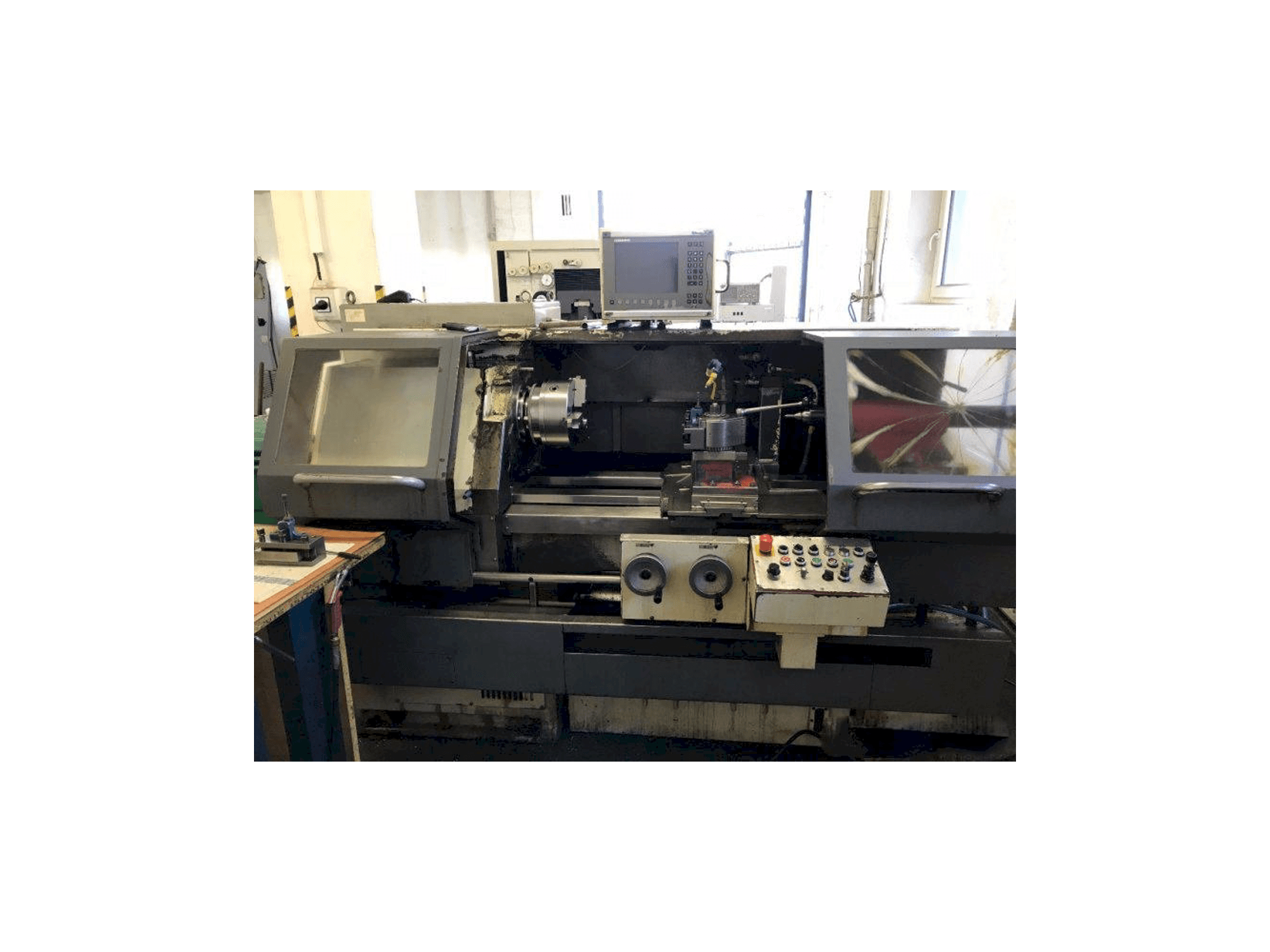

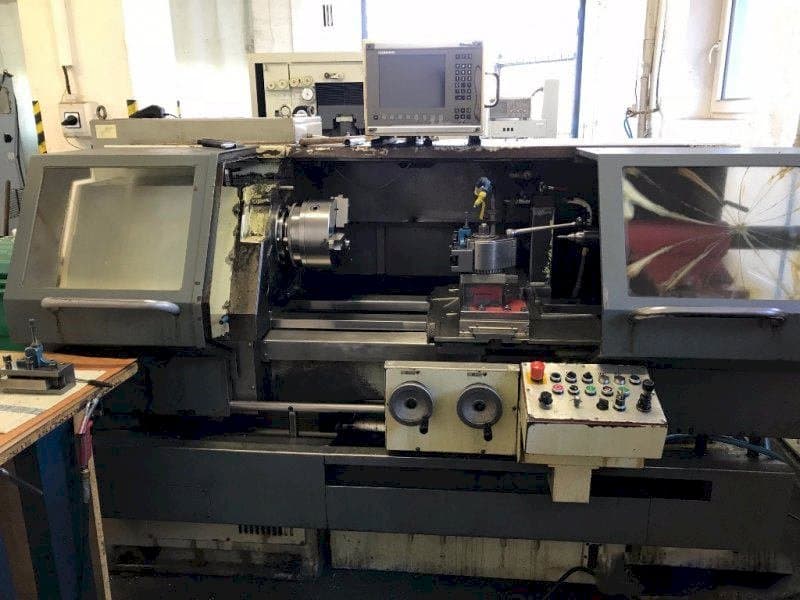

This KOVOSVIT MAS Masturn MT 50/800 Lathe from Czech Republic was manufactured in 1999. It is operated through a Heidenhain Manual plus M control unit. This machine incorporates a spindle speed up to 2400 rpm, and a spindle power of 11kW.

Overview

brand: KOVOSVIT MAS
year: 1999
MODEL: Masturn MT 50/800
application type: Turning
Location: Czech Republic
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - KOVOSVIT MAS Masturn MT 50/800

General Data

Measurements width: 2383 mm
Measurements depth: 1370 mm
Measurements height: 1785 mm
Machine weight: 2500 kg

Control Unit

Model: Manual plus M
CNC main language: Czech
CNC language customizable: Yes
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 2400 1/MIN
Spindle motor power: 11 kW

Movement

X-AXIS Movement: 250 mm
Z-AXIS Movement: 750 mm

Workpiece

Workpiece drm: 500 mm
Workpiece x: 350 mm
Workpiece z: 800 mm
Workpiece weight: 350 kg

Media

Power consumption: 27 kVA

Additional Information

Machine history

Material type: Steel, stainless

Machine Benefits

Technical Machine Benefits:
- - Max. Space between tips 800 mm
- - Max. Swing over bed 500 mm
- - Max. Swing over cross-slide 350 mm
- - Spindle bore 82 mm
- - Tailstock quill diameter 80 mm
- - Tailstock quill stroke 180 mm
- - Multifix tool holder

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
