➤ Used KOVOSVIT MAS MASTURN 550i CNC 1500 | Lathe For sale

Show in original language

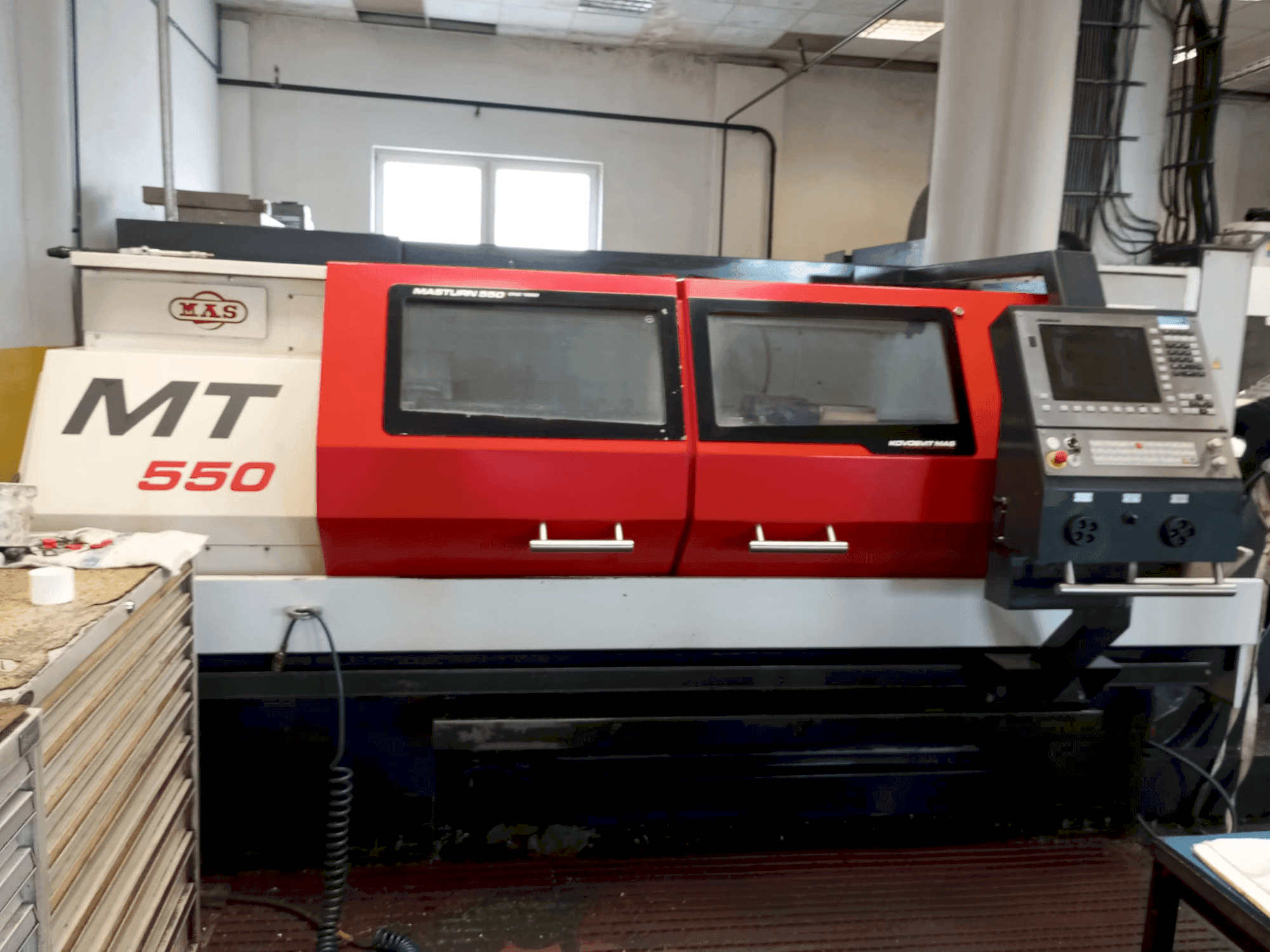

This KOVOSVIT MAS MASTURN 550i CNC 1500 lathe was manufactured in 2015. It features a maximum machining diameter of 500 mm and a turning diameter over bed of 550 mm. Equipped with a HEIDENHAIN MANUAL plus 620 control, it offers a spindle speed range up to 3000 rpm and a turret head with 8 positions. Ideal for precision machining, the KOVOSVIT MAS MASTURN 550i CNC 1500 represents a robust addition to any workshop. Contact us for further details.

Overview

brand: KOVOSVIT MAS
year: 2015
MODEL: MASTURN 550i CNC 1500
application type: Turning
Location: Czech Republic
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - KOVOSVIT MAS MASTURN 550i CNC 1500

General Data

Measurements width: 1920 MM
Measurements depth: 3238 MM
Measurements height: 1755 MM
Machine weight: 3400 KG

Control Unit

Model: MANUAL plus 620
Brand: HEIDENHAIN

Main drive

Spindle speed range: 0 - 3000 1/MIN
Spindle motor power: S1/ S6 - 40%: 17 / 25 kW

Movement

X-AXIS Movement: 285 mm
Z-AXIS Movement: 1590 mm

Workpiece

Workpiece drm over bed: 550 mm
Workpiece drm over support: 350 mm

Additional equipment

- Quill cone: MORSE 5

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Machining diameter: 500 mm
- - Distance between the tips: 1600 mm
- - Tailstock quill diameter: 90 mm
- - Quill stroke: 160 mm
- - Working feed: 0 - 10,000 mm/min
- - Total machine input: 30 kva
- - Turret head 8 positions (vdi 30)
- - Rapid feed: 10 m/min

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
