➤ Used Hyundai Wia LM 1800TTSY For Sale | gindumac.com

Show in original language

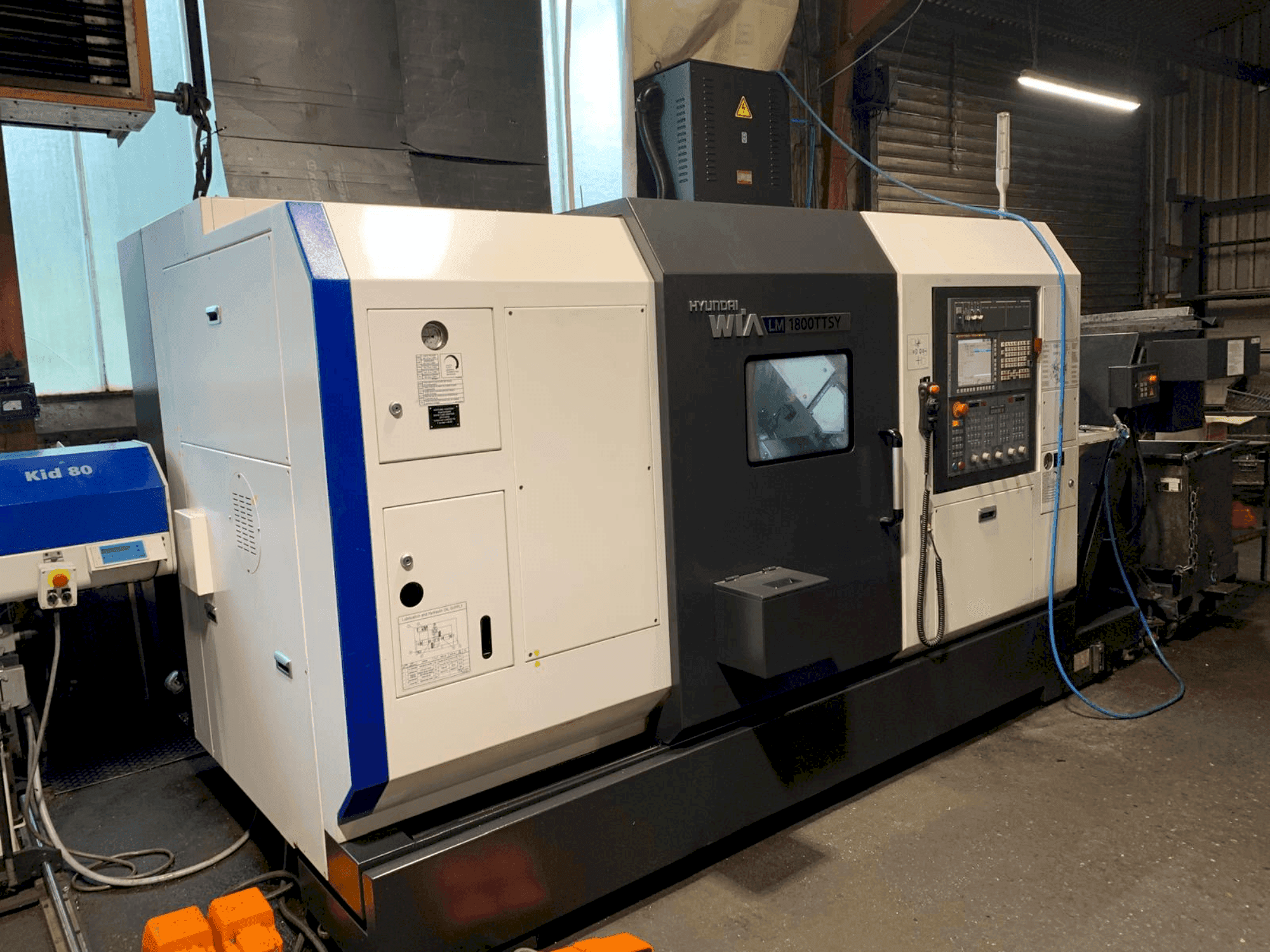

This 4-axis Hyundai Wia LM 1800TTSY horizontal turning machine was manufactured in 2021. It features a slant bed lathe with main and counter spindle, two turret heads, and Y-axis with driven tools. Equipped with a Fanuc F31i A control, it supports a turning diameter of 230 mm and a length of 673 mm. If you are looking to get high quality turning capabilities consider the Hyundai Wia LM 1800TTSY machine we have for sale. Contact us for more information.

Overview

brand: Hyundai Wia
year: 2021
MODEL: LM 1800TTSY
production hours: 280
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Immediately
control unit brand: FANUC

Technical Information - Hyundai Wia LM 1800TTSY

Control Unit

Brand: FANUC

Main drive

Spindle speed range: 5000 rpm 1/MIN
Spindle motor power: 11/22 kW
Number of axis: 4

Turret

Number of turrets: 2

Tools

Number of index: 2x12

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional equipment

- USB interface
- Three-colour signal light
- 1 set of soft jaws
- CHIP CONVEYOR HS with lateral ejection
- Transformer incl. cable
- Manual compressed air gun
- Bar feeder interface // Bar loader interface
- Parts catcher main spindle
- Parts unloader: Parts unloading system for the counter spindle incl. parts conveyor belt
- Workpiece ejector

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Linear (z) and flat-guided (x/y) 45 degree
- - Turning Ø: 230 mm // turning length: 673 mm
- - Chuck size both spindles: 8 inch (~210 mm)
- - Turret c-axis, 0. 001° // turret y-axis, +- 50 mm - upper turret
- - Driven tools: 5000 rpm, 5. 5 kw
- - 1 x axially driven tools // 1 x radial driven tools
- - Automatic tool probe
- - Coolant tank 270 litres // standard coolant nozzle
- - Internal cooling 30 bar
- - 30 bar coolant pump (60hz)

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
