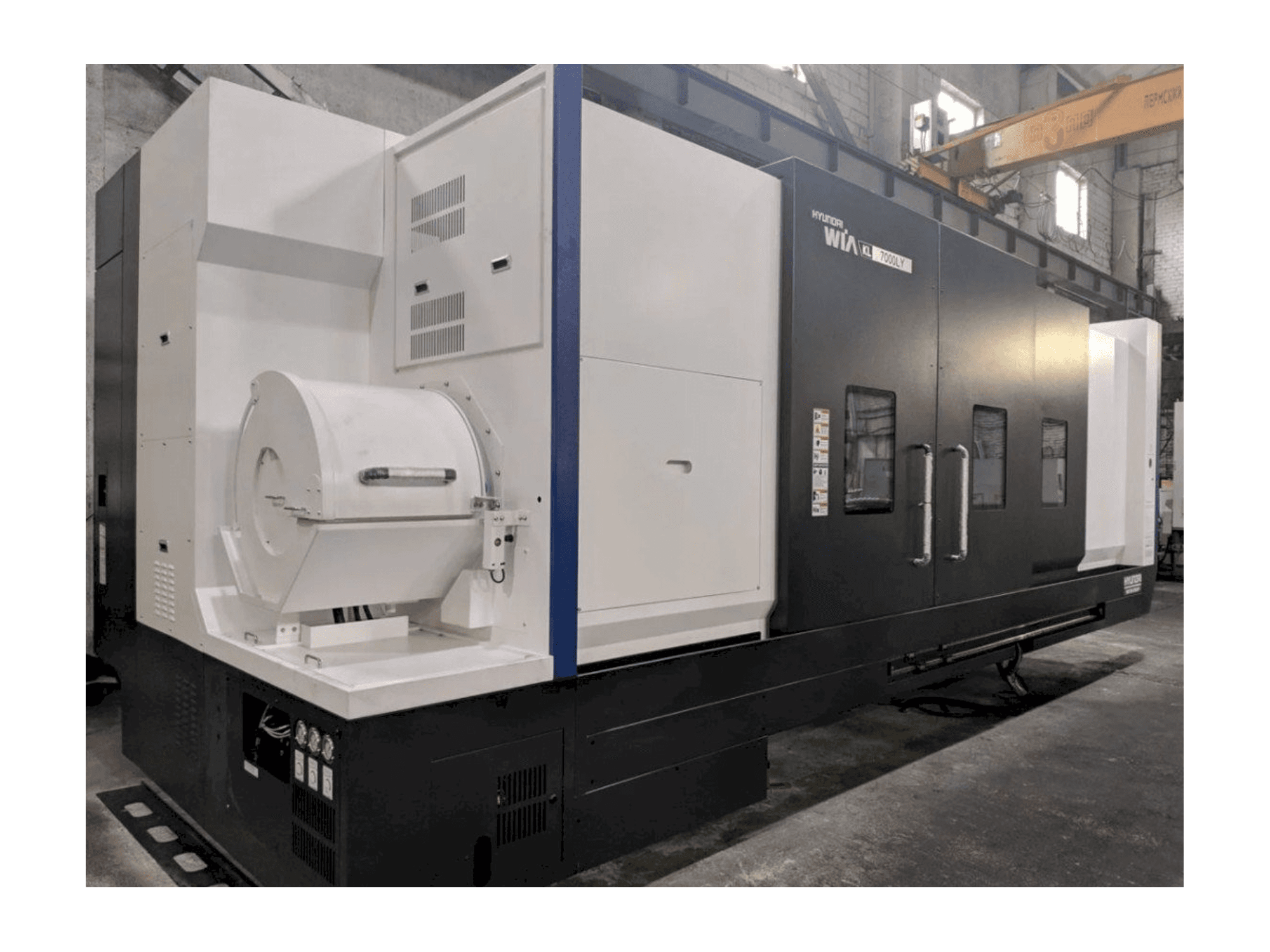

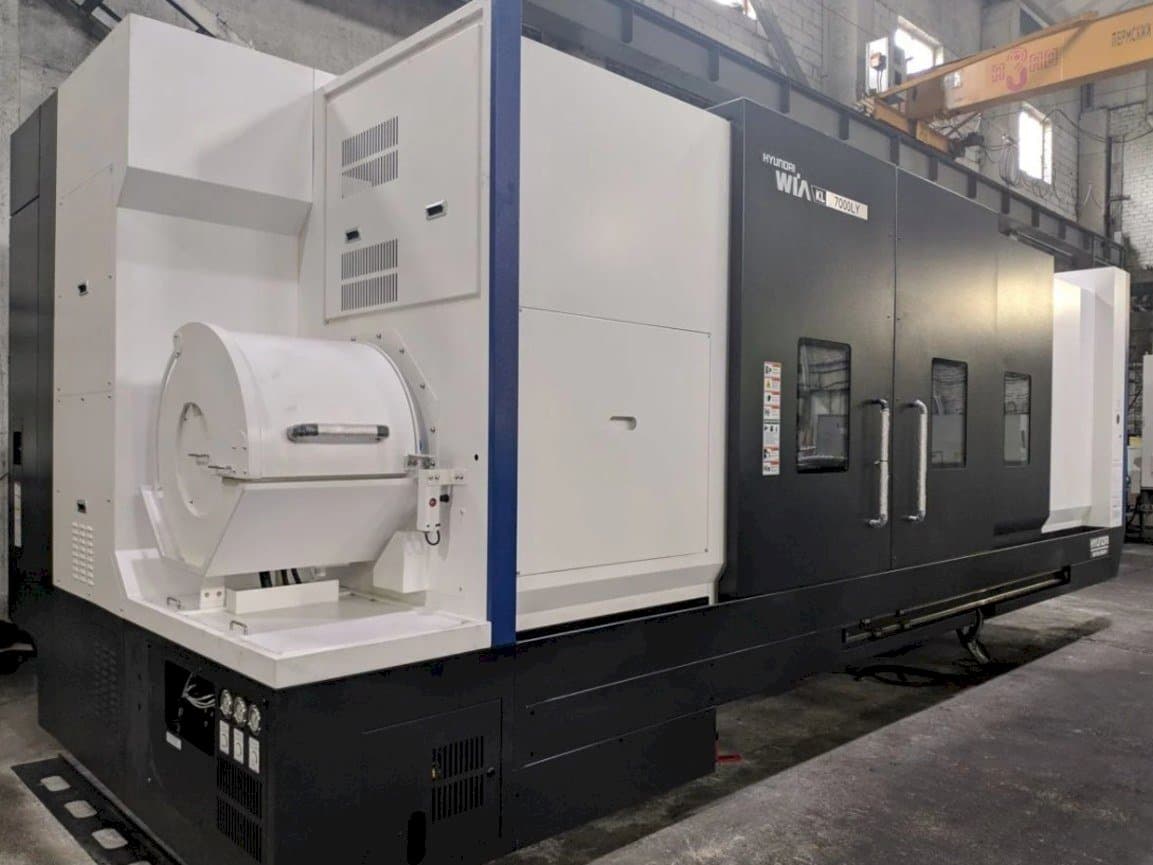

Hyundai Wia KL 7000 LY lathe

Show in original language

This Hyundai Wia KL 7000 LY lathe was built in 2019. This 3 axis machine runs through a Sinumerik 828 D control unit. It has a spindle speed up to 1500 rpm. It is in good condition, it was used for finishing in the production of drilling equipment. It has been regularly maintained.

Overview

brand: Hyundai Wia
year: 2019
MODEL: KL 7000 LY
application type: Turning
Location: Russia
machine type: Turn-Mill Centre
availability: Sold

Technical Information - Hyundai Wia KL 7000 LY

Control Unit

Model: Sinumerik 828 D

Main drive

Spindle speed range: 1500 1/MIN
Spindle motor power: 45/37 kW
Number of axis: 3

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 220 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Chuck diameter: 610 mm
- - Max. Machining diameter: 920 mm
- - Max. Machining length: 3250 mm
- - Diameter above the bed: 1200 mm
- - Max. Bar diameter: 165 mm
- - X/y/z / fast feed speed: 12/10/12 / m/min
- - Number of places for tools: 12
- - Power of the driving tool: 11/7. 5 kw
Qualitative Machine Benefits:
- - Good condition
- - It was used for finishing in the production of drilling equipment
- - Regular maintenance

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
