➤ Used HYUNDAI KIA SKT 21 LM Lathe For sale | gindumac.com

Show in original language

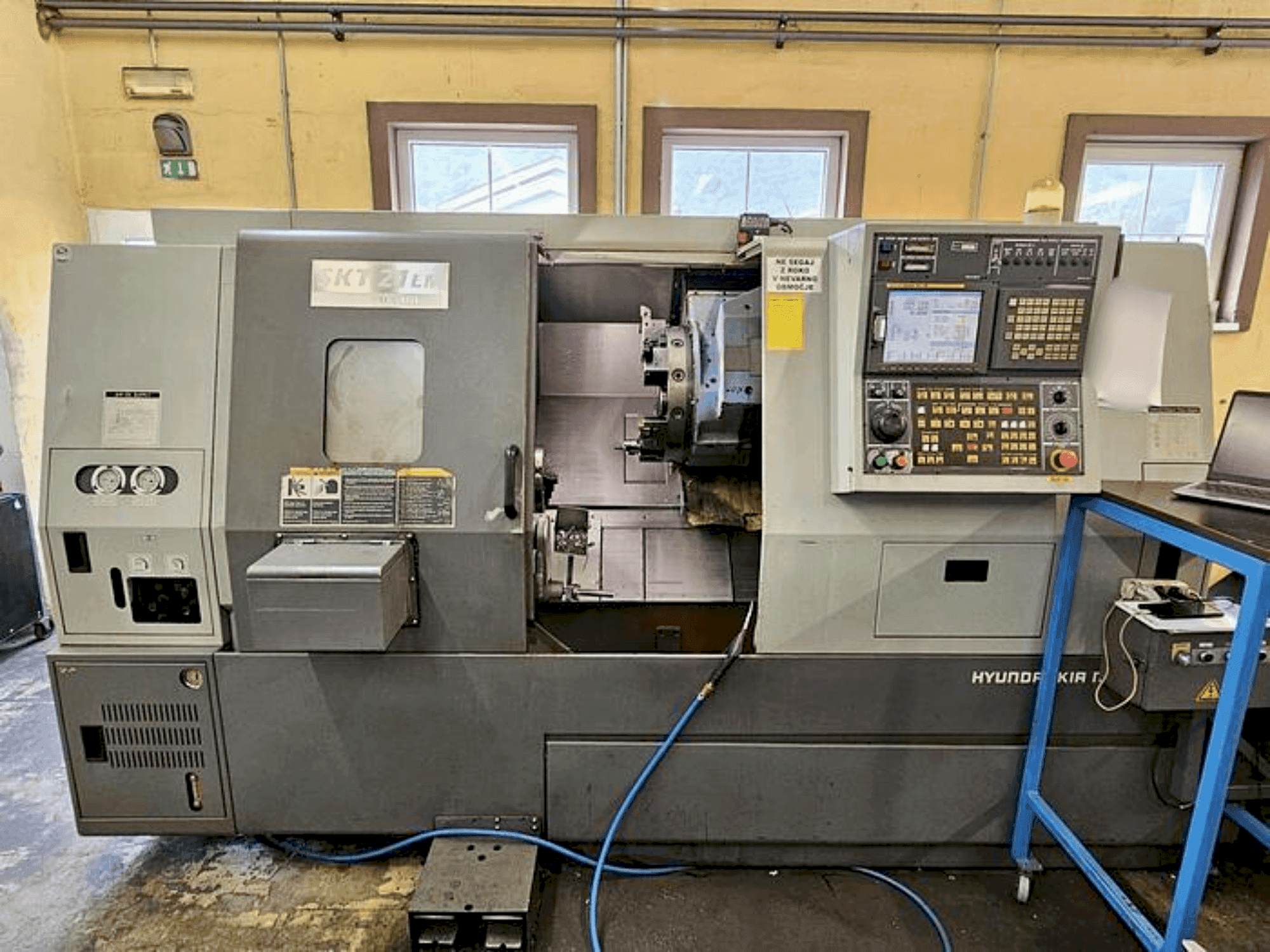

This Hyundai Kia SKT 21 LM lathe was manufactured in 2005. It features a chuck size of 203 mm, a maximum turning diameter of 255 mm, and a maximum turning length of 530 mm. The spindle supports up to 4000 rpm with a power of 15/11 kW. Additional features include a tool setter, part collector, hydraulic tailstock, power tools with C-axis, and a chip conveyor. For more information about this lathe, please reach out to us.

Overview

brand: HYUNDAI KIA
year: 2005
MODEL: SKT 21 LM
application type: Turning
Location: Slovenia
machine type: Horizontal Turning Machine
availability: Immediately

Technical Information - HYUNDAI KIA SKT 21 LM

General Data

Measurements width: 1650 MM
Measurements depth: 4165 MM
Measurements height: 1870 MM
Machine weight: 4400 KG

Main drive

Spindle speed range: 4000 1/MIN
Spindle motor power: 15/11 kW
Number of axis: 3

Movement

X-AXIS Movement: 210 mm
X-AXIS Rapid traverse: 30 m/min
Y-AXIS Movement: 550 mm
Z-AXIS Rapid traverse: 30 m/min

Media

Chip conveyor: Yes

Additional equipment

- Tool setter
- Part collector
- Hydraulic tailstock
- Power tools (C-axis)
- Power tools (C-axis)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Chuck size: 203 mm or 8 inch
- - Maximum turning diameter: 255 mm
- - Maximum turning length: 530 mm
- - Bar capacity: 65 mm
- - Rapid traverse speed, matching spindle and milling speeds.
Qualitative Machine Benefits:
- - Excellent condition, operational readiness.

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
