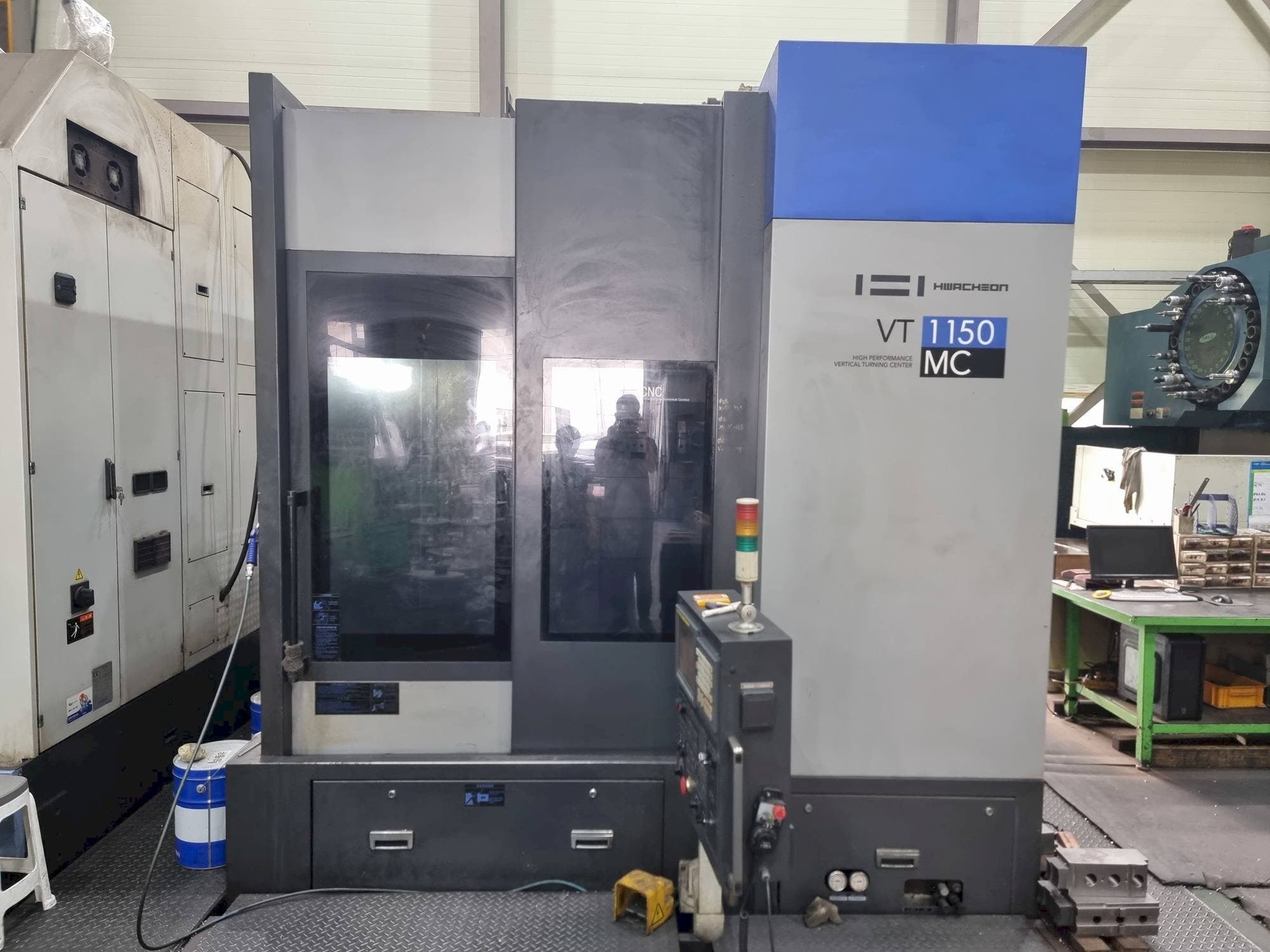

HWACHEON VT1150MC Vertical Lathe machine.

Show in original language

This HWACHEON VT1150MC Vertical Lathe machine was made in the year 2011. It has 18140 of power on time, of which 4179 are run time, and 4089 are cut time. It is equipped with a FANUC Oi-TD control unit. The machine operates with a spindle speed up to 630 rpm. Includes coolant gun and its manual books.

Overview

brand: HWACHEON
year: 2011
MODEL: VT1150MC
production hours: 18140
application type: Turning
Location: South Korea
machine type: Vertical Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - HWACHEON VT1150MC

General Data

Measurements width: 2850 mm
Measurements depth: 3950 mm
Measurements height: 3600 mm
Machine weight: 25000 kg

Control Unit

Model: Series Oi-TD
Brand: FANUC

Main drive

Spindle speed range: 630 1/MIN

Movement

X-AXIS Movement: 610 mm
Z-AXIS Movement: 950 mm
C-AXIS Movement: 0001 degree MM

Media

Main electronic connection: 220V 60Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Run time : 4179h, cut time : 4089h
- - Bed of swing: dia 1350 mm
- - Max dia: 1320 mm
- - Max length: 950 mm
- - Chuck size : 40 inch
- - Driven tools (2 angular, 2 straight)
- - 2 step gear type milling tool rpm: 3000
- - Linear scale : x, z axis
- - Coolant gun
- - Chip conveyer, chip bucket
Qualitative Machine Benefits:
- - Call right(led 3 step)
- - Mpg handle
- - Manual books
- - Transformer
- - Ce mark
- - Turret capacity : 24ea

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
