HUVEMA HU 660 X 3000 Lathe

Show in original language

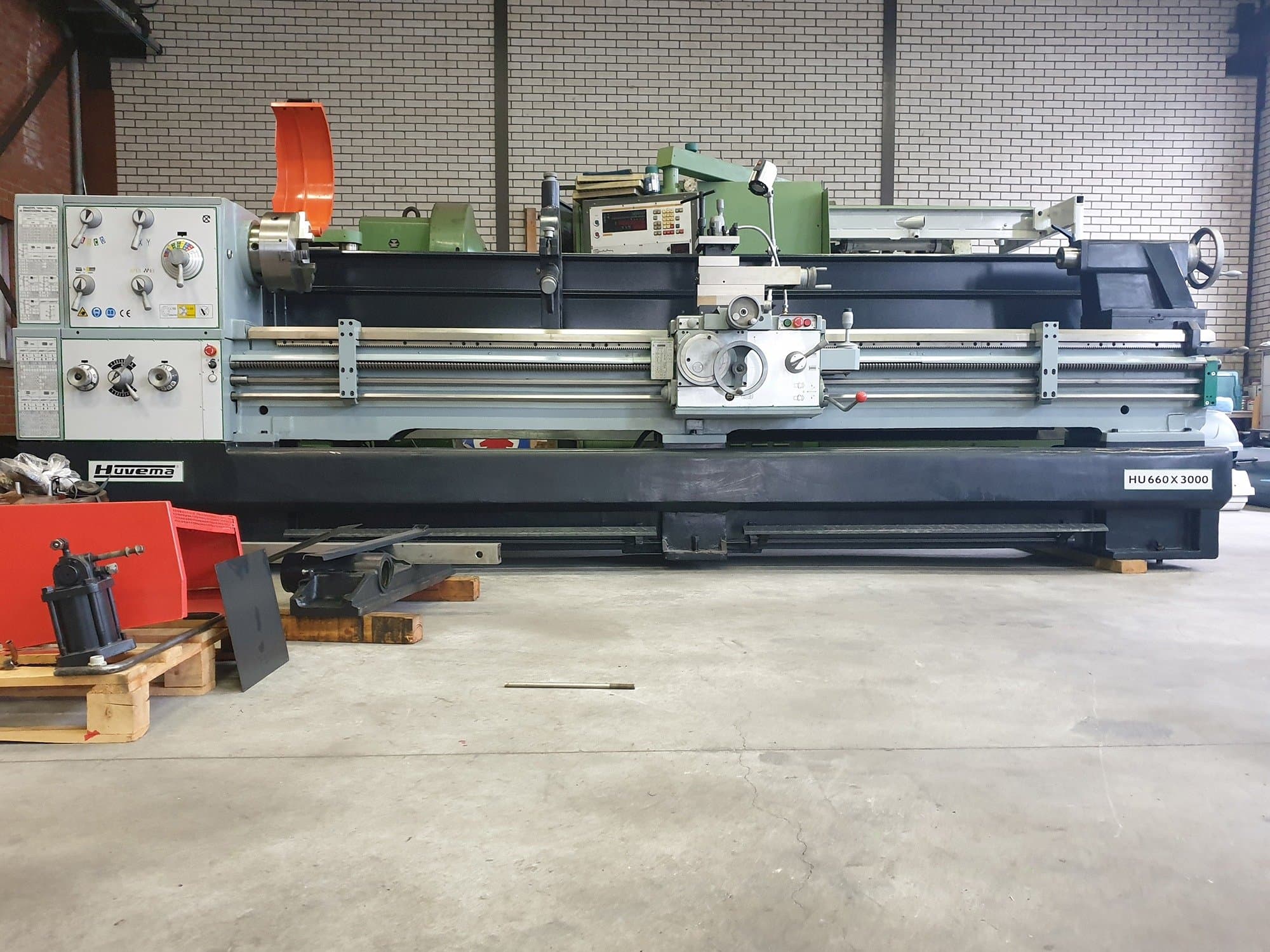

This HUVEMA HU 660 X 3000 Lathe was made in The Netherlands in 2012 and has been operative for only 25 hours. Equipped with a control unit of the same brand, this machine stands out for its wide range of movements. It incorporates a spindle bore diameter of 105 mm and a travel of tailstock sleeve of 235 mm. It includes cooling and lighting as well. It is like new, as it has been used for showroom purposes only.

Overview

brand: HUVEMA
year: 2012
MODEL: HU 660 X 3000
production hours: 25
application type: Turning
Location: Netherlands
machine type: Horizontal Turning Machine
availability: Sold

Technical Information - HUVEMA HU 660 X 3000

General Data

Measurements width: 4740 mm
Measurements depth: 1150 mm
Measurements height: 1850 mm
Machine weight: 3750 kg

Main drive

Number of spindles: 1
Spindle speed range: 25 - 1600 rpm 1/MIN

Movement

X-AXIS Movement: 660 mm
Y-AXIS Movement: 3000 mm

Workpiece

Workpiece drm: 180 mm
Workpiece x: 368 mm
Workpiece y: 230 mm

Turret

Number of turrets: 1

Tools

Max tool diameter: 90 mm

Media

Main electronic connection: 400 V

Additional equipment

- 3x Tool parts
- 1x Four Jaw Chuck
- 1x Clamping plate

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
