- GILDEMEISTER CTX 310 Lathe

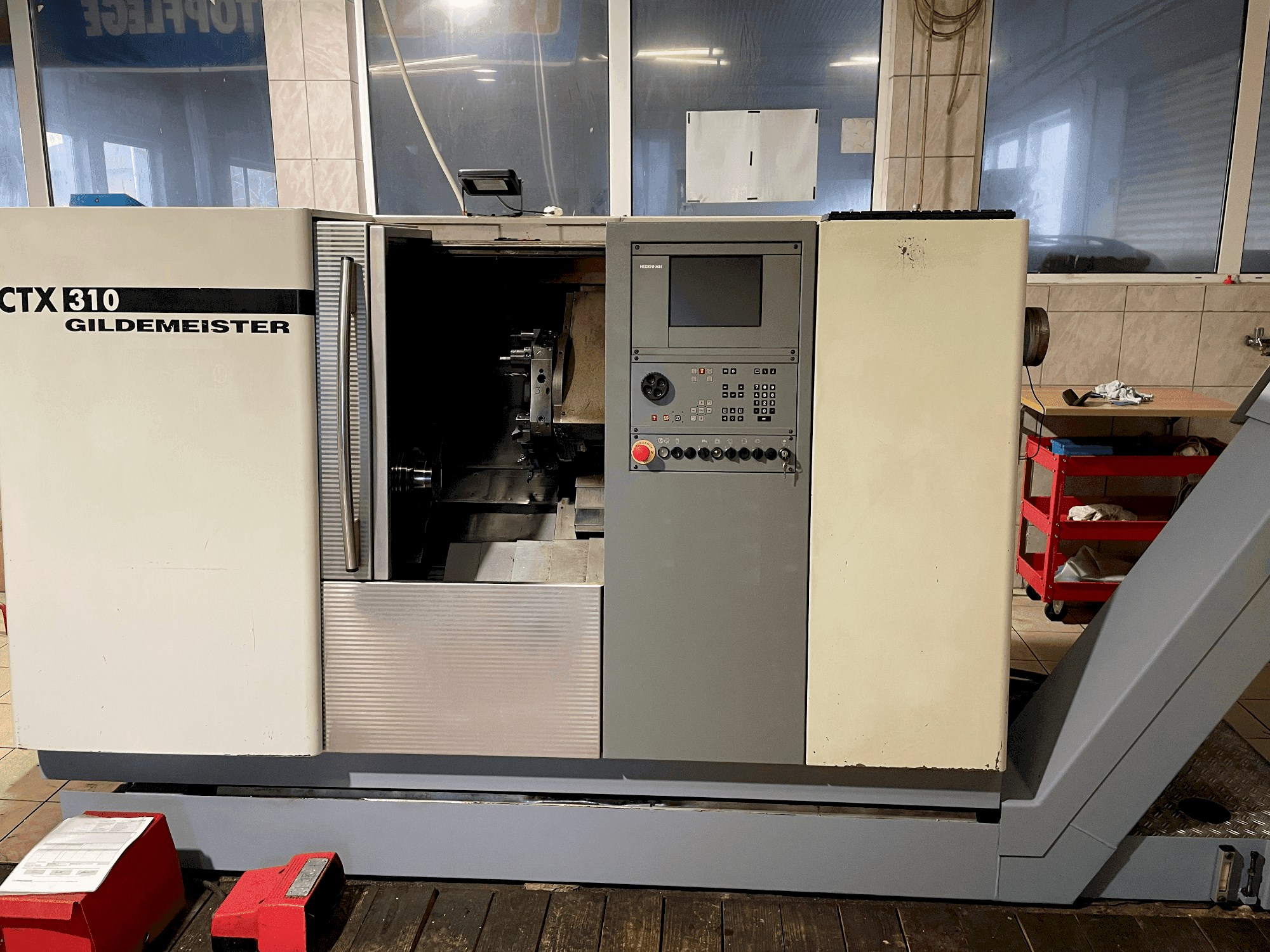

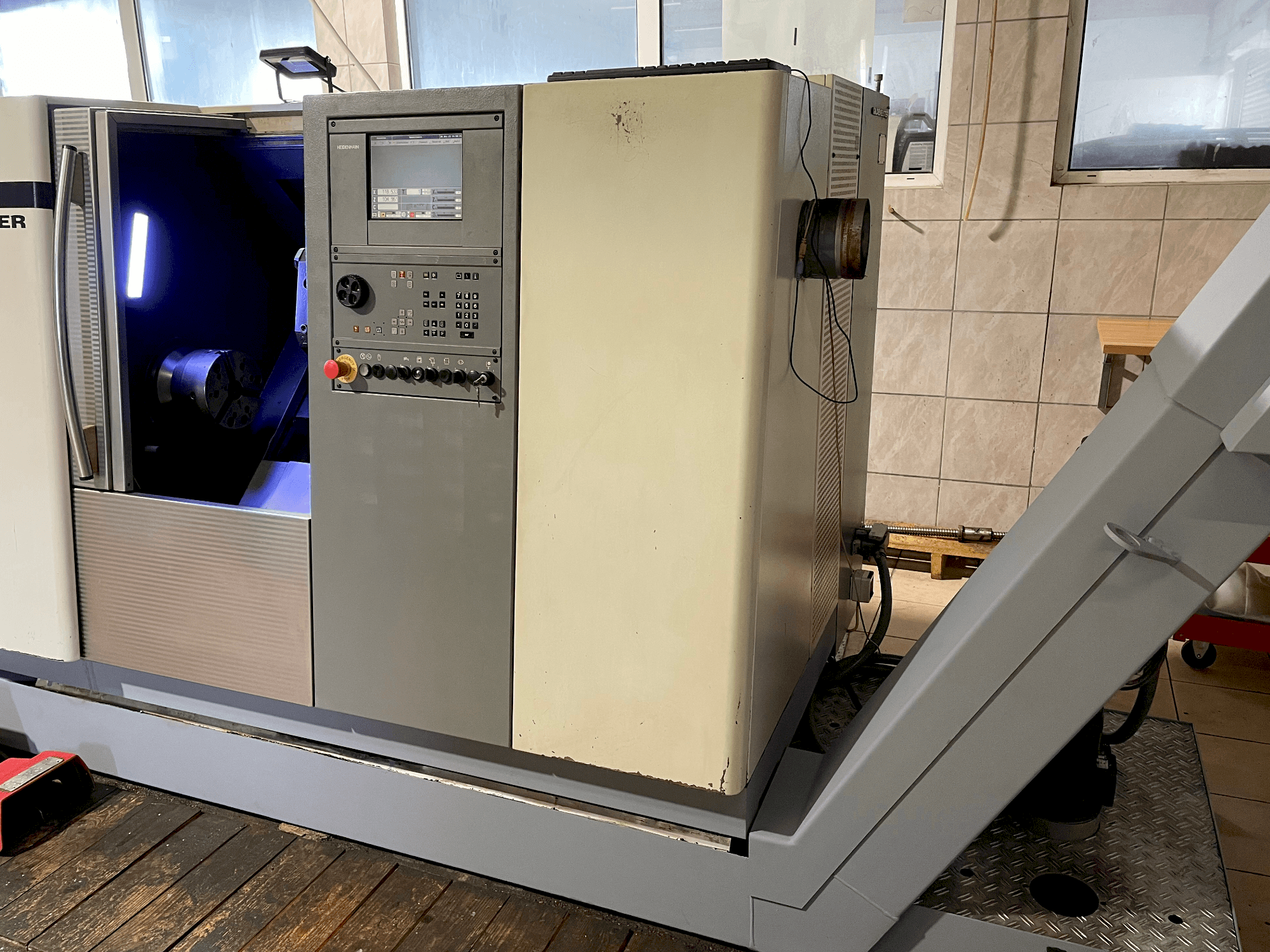

This GILDEMEISTER CTX 310 Lathe was made in 2003. It is equipped with a HEIDENHAIN DataPilot 4290 control unit. The machine has a spindle speed of 5000 rpm. Its technical condition is normal with an accuracy of 0.01 mm. Throughout the years it was continuously maintained. In 2022, the main drive card and main engine were replaced. In December 2022, the main spindle bearings were exchanged. The replacement was made with new parts. The basic machine is equipped with a hydraulic chuck. Full documentation is available.
Overview
- brand: Gildemeister
- year: 2003
- MODEL: CTX 310 V3
- production hours: 55779
- application type: Turning
- Location: Hungary
- machine type: Horizontal Turning Machine
- availability: Immediately
- control unit brand: HEIDENHAIN
Technical Information - Gildemeister CTX 310 V3
General Data
- Measurements width: 3200 mm
- Measurements depth: 1715 mm
- Measurements height: 1770 mm
Control Unit
- Brand: HEIDENHAIN
- Model: DataPilot 4290
Main drive
- Spindle speed range: 5000 1/MIN
- Spindle motor power: 21 kW
- Spindle bore: 65 mm
- Number of axis: 2
Movement
- X-AXIS Movement: 250 mm
- Z-AXIS Movement: 635 mm
Workpiece
- Workpiece weight: 110 kg
Turret
- Number of turrets: 1
- Number of tool slots: 12
- Rotating tools: Yes
- Tool taper: VDI 30
Additional Information
- Qualitative Machine Benefits:
- - Its technical condition is normal, continuously maintained. Its accuracy is 0. 01 mm.
- - In 2022, the main drive card and main engine were replaced in the machine.
- - In december 2022, the main spindle bearings were replaced in the machine. The replacement was made with new parts.
- - Machine On 55,779h // Spindle Hours 22,367h // Full documentation available // The basic machine is equipped with a hydraulic chuck
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Sergi Guardia
Payment Terms
Payment in advance
Asset Financing
