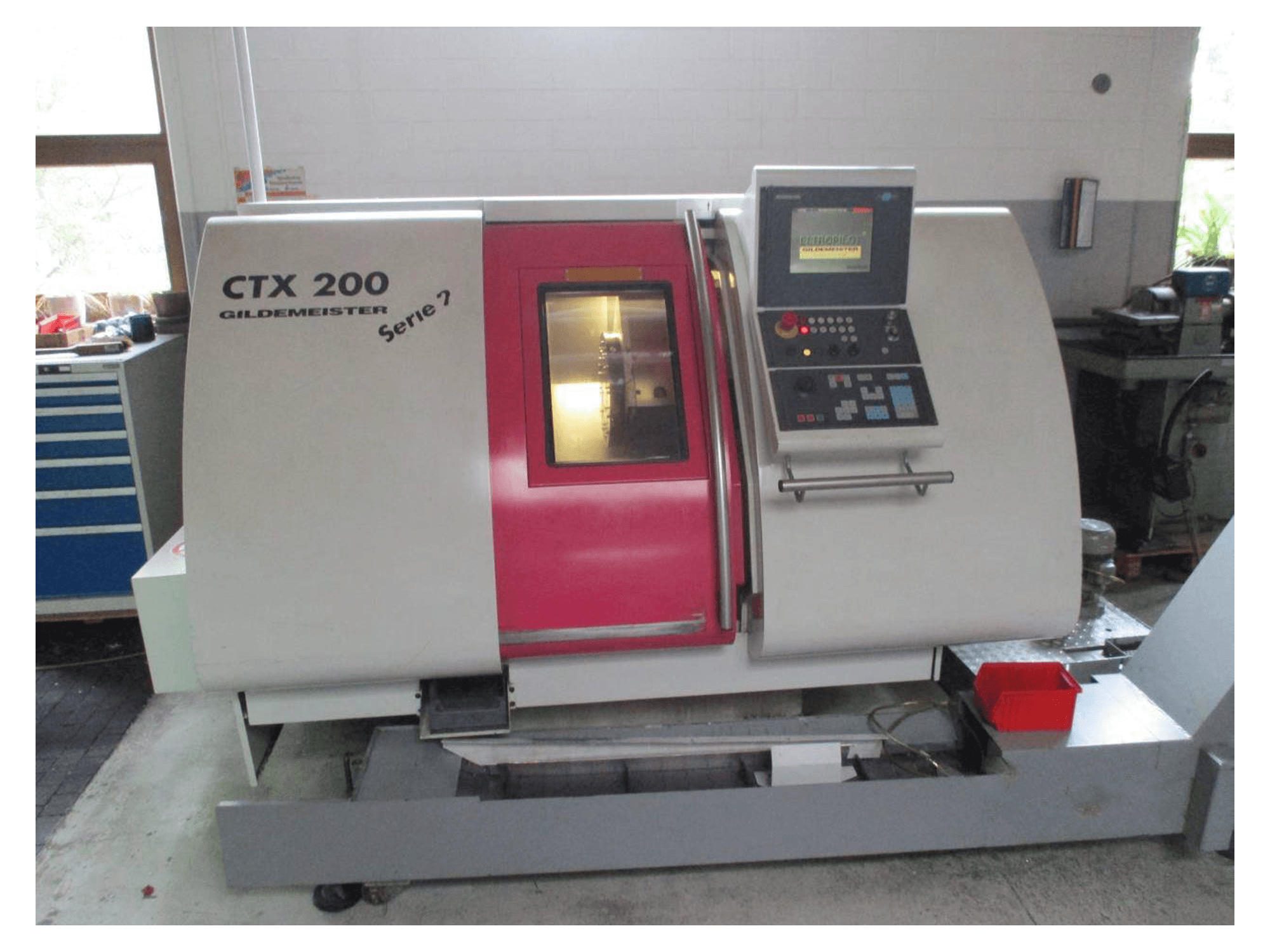

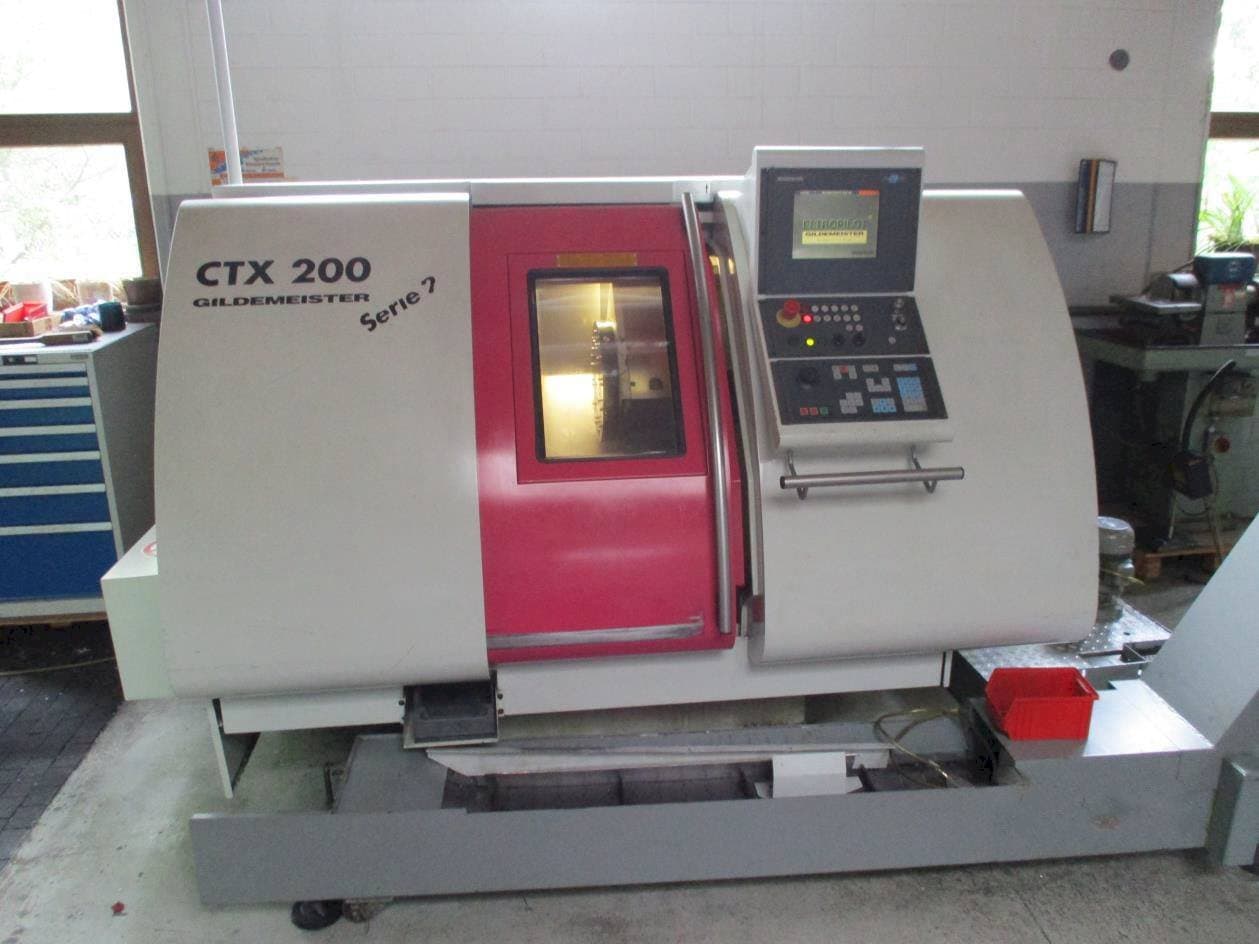

This Gildemeister CTX 200 Lathe was manufactured in the year 1999 in Germany and has 22754 production hours. It is equipped with a HEIDENHAIN CNC Pilot 3190 control unit. The machine has a spindle speed of 25-5000 rpm.
Overview
- brand: Gildemeister
- year: 1999
- MODEL: CTX 200
- production hours: 22754
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- availability: Sold
- control unit brand: HEIDENHAIN
Technical Information - Gildemeister CTX 200
Control Unit
- Brand: HEIDENHAIN
- Model: CNC Pilot 3190
Main drive
- Spindle speed range: 25-5000 1/MIN
- Spindle motor power: 7,5 kW
Movement
- X-AXIS Movement: 160 mm
- Z-AXIS Movement: 350 mm
Additional Information
- Technical Machine Benefits:
- - 1x berg three-jaw chuck Ø140
- - Turning diameter above support: 210 mm
- - Turning diameter over bed: 440 mm
- - Spindle diam. Front bearing: 85 mm
- - Spindle bore diameter: 56 mm hollow chip removal direction
- - Torque: 58 nm
- - C-axis speed: 28 rpm
- - Revolver: universal disk turret with driven tools
- - Tool holder straight shank: vdi 20
- - Tailstock diameter in the front area: 80 mm
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
