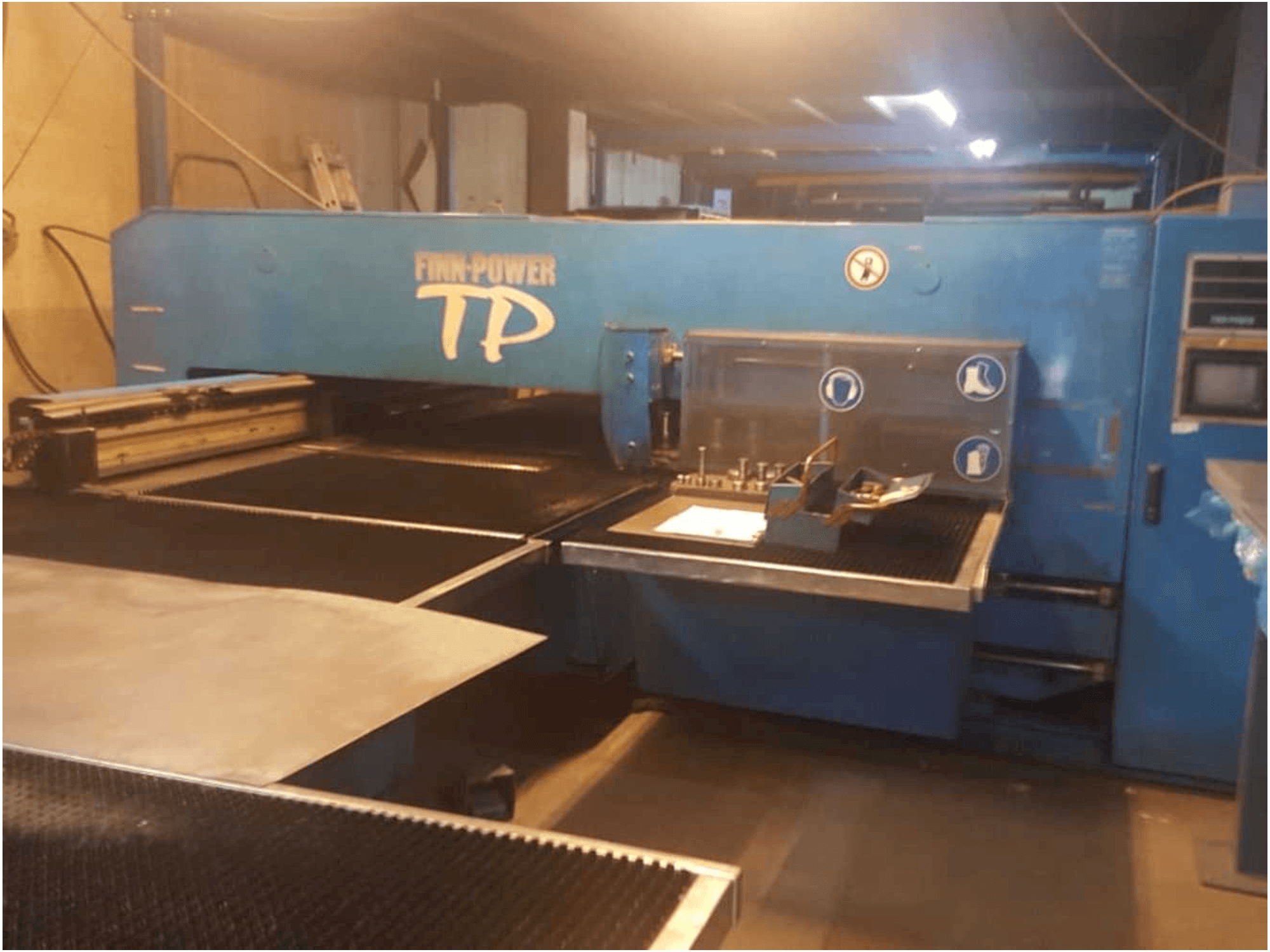

Finn-Power TP2520B1/AM Punching Machine

Show in original language

This Finn-Power TP2520B1/AM Punching Machine from Finland was manufactured in 1996. It is equipped with a Siemens Sinumerik 3N control unit. This machine can work with a punching force of 300 kN. During the past, it has mainly worked with steel up to 8 mm of thickness. This machine includes different tools of punches and dies.

Overview

brand: Finn-Power
year: 1996
MODEL: TP2520B1/AM
application type: Punching
Location: Spain
machine type: Turret Punch Press
availability: Sold
control unit brand: SIEMENS

Technical Information - Finn-Power TP2520B1/AM

General Data

Measurements width: 4900 mm
Measurements depth: 5100 mm
Measurements height: 200 mm
Machine weight: 10300 kg

Control Unit

Model: Sinumerik 3N
CNC main language: English
CNC language customizable: Yes
Brand: SIEMENS

Main drive

Punching force: 300 kN
Maximum sheet thickness: 8 mm

Movement

X-AXIS Movement: 2084 mm
Y-AXIS Movement: 1317 mm

Workpiece

Workpiece x: 2084 mm
Workpiece y: 1317 mm

Tools

Number of index: 10
Number of stations: 21

Max Material thickness

Steel: 8 mm

Media

Main electronic connection: 380 V
Power consumption: 20 kVA

Additional equipment

- Includes different tools of punches and dies

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
