➤ Used Finn-Power TP 2020 - Turret Punching Machine

Show in original language

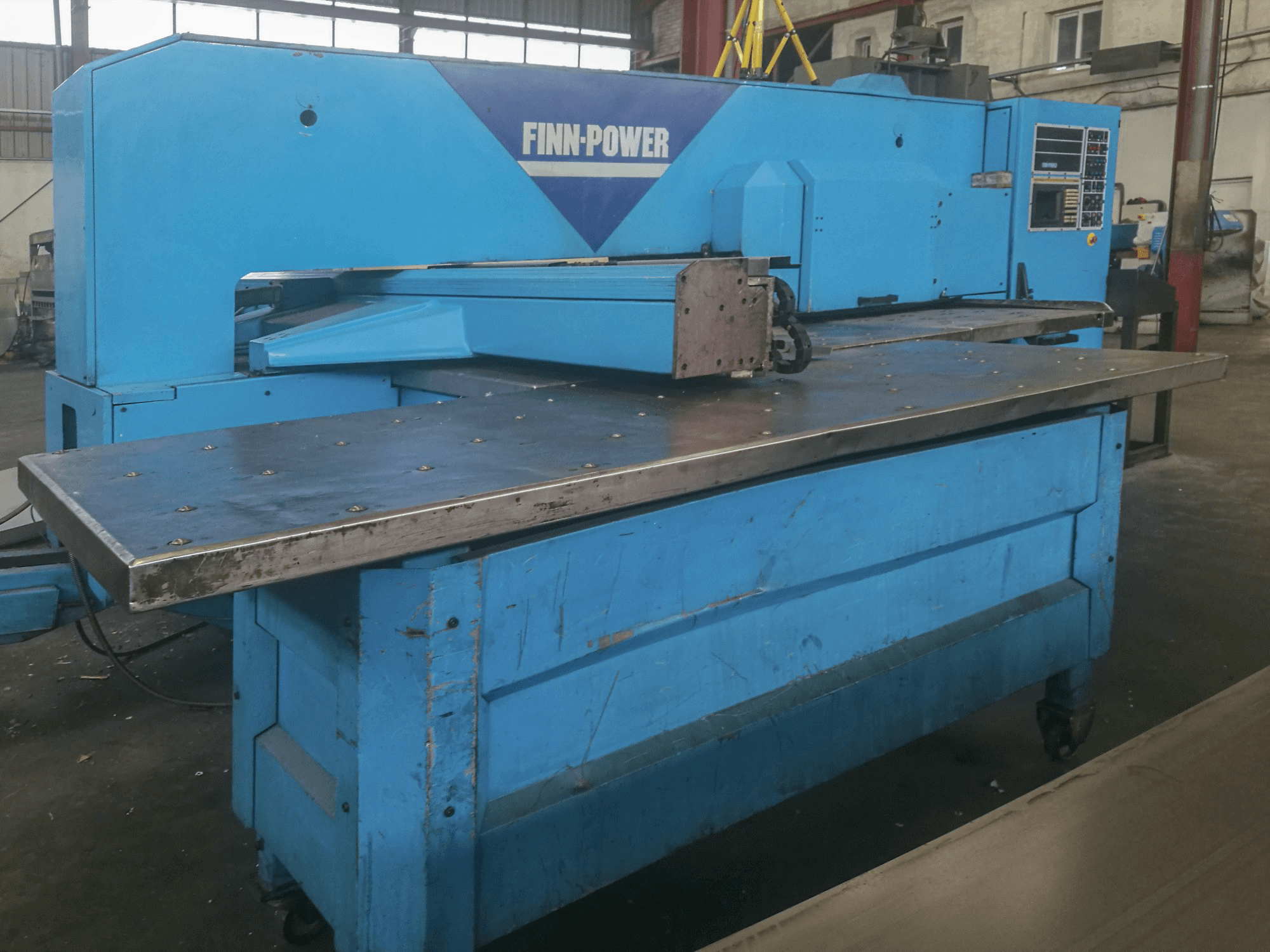

This Finn-Power TP 2020 Turret Punching Machine, which was manufactured in Finland in 1994, has a production record of approximately 35000 working hours. Equipped with a SIEMENS SINUMERIK System 3 Control unit, this model has 3 clamping jaws and covers a working area of 2000x1000 mm without repositioning of the workpiece. Additional tools are included in the delivery.

Overview

brand: Finn-Power
year: 1994
MODEL: TP 2020
production hours: 35000
application type: Punching
Location: Spain
machine type: CNC Punch Press
availability: Sold
control unit brand: SIEMENS

Technical Information - Finn-Power TP 2020

General Data

Measurements width: 4645 mm
Measurements depth: 4120 mm
Measurements height: 2000 mm
Machine weight: 8500 kg

Control Unit

Model: SINUMERIK System 3
Brand: SIEMENS

Main drive

Punching force: 300 kN

Movement

X-AXIS Movement: 2054 mm
X-AXIS Working Feed: 88 m/min
X-AXIS Rapid traverse: 115 m/min
Y-AXIS Movement: 1075 mm
Y-AXIS Working Feed: 75 m/min
Y-AXIS Rapid traverse: 115 m/min

Workpiece

Workpiece x: 2000 mm
Workpiece y: 1000 mm
Workpiece weight: 130 kg

Table

Max punching diameter: 89 mm

Tools

Number of stations: 22

Media

Main electronic connection: 400 V
Power consumption: 20 kVA
Air pressure: 6 bar
Lubrication tank: 190 L

Additional equipment

- Tools

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
