➤ Used EMCO Emcoturn E65 - Lathe For Sale

Show in original language

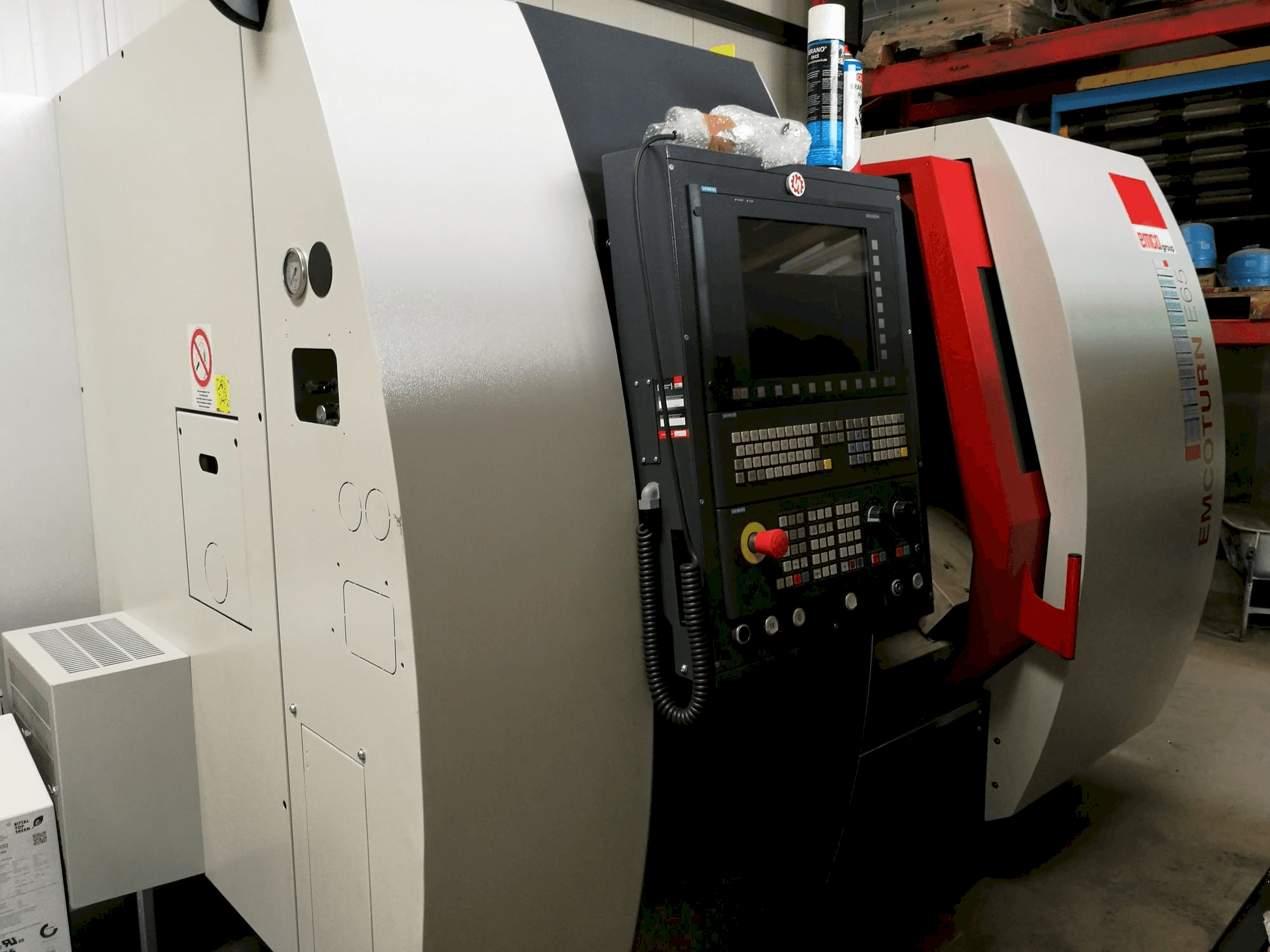

This EMCO Turn E65 Lathe was built in 2017 in Austria and has been operative for 1606 hours. Operated through a SIEMENS SINUMERIK 840DSL Control unit, this machine is equipped with a chip conveyor and a control cabinet cooling unit. It incorporates a C-Axis, as well as 1 turret for 12 driven stations.

Overview

brand: EMCO
year: 2017
MODEL: Turn E65
production hours: 1606
application type: Turning
Location: Austria
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - EMCO Turn E65

General Data

Measurements width: 4850 mm
Measurements depth: 2080 mm
Measurements height: 2050 mm
Machine weight: 6680 kg

Control Unit

Model: SINUMERIK 840DSL
CNC main language: German
CNC language customizable: Yes
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 0-5000 rpm 1/MIN

Movement

X-AXIS Movement: 260 mm
Z-AXIS Movement: 610 mm

Workpiece

Workpiece drm: 500 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12
Type of tool holder: VDI30

Media

Main electronic connection: 400 V
Power consumption: 20 kVA

Additional Information

Machine history

Material type: Steel, stainless steel

Machine Benefits

Technical Machine Benefits:
- - C-axes
- - Tool measurment
- - Chip conveyor
- - Control cabinet cooling
- - Glass scale x-axis
- - Hollow clamping cylinder with draw tube
- - Foot switch
- - 250cc 4 jaw c

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
