EMCO Hyperturn 690MC Plus B Lathe

Show in original language

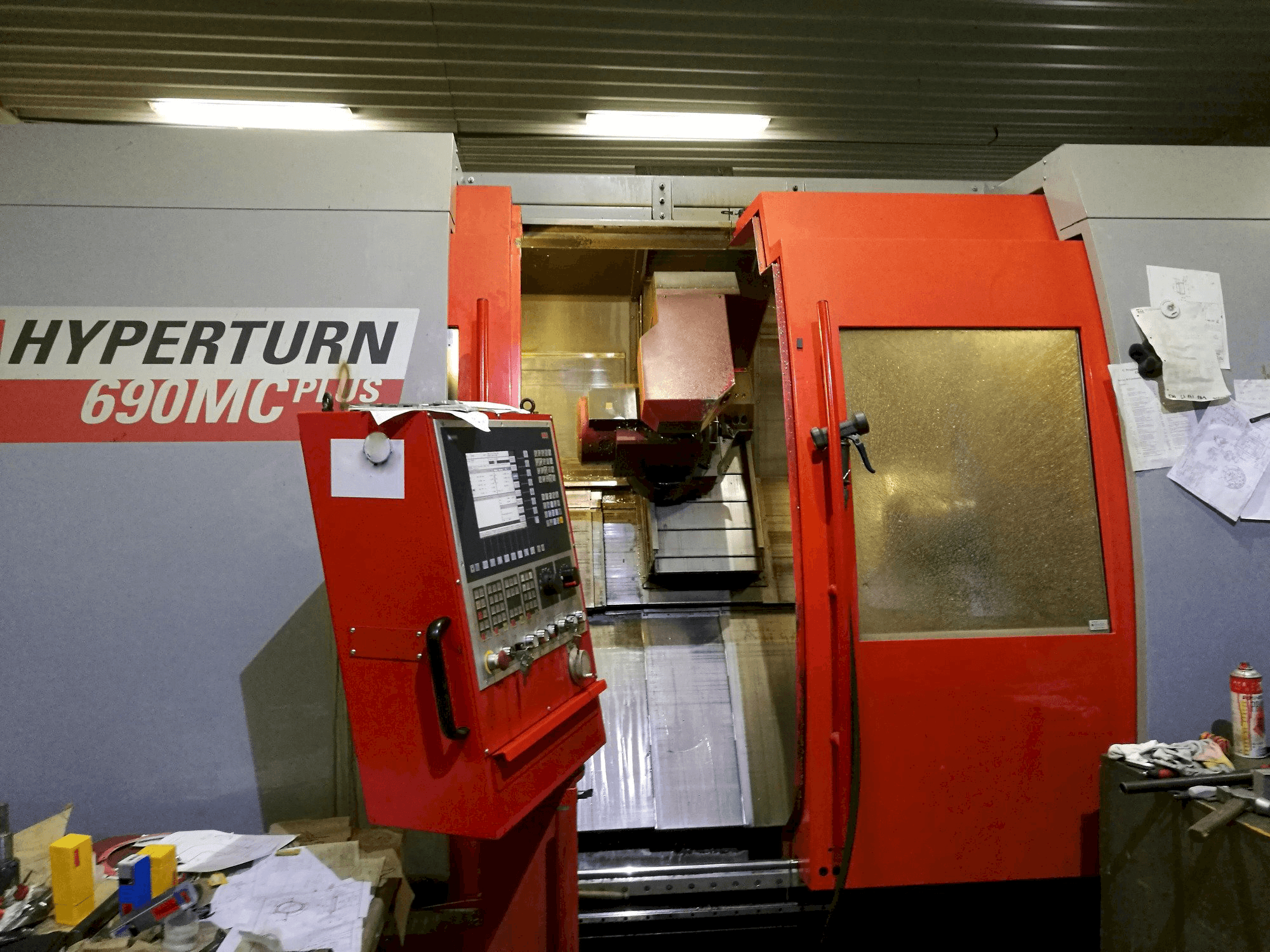

This EMCO Hyperturn 690MC Plus B Lathe was manufactured in 2011 in Italy and has been working for 6803 hours. Equipped with a Siemens 840D Powerline control unit, this machine presents a perfectly good maintained status.

Overview

brand: EMCO
year: 2011
MODEL: Hyperturn 690MC Plus B
production hours: 6803
application type: Turning
Location: Slovakia
machine type: Turn-Mill Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - EMCO Hyperturn 690MC Plus B

General Data

Measurements width: 7203 mm
Measurements depth: 4324 mm
Measurements height: 2754 mm
Machine weight: 15500 kg

Control Unit

Model: 840D Powerline
Brand: SIEMENS

Main drive

Number of spindles: 2

Movement

X-AXIS Movement: 490 mm
Y-AXIS Movement: 200 mm
Z-AXIS Movement: 1110 mm
C-AXIS Movement: 0.001 degrees MM

Workpiece

Workpiece weight: 1200 kg

Turret

Number of turrets: 1

Tools

Slots in storage: 48
Type of tool holder: Capto C5

Media

Power consumption: 86 kVa

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed 700 mm
- - Turning diameter max. 520 mm
- - Length between spindles 1500 mm
- - Tool turret 12 driven tool stations - vdi 40 quick change system
- - Axes x1/x2 stroke 490/280 mm
- - Axes z1/z2 stroke 1110/1090 mm
- - Main spindle bar capacity 95 mm
- - Main spindle/sub spindle power 54/25 kw
- - Main spindle/subspindle rpm 3200
- - Milling head rpm 7000
Qualitative Machine Benefits:
- - Low hours
- - Emco tool monitoring system
- - Main hydraulic brake 1100 nm
- - Software option for gear milling

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
