Doosan Puma MX2100ST Lathe

Show in original language

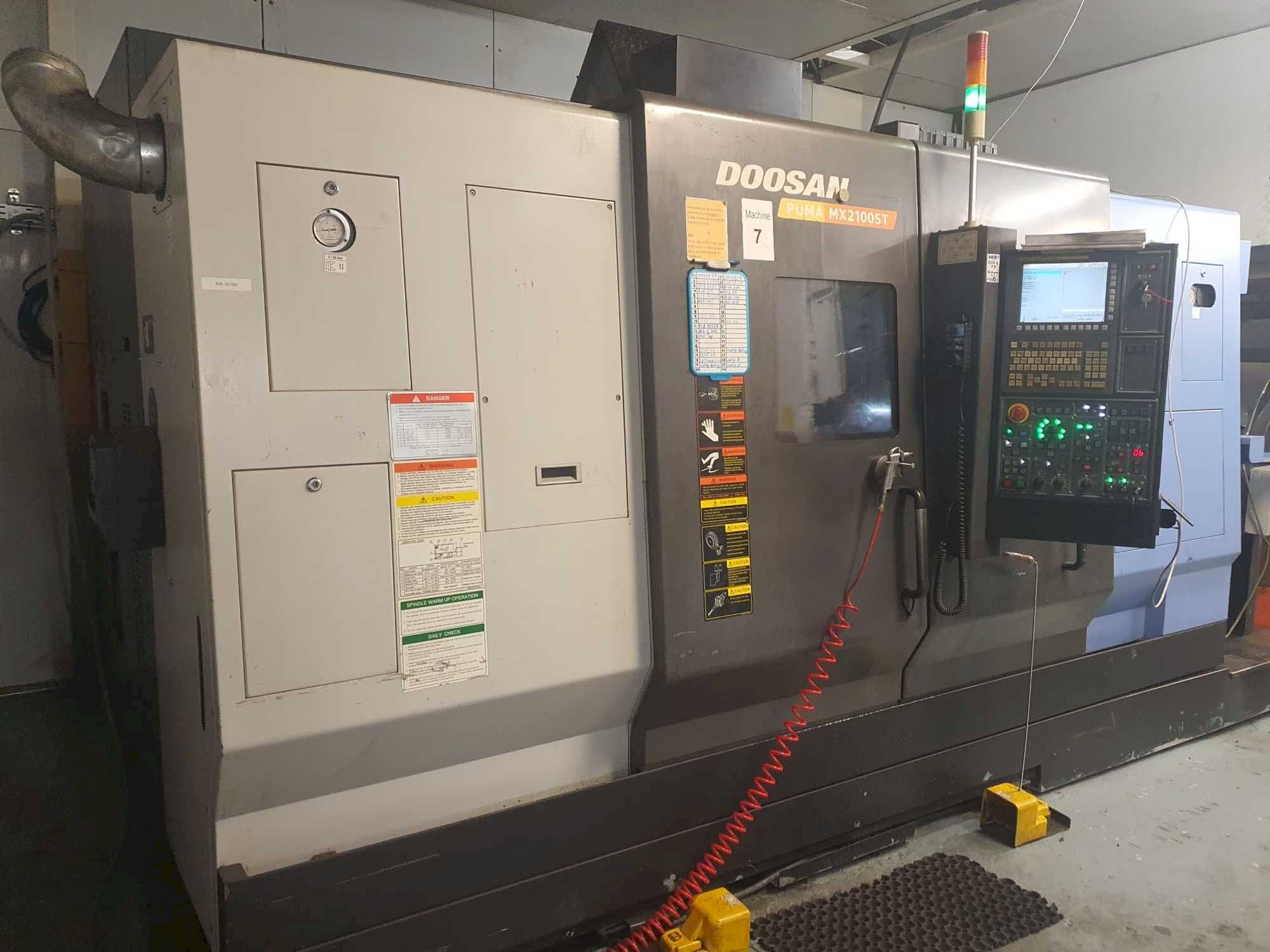

This Doosan MX2100ST Lathe was built in South Korea in the year 2008 and has 9950 cutting hours. It is equipped with a FANUC 31iA control unit. This 9 axis machine can work with two spindles speed up to 5000 rpm. Includes a Selection of tool holders for the lower turret.

Overview

brand: DOOSAN
year: 2008
MODEL: Puma MX2100ST
production hours: 9950
application type: Turning
Location: Ireland
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN Puma MX2100ST

General Data

Measurements width: 4825 mm
Measurements depth: 2515 mm
Measurements height: 2795 mm
Machine weight: 12000 kg

Control Unit

Model: 31iA
CNC main language: English
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 2
Spindle speed range: 5000 1/MIN
Number of axis: 9

Movement

X-AXIS Movement: 564 mm
Y-AXIS Movement: 170 mm
Z-AXIS Movement: 1050 mm
A-AXIS Movement: 1050 mm
B-AXIS Movement: +/-120 mm
C-AXIS Movement: 360 MM

Workpiece

Workpiece drm: 540 mm
Workpiece z: 1020 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 40
Max tool diameter: 120 mm
Max tool length: 300 mm
Type of tool holder: Capto C6

Media

Main electronic connection: 400 V
Power consumption: 69,35 kVA
Chip conveyor: Yes

Additional equipment

- Sub Spindle
- Lower Turret
- 2 x SMW Autoblok 8" Chucks
- Selection of tool holders for lower turret

Additional Information

Machine history

Material type: Mild steel
End product: Sub contract machined parts
Industries: Sub contract machining

Machine Benefits

Technical Machine Benefits:
- - 9 axis multi tasking machine (x1,x2,y,z1,z2,a, c1,c2,b)
- - Lower driven tool turret
- - B axis milling spindle

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
