DOOSAN - PUMA 3050 LMSI-MIL-DOO-2024-00001

Name: DOOSAN PUMA 3050 LM
Brand: DOOSAN
SKU: SI-MIL-DOO-2024-00001
Price: 10572950 INR
Availability: InStock

Rs. 10,572,950

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DOOSAN PUMA 3050 LM For sale | gindumac.com

Show in original language

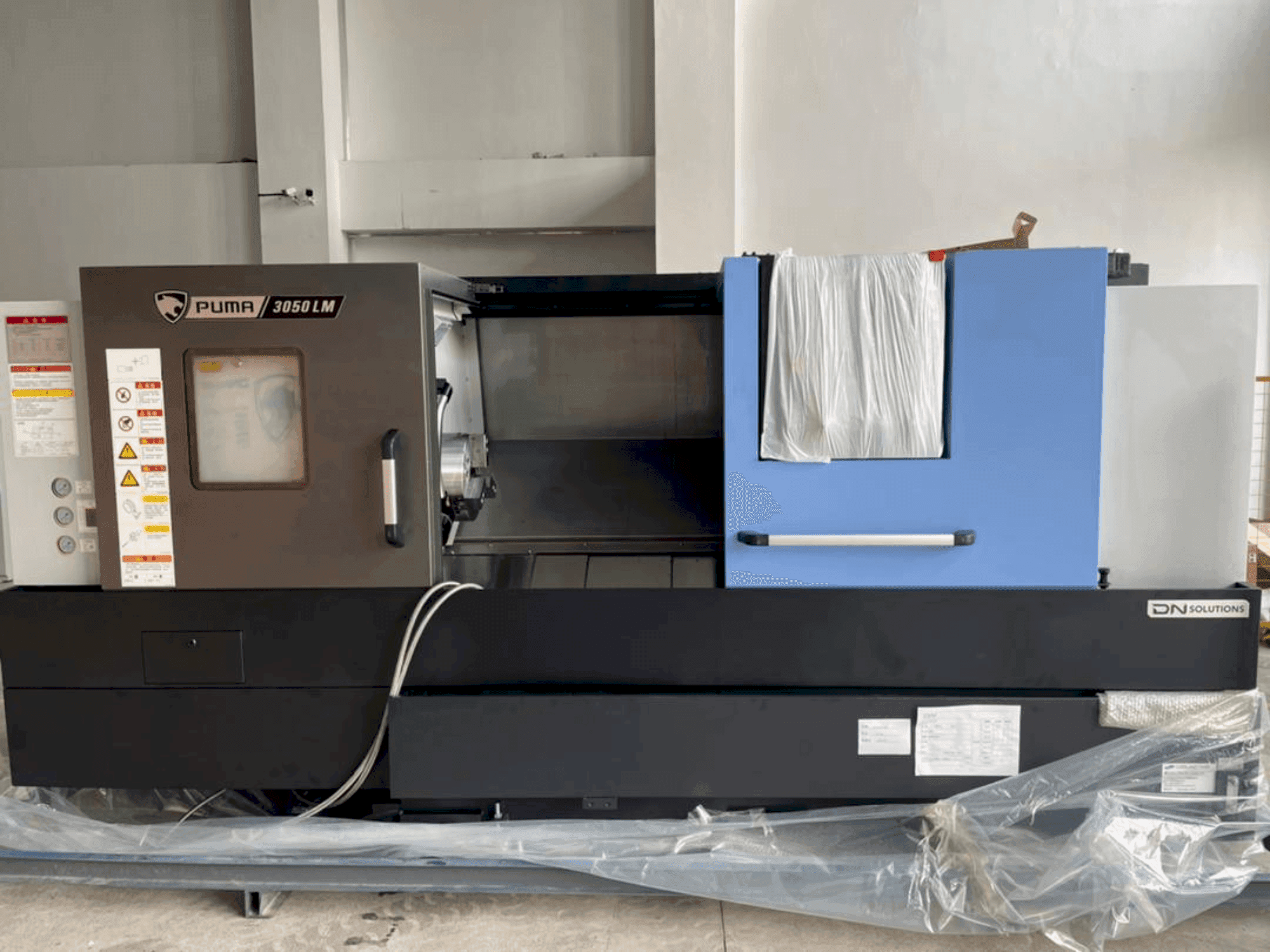

This 3-axis DOOSAN PUMA 3050 LM lathe was manufactured in 2024. It features a robust 12-position BMT55 Servo Power Turret, a powerful main spindle motor at 18.5/15 kW, a spindle speed of 3.000 rpm, and a milling spindle speed of 5000 rpm. The machine includes a 12 hydraulic chuck, chip conveyor, and a FANUC - 0iPLUS control system. Ideal for precision, the DOOSAN PUMA 3050 LM machine we have for sale represents a significant opportunity. Contact us for further details regarding this turning machine.

Overview

brand: DOOSAN
year: 2024
MODEL: PUMA 3050 LM
application type: Turning
Location: Slovenia
machine type: Turn-Mill Centre
availability: Immediately
control unit brand: FANUC

Technical Information - DOOSAN PUMA 3050 LM

General Data

Measurements width: 1630 MM
Measurements depth: 3735 MM
Measurements height: 1720 MM
Machine weight: 5900 KG

Control Unit

Model: 0iPLUS
Brand: FANUC

Main drive

Spindle speed range: 5000 1/MIN
Spindle motor power: 18.5/15 kW
Number of axis: 3

Tail Stock

Pinol diameter: 100 mm
Pinol tool taper: MT#5

Tools

Slots in storage: 12

Media

Chip conveyor: Yes

Additional equipment

- 12 Hydraulic Chuck
- 12-position BMT55 Servo Power Turret
- BMT 55 Power Tool Holder (Axial and Radial)
- Box Guideway
- Hydraulic Power Unit
- 30 Integral Inclined Bed
- Tool Kit
- Tool Holders & Boring Sleeve
- Lubrication Equipment
- Signal Tower (Yellow, Red, Green)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Milling spindle motor power: 5. 5 kw
- - Tool size (w x h): 25 x 25 mm
- - Boring bar size: 40 mm
- - Efficient tool management with 12-position bmt55 servo power turret.
- - Advanced control system ensures precision and reliability.
Qualitative Machine Benefits:
- - Stability and precision with box guideway and integral inclined bed.
- - Enhanced safety features with front door interlock and signal tower.

Extra information

- Additional equipment: Hand Tool Kit Including Small Tools for Operations, X/Z-Axis Milling, Holder, Automatic Power Off, Oil Skimmer, Front Door Interlock, Leveling Jack Screw & Plates

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
