- Doosan LYNX220LYA Lathe machine

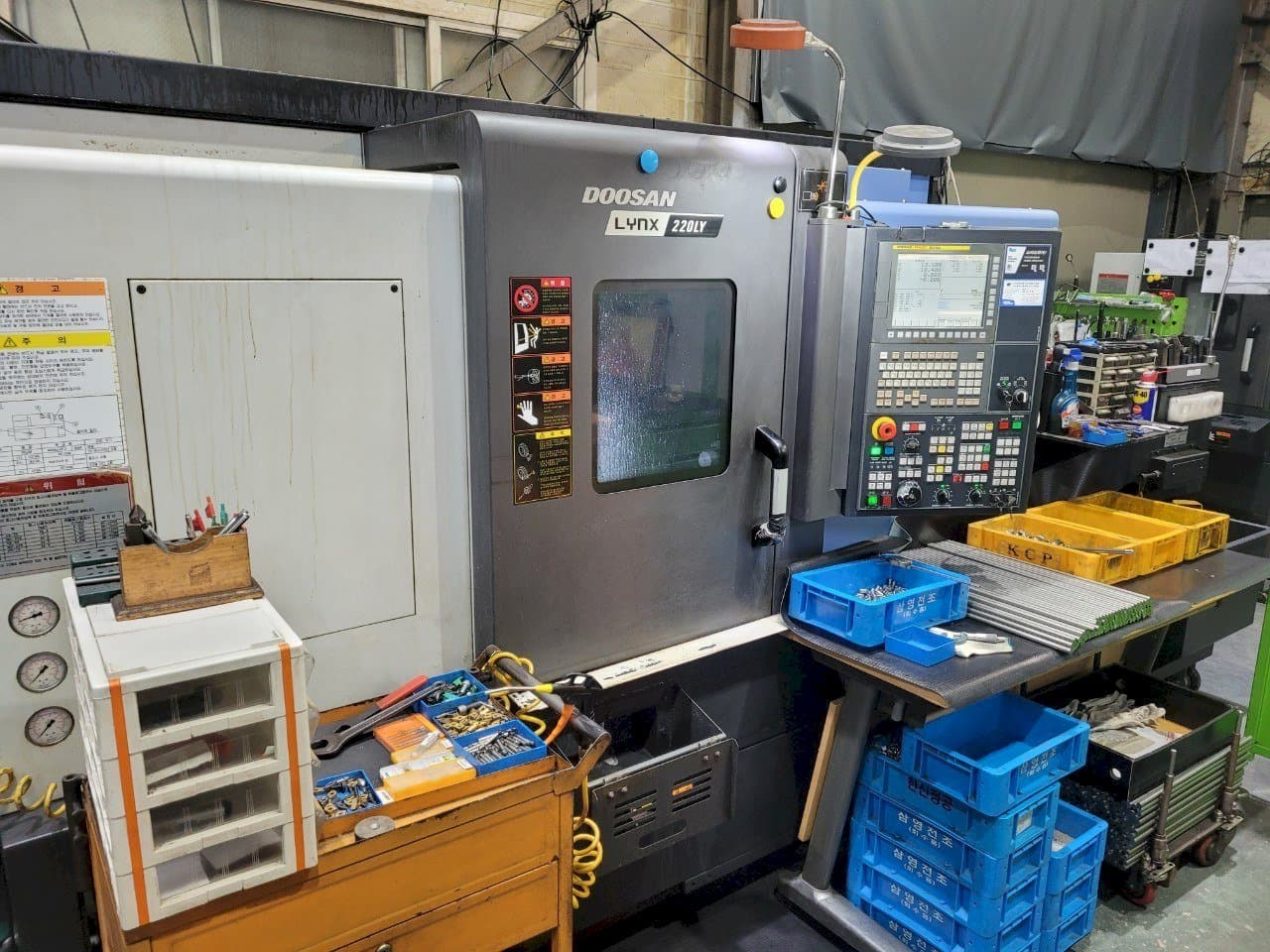

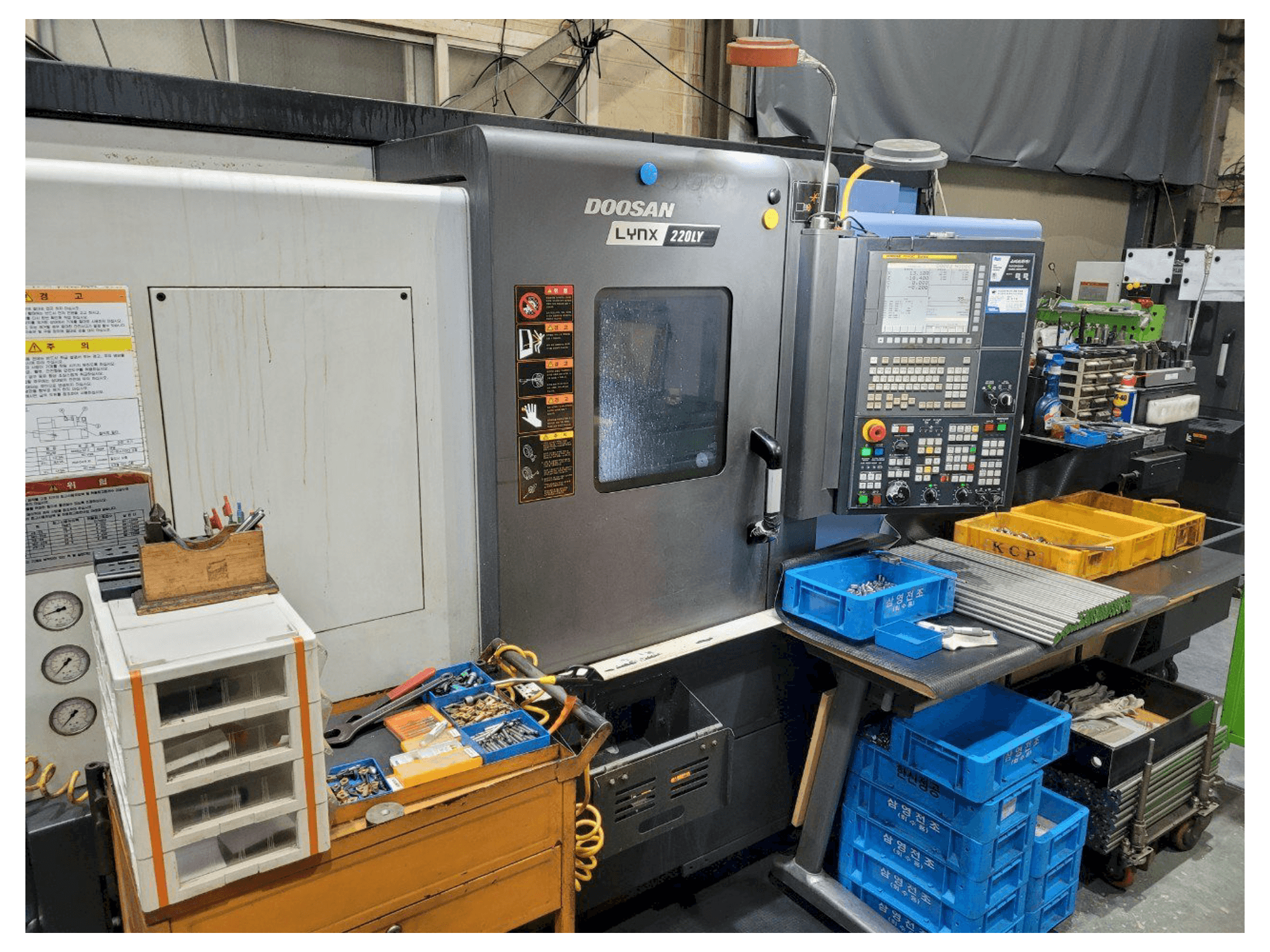

This Doosan LYNX220LYA Lathe machine was manufactured in the year 2017 in Korea. It is equipped with a Fanuc i control unit. This machine works with a spindle speed up to 6000 rpm and a main chuck size of 6 inch. Includes live tools 3 straight, 3 angular.
Overview
- brand: DOOSAN
- year: 2017
- MODEL: LYNX220LYA
- application type: Turning
- Location: South Korea
- machine type: Turn-Mill Centre
- availability: Sold
Technical Information - DOOSAN LYNX220LYA
Controller
- Brand: FANUC-i
Main drive
- Spindle speed range: 6000 1/MIN
Movement
- X-AXIS Movement: 205 mm
- Y-AXIS Movement: 105 mm (±52.5)
- Z-AXIS Movement: 560 mm
Turret
- Number of turrets: 12 ea
Media
- Chip conveyor: Yes
Additional Information
- Technical Machine Benefits:
- - Main chuck size 6 inch
- - 220v, 60hz
- - Live tools 3 straight, 3 angular
- - Tail stock
- - Q-setter
- - Lm guideway type
- - Call right (led 3 step)
- - Mpg handle
- Qualitative Machine Benefits:
- - Manual books
- - Ce mark
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
