Doosan Lynx 300 Lathe

Show in original language

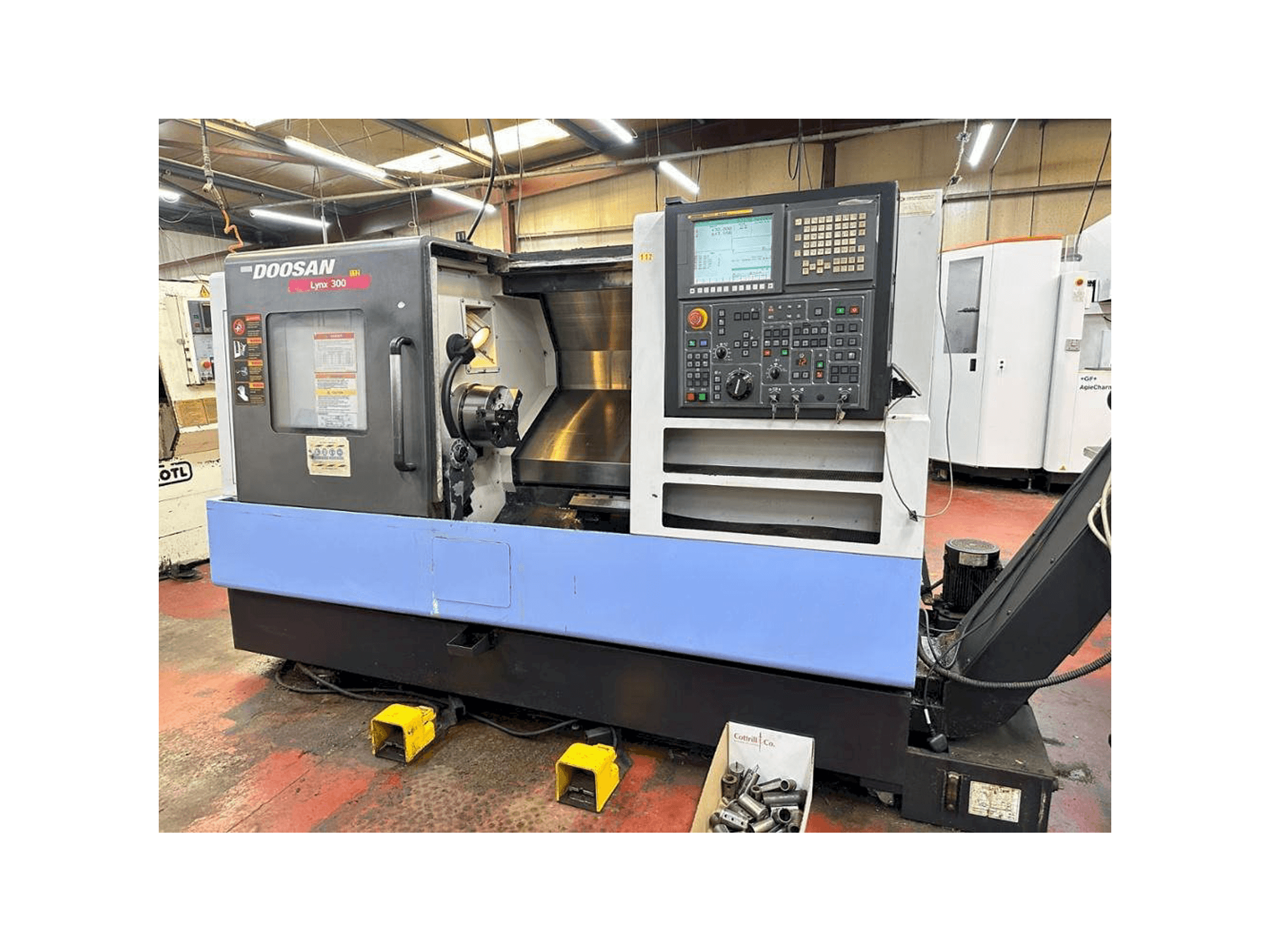

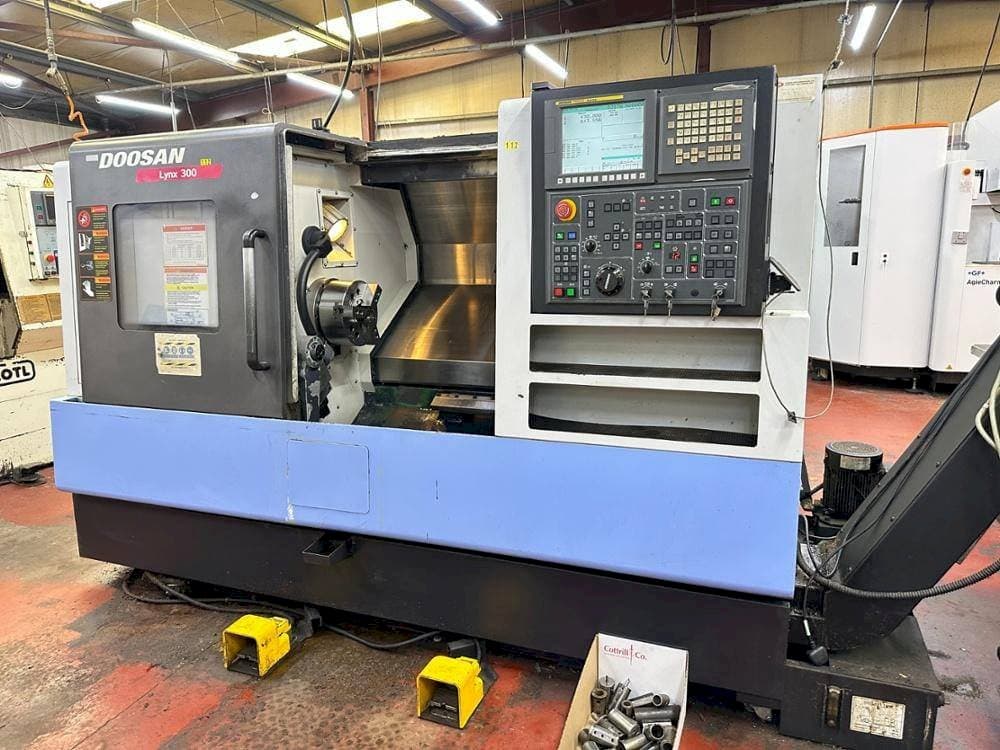

This Doosan Lynx 300 Lathe was manufactured in the year 2011 in South Korea. It is equipped with a Fanuc Series Oi control unit and has 2 axis. The machine has a spindle speed of 3500 rpm.

Overview

brand: DOOSAN
year: 2011
MODEL: Lynx 300
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN Lynx 300

General Data

Measurements width: 3035 mm
Measurements depth: 1785 mm
Measurements height: 1715 mm
Machine weight: 4000 kg

Control Unit

Model: Series Oi
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 3500 1/MIN
Number of axis: 2

Movement

X-AXIS Movement: 255 mm
Z-AXIS Movement: 790 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed 651 mm, over carriage 461 mm
- - Maximum cutting diameter: 450 mm
- - Maximum cutting length: 765 mm
- - Bar capacity 76 mm
- - Spindle motor power 15/11 kw
- - Spindle bore: 86 mm
- - Tailstock quill diameter: 80 mm, stroke 120 mm, taper mt #4
- - Rapid feedrates:xz: 24 x 30m/min
- - Swarf conveyor, tool setter, interlocked guards
- - 3 jaw chuck 12"
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
