Doosan Lynx 220GA Lathe

Show in original language

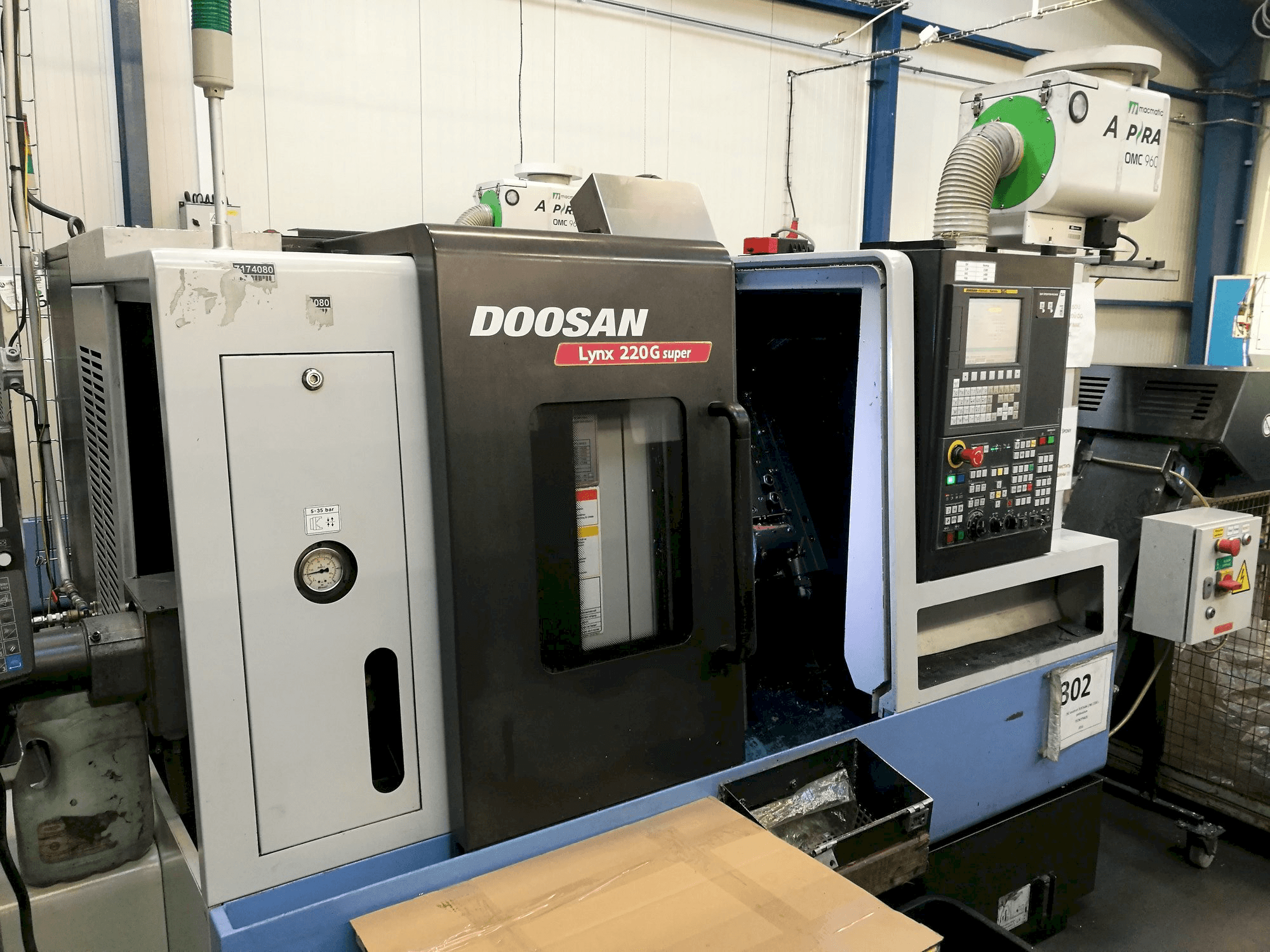

This Doosan Lynx 220GA Lathe was produced in 2016 in South Korea and has a production record of 10486 hours, from which 5666 are spindle hours. Equipped with a FANUC 0i-TD Control unit, this machine has mainly worked with aluminum during the past.

Overview

brand: DOOSAN
year: 2016
MODEL: Lynx 220GA
production hours: 10486
application type: Turning
Location: Czech Republic
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN Lynx 220GA

General Data

Measurements width: 2327 mm
Measurements depth: 1600 mm
Measurements height: 1995 mm
Machine weight: 2600 kg

Control Unit

Model: 0i-TD
CNC main language: Czech
Brand: FANUC
CNC language customizable: Yes

Main drive

Number of spindles: 1
Spindle speed range: 6000 rpm 1/MIN

Movement

X-AXIS Movement: 450 mm
Y-AXIS Movement: 330 mm

Workpiece

Workpiece x: 590 mm
Workpiece z: 322 mm
Workpiece weight: 70 kg

Tools

Slots in storage: 4

Media

Power consumption: 23.68 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional equipment

- Hydraulic chuck (extra cost)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
