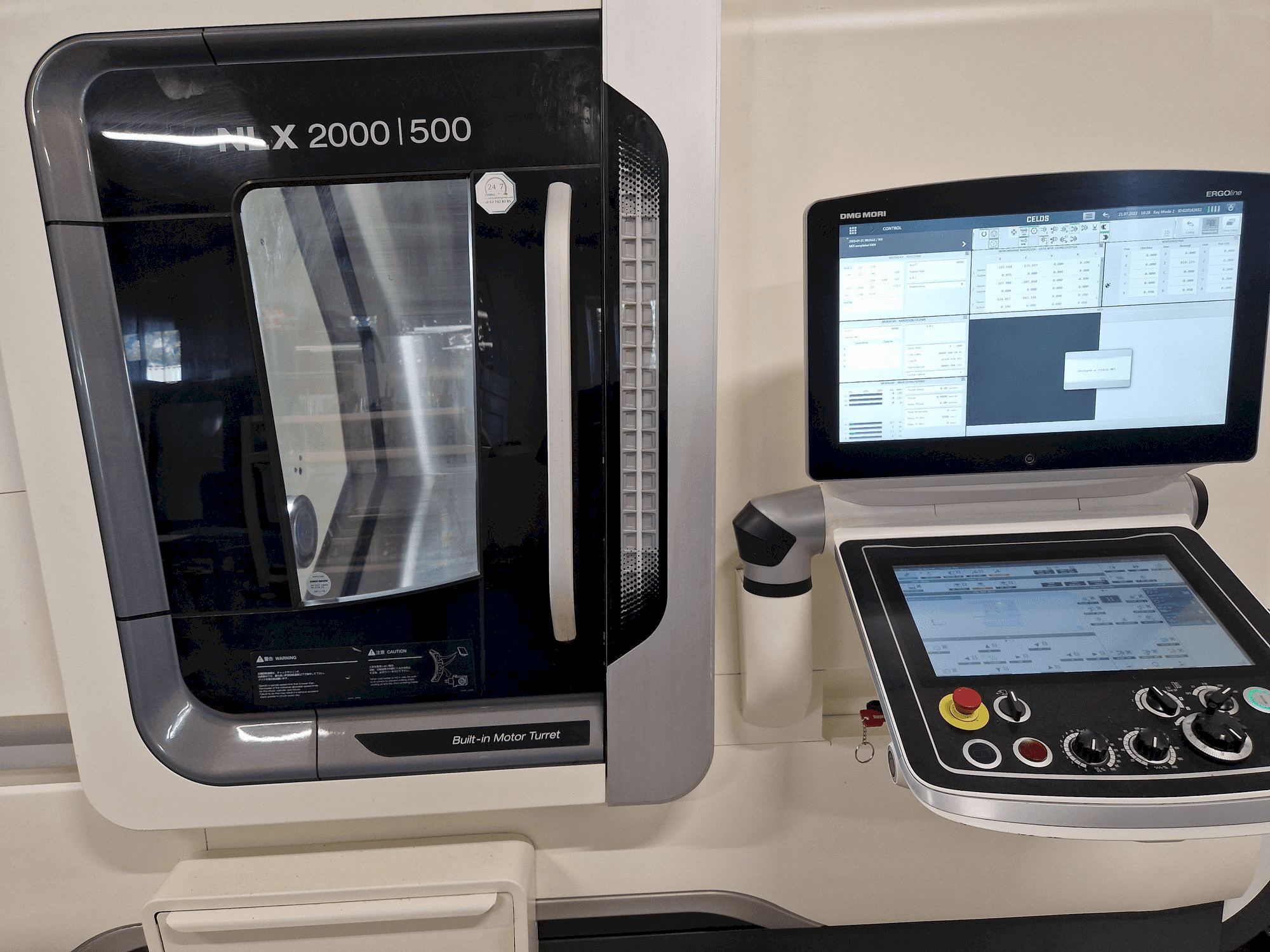

DMG - NLX2000SY-500PL-TUR-DMG-2017-00002

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Swing over bed: 923. 8 mm
  • - Swing over cross slide: 755 mm
  • - Maximum turning diameter: 366 mm, standard turning diameter: 271 mm , maximum turning length: 510 mm
  • - Bar work capacity: 65 mm
  • - No tools in the turret: 12 pcs
  • - Tailstock travel: 564 mm
  • - Spindle 1 holder: kitagawa 8-inch - bb208a621
  • - Spindle 2 holder: kitagawa 6-inch - b206a521f
  • - Chip conveyor (right-side ejection, hinged type)
  • - High-pressure coolant system (max. Pressure 0. 8 mpa, power: 800/1100 w)
• Qualitative Machine Benefits:
  • - Lns bar feeder model: qls80 s2 (2017)
  • - Rod feeder connection (lns) (multiple)
  • - Increased chip flushing capacity and tool and workpiece cooling
  • - Air purge for the spindle (main spindle)
  • - Workpiece ejector for counter-spindle
  • - Setting unit mm
  • - Milling of "islands" and open "pockets"
  • - Hsc (high-speed cutting) milling cycle
  • - Standard workpiece unloader (built-in type)
  • - Slide guides in all axes
