DMG MORI CLX 350 Lathe

Show in original language

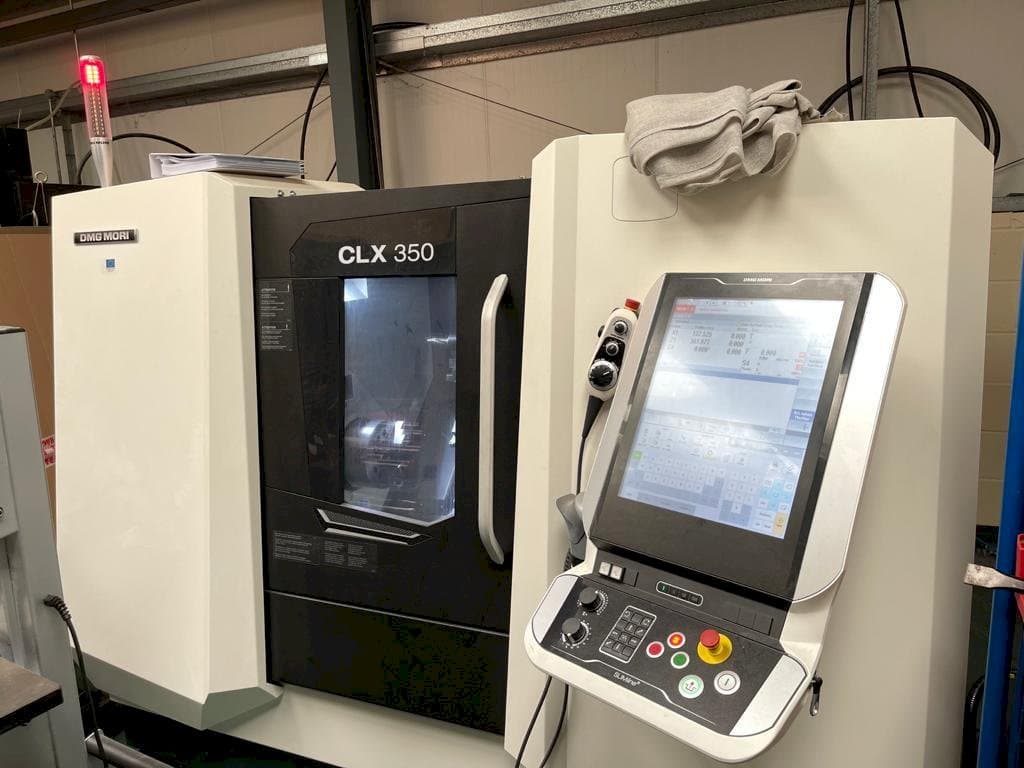

This DMG MORI CLX 350 Lathe was built in Poland in the year 2018. This 2 axis machine has been working for only 1639 hours. It is equipped with a Siemens DMG MORI SLIMLINE control unit. This machine can perform with a spindle speed up to 5000 rpm. It is in very good working condition.

Overview

brand: DMG MORI
year: 2018
MODEL: CLX 350
production hours: 1639
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: Siemens

Technical Information - DMG MORI CLX 350

General Data

Measurements width: 3400 mm
Measurements depth: 2271 mm
Measurements height: 2208 mm
Machine weight: 4200 kg

Control Unit

Brand: Siemens
Model: DMG MORI SLIMLINE

Main drive

Number of spindles: 1
Spindle speed range: 5000 1/MIN
Spindle motor power: 16.5/11 kW
Number of axis: 2

Movement

X-AXIS Movement: 242,5 mm
X-AXIS Rapid traverse: 36 m/min
Z-AXIS Movement: 540 mm
Z-AXIS Rapid traverse: 36 m/min

Turret

Number of turrets: 1

Tools

Slots in storage: 12
Type of tool holder: VDI 30

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Swing 580 mm
- - Swing over the cross-slide 360 mm
- - Max. Cutting diameter 320 mm
- - Bar capacity 51 mm
- - Chuck size 200 mm
- - Tailstock body travel 550 mm
- - Tailstock taper mt #4
- - Tool setter, swarf conveyor, coolant
Qualitative Machine Benefits:
- - Very good condition
- - Low hours

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
