CAZENEUVE Optimax 360 Lathe

Show in original language

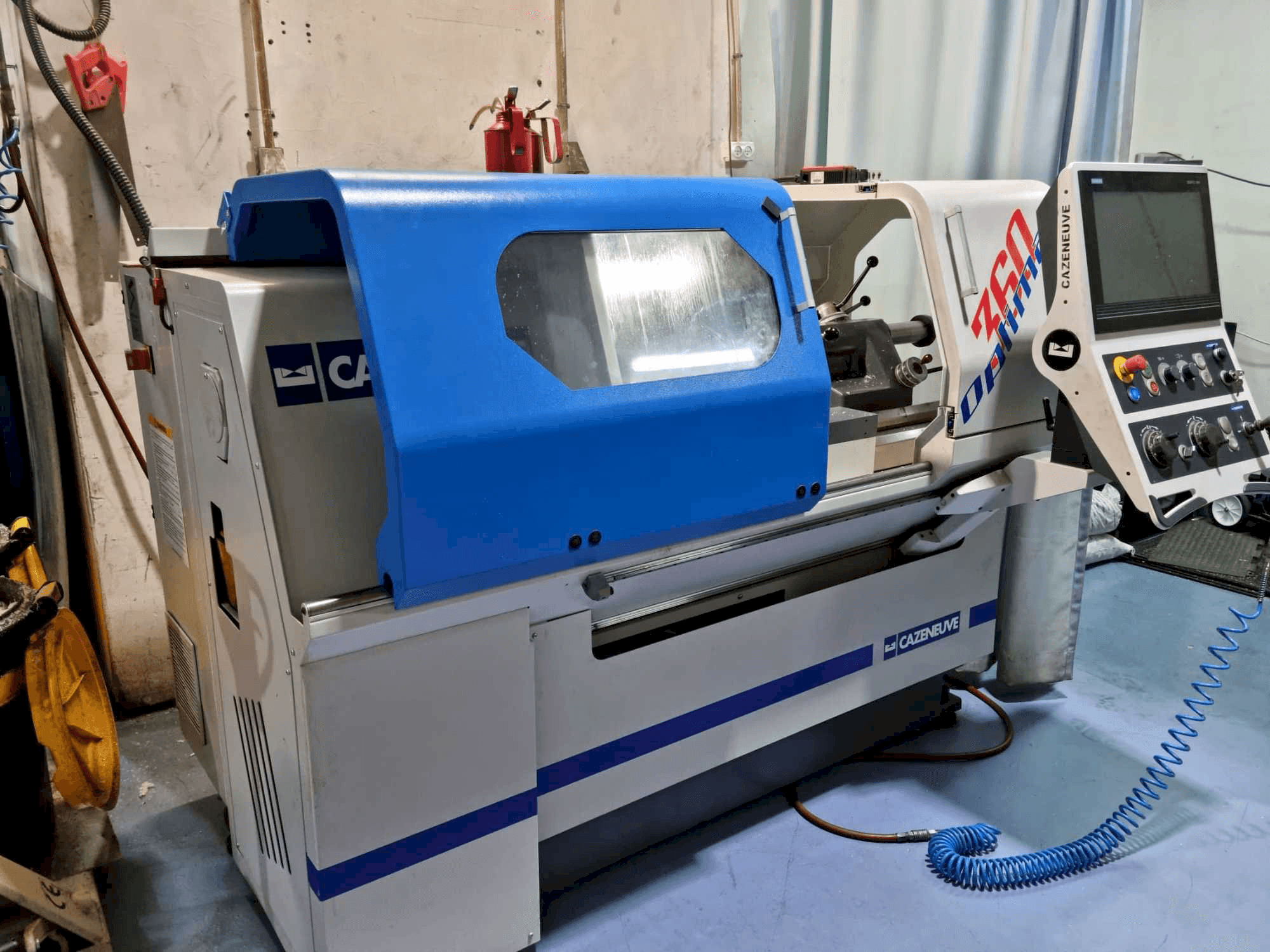

This CAZENEUVE Optimax 360 Lathe was manufactured in the year 2019 in France. It is equipped with a SIEMENS OPTIMAX control unit. The machine has a spindle speed of 3000 rpm, is in good condition and well maintained. CE conformity.

Overview

brand: CAZENEUVE
year: 2019
MODEL: Optimax 360
application type: Turning
Location: Israel
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - CAZENEUVE Optimax 360

General Data

Measurements width: 1575 mm
Measurements depth: 2000 mm
Measurements height: 1542 mm
Machine weight: 2000 kg

Control Unit

Model: OPTIMAX
Brand: SIEMENS

Main drive

Spindle speed range: 3000 1/MIN

Additional equipment

- CE conformity

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance between centres: 700 mm
- - Swing over bed: 390 mm
- - Swing over cross slide: 200 mm
- - Carriage x axis travel: 180 mm
- - Z axis travel: 610 mm
- - Bed width: 330 mm
- - Nose type: a1 6''
- - Chuck diameter: 200 mm
- - Spindle bore 54 mm
- - Quill diameter and taper: 60 mm, mt4
Qualitative Machine Benefits:
- - Quill travel: 140 mm
- - Turret, tool size: multifix b, 20 x 20 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
