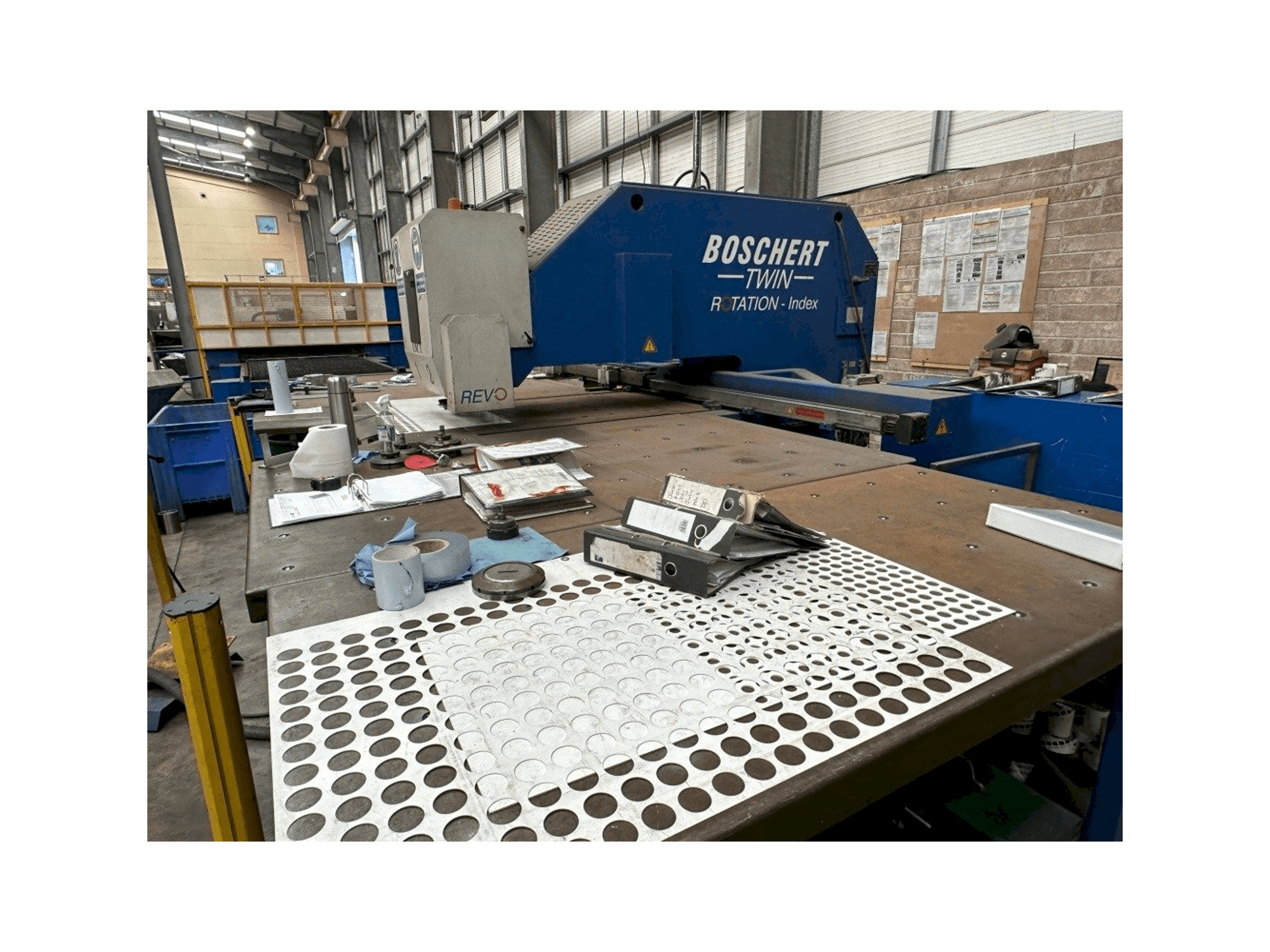

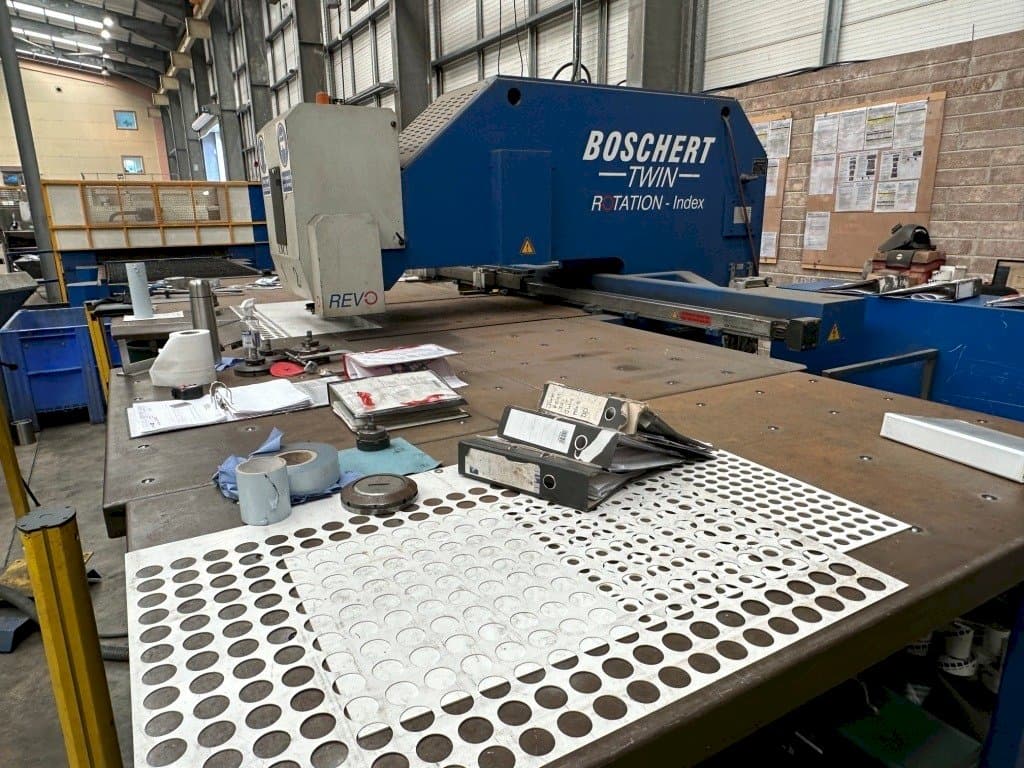

Boschert Twin 1000 Index Punching machine

Show in original language

This Boschert Twin 1000 Index Punching machine was manufactured in the year 2004 in Germany. It is equipped with a Boschert CNC 32050 control unit and has 2 axis. The machine has a punching force of 280 kN.

Overview

brand: BOSCHERT
year: 2004
MODEL: Twin 1000 Index
application type: Punching
Location: Ireland
machine type: Turret Punch Press
availability: Sold
control unit brand: BOSCHERT

Technical Information - BOSCHERT Twin 1000 Index

General Data

Measurements width: 6100 mm
Measurements depth: 5340 mm
Measurements height: 2100 mm
Machine weight: 12500 kg

Control Unit

Model: CNC 32050
CNC main language: English
CNC language customizable: Yes
Brand: BOSCHERT

Main drive

Punching force: 280 kN
Maximum sheet thickness: 6 mm
Number of axis: 2

Movement

X-AXIS Movement: 2000 mm
Y-AXIS Movement: 1000 mm

Workpiece

Workpiece x: 10000 mm
Workpiece y: 1000 mm

Max Material thickness

Steel: 6 mm

Media

Main electronic connection: 400 V
Power consumption: 18 kVa

Additional equipment

- Selection of Tooling

Additional Information

Machine history

Material type: Stainless
Material thickness: 2 mm
Industries: Sub contract fabrication

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
