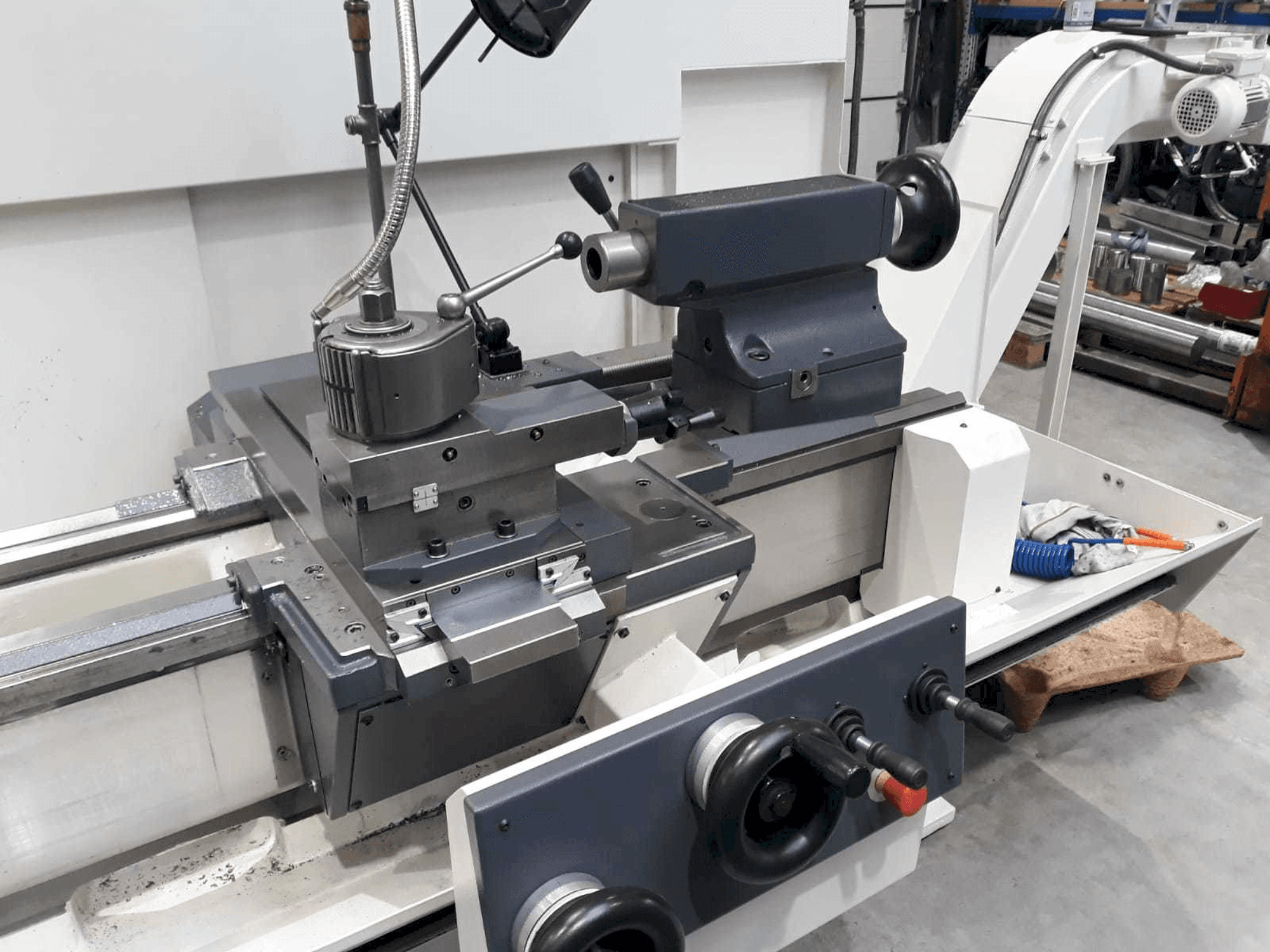

BOEHRINGER DUS 560 Lathe

Show in original language

This BOEHRINGER DUS 560 Lathe from Germany was manufactured in 1998. Operated through a SIEMENS 810 D Control unit, this machine stands out for its perfectly good conditions. It has had a renewal of the wedge bar and ball screws X and Z axis; as well as of the two-wheel block in the main gearbox and the control panel.

Overview

brand: BOEHRINGER
year: 1998
MODEL: DUS 560
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - BOEHRINGER DUS 560

Control Unit

Model: 810 D
Brand: SIEMENS

Main drive

Spindle speed range: 3-2500 rpm 1/MIN
Spindle motor power: 19 KW
Spindle bore: 62 mm

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing diameter over betta cover: 570 mm
- - Machining diameter longitudinal: 365 mm
- - Gear stages: 2
- - Tool system: multifix system
- - Tailstock: quill diameter 80 mm
- - Quill stroke: 190 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
