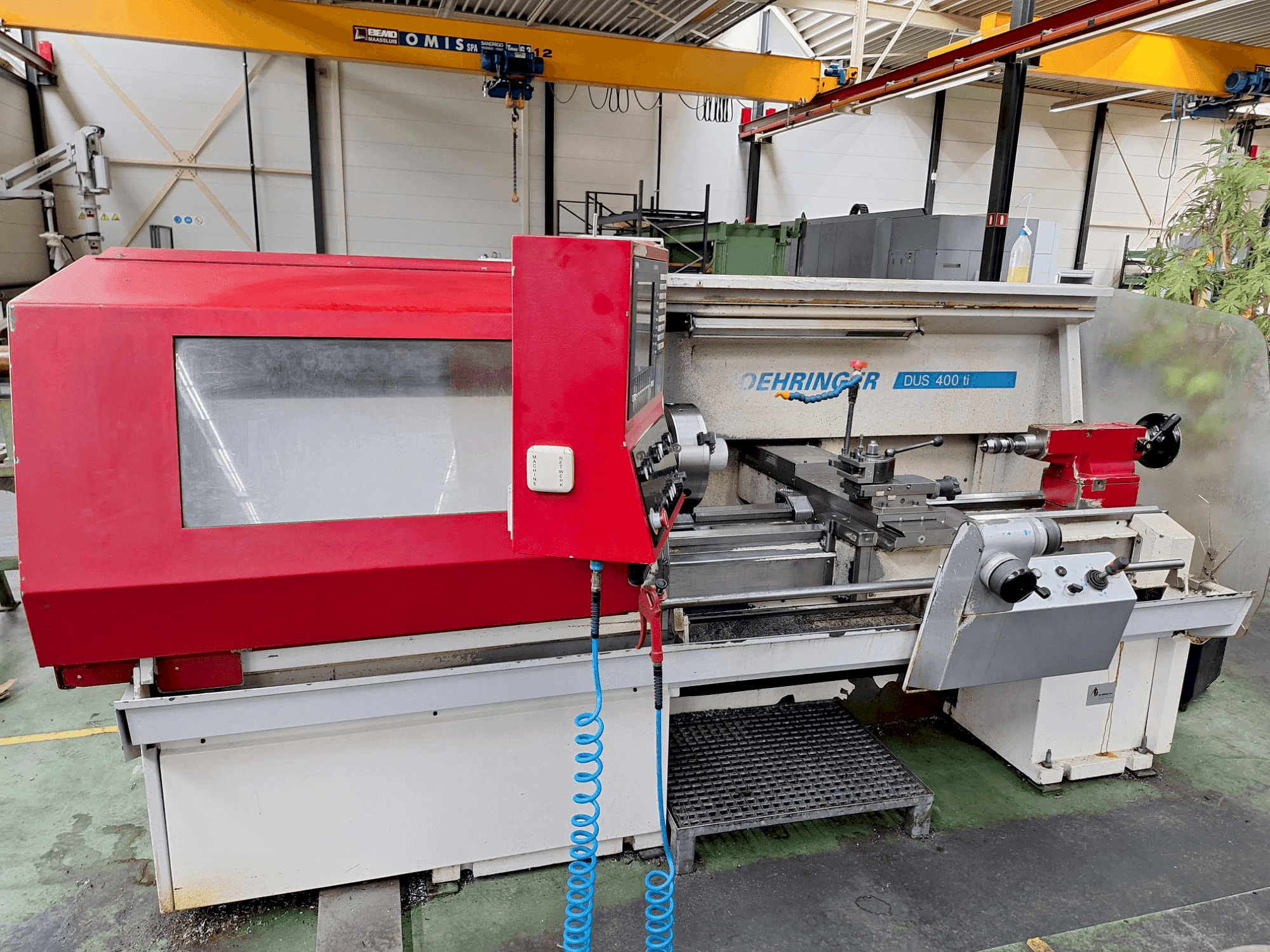

BOEHRINGER - DUS 400 tiNL-TUR-BOE-2003-00001

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Feed: metric screw thread (long, flat, and conical) with a range of 0. 1–400 mm.
  • - Tailstock:quill diameter: 70 mm quill stroke: 110 mm internal taper of the quill: mk 4
  • - Internal taper of the spindle: sk 60°
  • - Center angle, normal: 60°
  • - Clamping and guide device diameter of flat plate, normal: 400 mm
  • - Three- and four-jaw plate, diameter according to vdf 6025: 250 mm
  • - Fixed steady rest: 200 mm
  • - Allowable workpiece weights:unsupported, max. Center of gravity distance without clamping device: 100 kg with clamping device: 50 kg with tailstock: 150 kg with tailstock and 1 steady rest: 250 kg
  • - Display: 10. 4" color lcd
  • - 1000 mm between the centers
• Qualitative Machine Benefits:
  • - Swing-dia over bed 235mm
  • - 420 mm swing-dia over cross slide

Extra information

• - Machine still under power
