➤ Used BIESSE SKIPPER 100 L For sale | gindumac.com

Show in original language

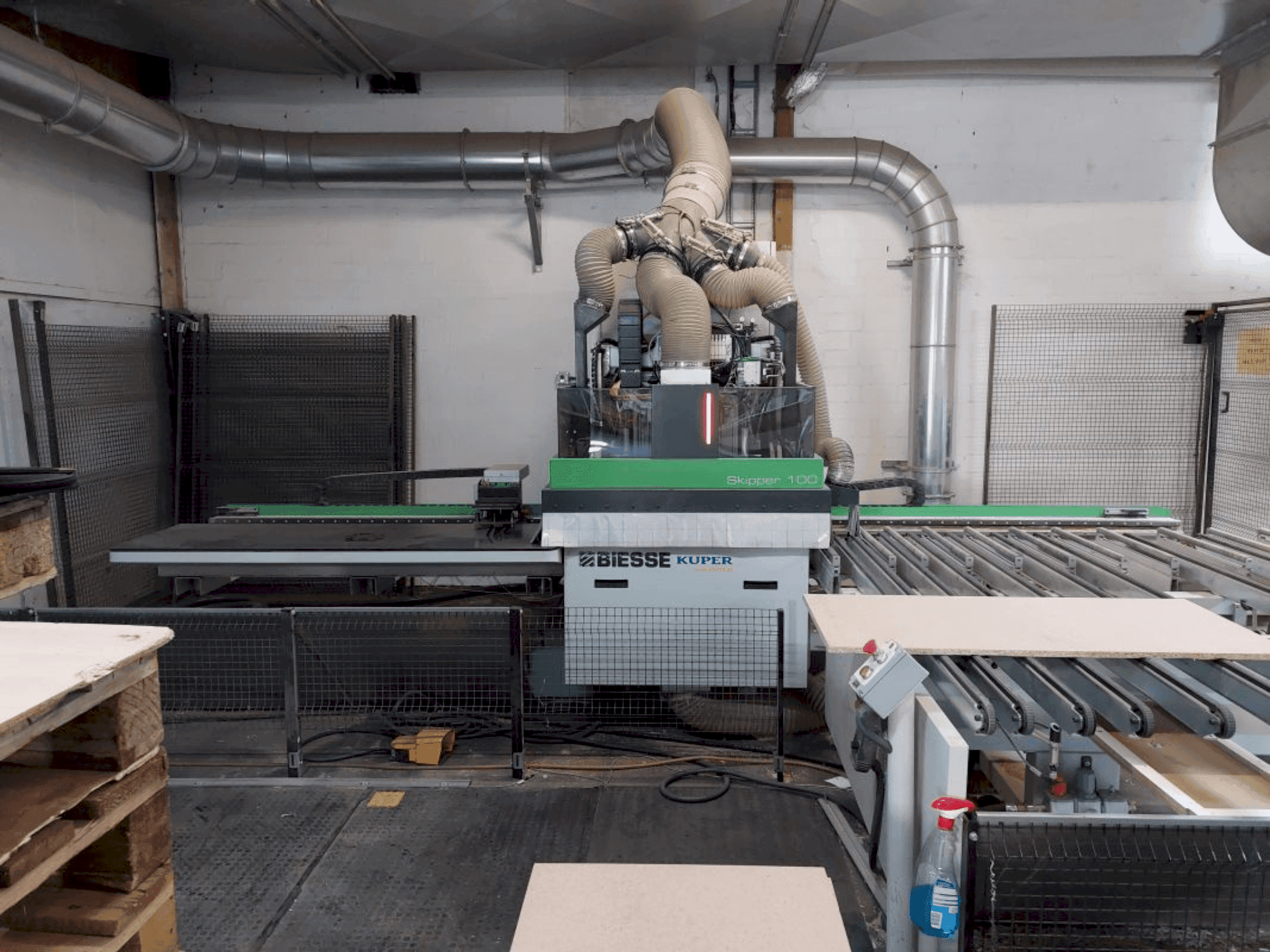

This Biesse Skipper 100L woodworking machine was manufactured in 2019. It features dual BH39 processing units, each with 39 spindles, including 29 vertical and 10 horizontal spindles, enhancing its versatility. Equipped with a powerful 3.5 kW electrospindle, it supports a rotation speed up to 18,000 rpm. Additionally, it includes a grooving saw with a 160mm diameter for precise longitudinal cuts. Ideal for handling workpieces up to 3000mm in length and 1000mm in width. For more information about this woodworking machine, please reach out to us.

Overview

brand: BIESSE
year: 2019
MODEL: SKIPPER 100 L
application type: CNC Wood Machining
Location: Germany
machine type: CNC Router
availability: Sold

Technical Information - BIESSE SKIPPER 100 L

General Data

Measurements width: 1000 mm
Measurements depth: 3000 mm

Main drive

Number of spindles: 1
Spindle speed range: 7000 - 18000 rpm 1/MIN
Spindle motor power: 3.5 kW
Tool taper: HSK D50

Additional equipment

- Laser Device for Manual Reading: Of barcode labels
- BIESSEWORKS Programming System: Office version with 2 hardware keys

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Thickness: min. 8 mm - max. 60 mm
- - Bh39 unitsnumber of spindles per unit: 39 (including vertical and horizontal)
- - Grooving saw unit power: 3. 5 kw (4. 7 hp) // grooving saw diameter: 160 mm
- - Material removal: max. 100 mm²
- - Cutting width: 4 mm
- - Powerful processing units with electrospindles and grooving saws.
- - Extensive and versatile drilling capabilities.
- - Efficient material removal with grooving saw units.
- - High-speed operations with a wide range of spindle speeds.
- - Laser device: for manual reading of barcode labels.
Qualitative Machine Benefits:
- - Precision and efficiency through multiple spindles and advanced control systems.
- - Advanced programming capabilities with biesseworks software.

Extra information

- BIESSEWORKS Programming System: Office version for advanced programming.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
