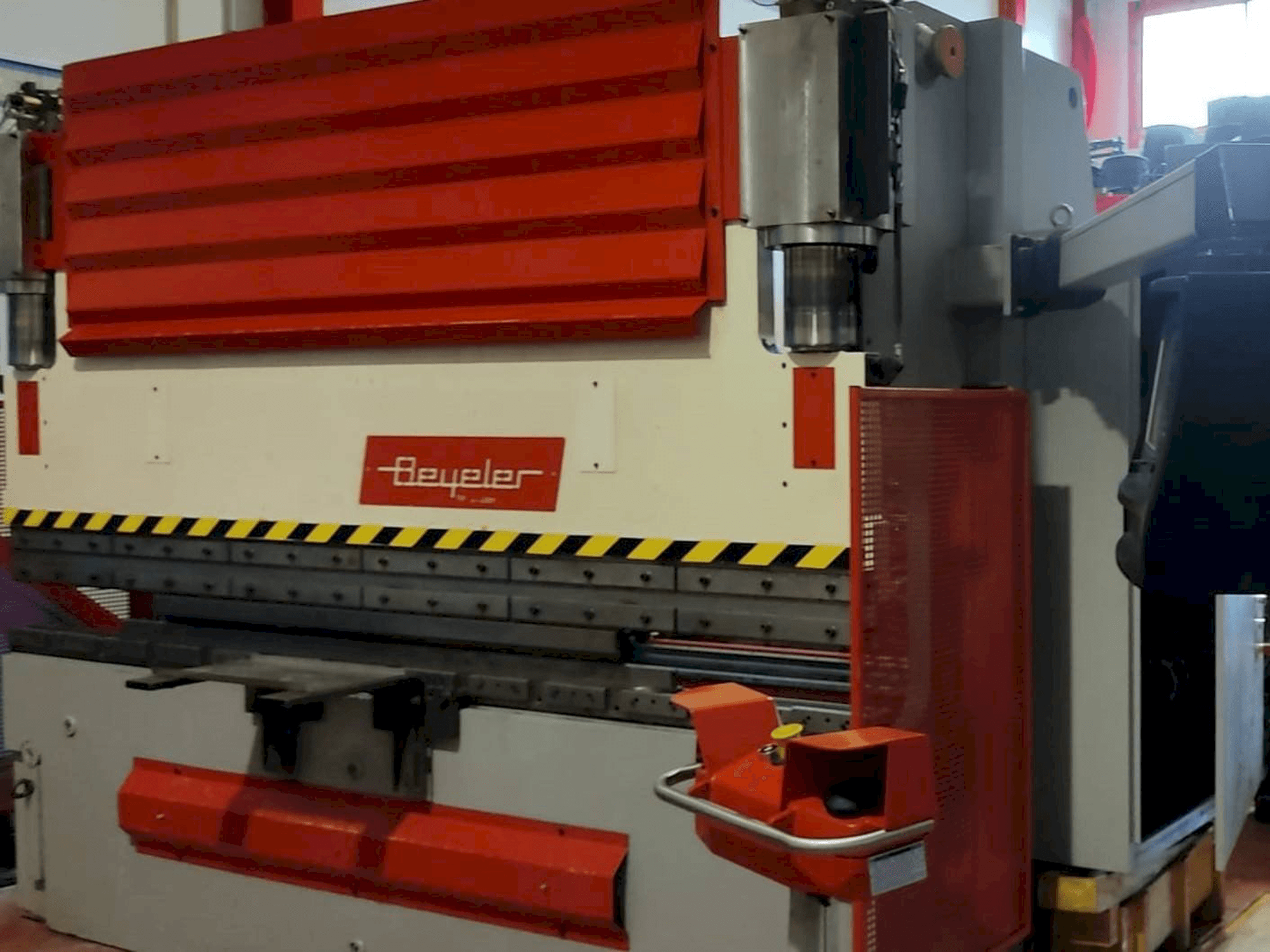

BEYELER PR6 1500 x 3100 Bending Machine

Show in original language

This BEYELER PR6 1500 x 3100 Bending Machine was manufactured in 2000. It is operated through a CYBELEC DNC 880 Control unit. This machine offers 1500 kN of pressing force and 3100 mm of bending length.

Overview

brand: BEYELER
year: 2000
MODEL: PR6 1500 x 3100
application type: Bending
Location: Spain
machine type: Press Brake
availability: Sold
control unit brand: CYBELEC

Technical Information - BEYELER PR6 1500 x 3100

General Data

Machine weight: 9200 kg

Control Unit

Model: DNC 880
Brand: CYBELEC

Main drive

Pressing force: 1500 kN
Bending length: 3100 mm
Number of axis: 6

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Control to y1/y2/x/r/z1/z2 axes and compensation
- - Promecan punch clamping
- - Promecan matrix and center groove tie-downs
- - Distance between uprights 2800 mm
- - Maximum course 215 mm
- - Maximum opening (without intermediates) 480 mm
- - Gooseneck 410 mm
- - Electric motor power: 7. 5 kw
- - Approach speed 120 medium 200 maximum mm/s
- - Working speed 9 mm/s return speed 120 mm/s
Qualitative Machine Benefits:
- - X axis: speed 400 mm/s. X axis: travel 660 mm
- - R axis: speed 120 mm/s r axis: travel 220 mm
- - Z1/z2 axis: speed 500 mm/s z1/z2 axis: travel 2750 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
