➤ Used Reis SEP10-30 DIII For Sale | gindumac.com

Show in original language

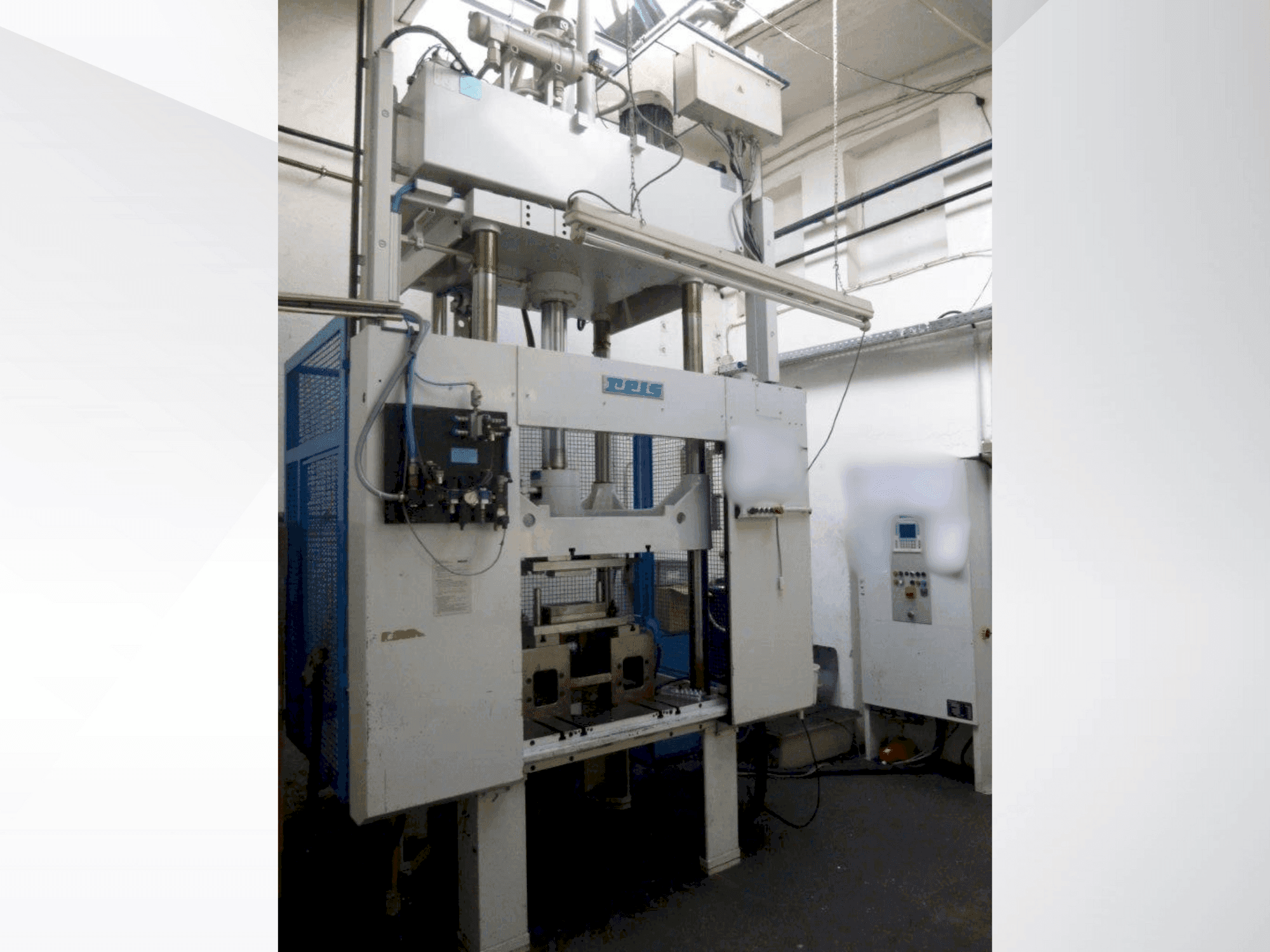

This stamping machine was manufactured in 2008. A robust Reis SEP10-30 DIII, it features a working range with a distance between columns of 1020 x 705 mm and a daylight of 1000 mm. It supports a nominal force of 300 kN and is powered by a 15 kW Schäfer motor. Ideal for heavy-duty stamping operations, consider the opportunity to buy this Reis SEP10-30 DIII stamping machine. Contact us for further details regarding this machine.

Overview

brand: Reis
year: 2008
MODEL: SEP10-30 DIII
application type: Stamping
Location: Germany
machine type: Hydraulic Press
availability: Immediately

Technical Information - Reis SEP10-30 DIII

General Data

Measurements width: 1900 MM
Measurements depth: 3800 MM
Measurements height: 2110 MM
Machine weight: 5600 KG

Table

Outer length: 1020/1340 mm
Outer width: 1085/705 mm
Number of tslots: 2

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Ram length: 1020/1190 mm
- - Ram width: 956/705 mm
- - Distance between columns: 1020 x 705 mm
- - Daylight: 1000 mm
- - Table height: 1000 mm
- - Nominal force: 300 kn
- - Return pressure: 42 kn
- - System pressure: 200 bar
- - Speed: 1455 rpm
- - Total connected load: 22. 5 kva
Qualitative Machine Benefits:
- - Total capacity required: 19 kw
- - Voltage: 400/690 v
- - Electrical connection: 3/pe/n

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
