➤ Used AMADA Vipros 368 Queen | CNC Punch Press

Show in original language

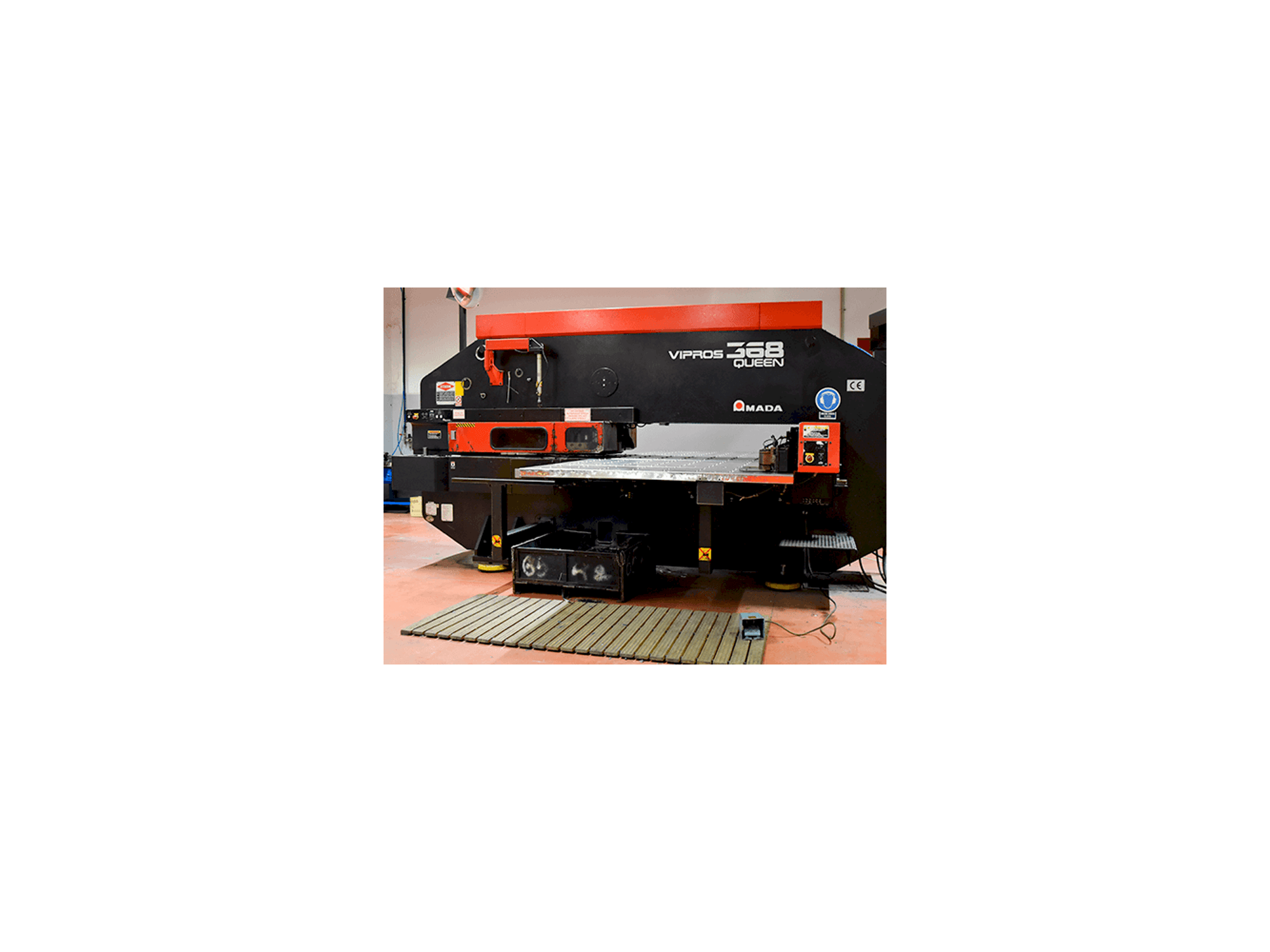

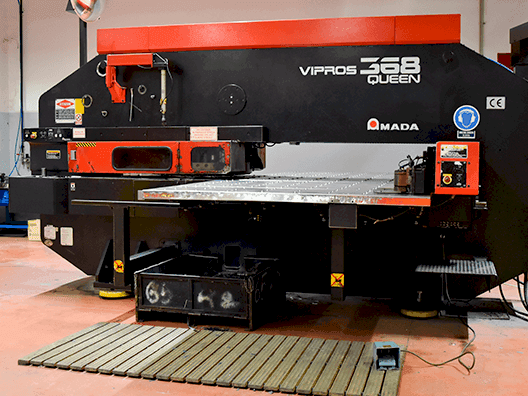

This Amada Vipros 368 Queen Punching machine was manufactured in the year 2001 and has 42843 working hours. The machine has a pressing force of 294 kN.

Overview

brand: AMADA
year: 2001
MODEL: Vipros 368 Queen
production hours: 42843
application type: Punching
Location: Slovenia
machine type: Turret Punch Press
availability: Sold

Technical Information - AMADA Vipros 368 Queen

Main drive

Pressing force: 294 kN

Table

Outer length: 1525 mm
Outer width: 4000 mm

Additional Information

Machine history

Material type: Mild steel
Material thickness: 6. 35mm

Machine Benefits

Technical Machine Benefits:
- - Frame construction : bridge type
- - Axis traverse distance : 1270 x 2000mm
- - Max. Hole diameter max. Material : 41mm diameter
- - Max. Material weight: 100kg
- - Max. Hole diameter: 114. 3mm
- - No. Of stations 45 stations: 24 x a (max. Dia. 12. 7mm) 12 x b (max. Dia. 31. 7mm) 2 x c (max. Dia. 50. 8mm) 1 x d (max. Dia. 88. 9mm) 2 x e (max. Dia. 114. 3mm) auto indexing: 2 x b (max dia 31. 7mm) 2 x c (max. Dia. 50. 8mm)
- - Press type : servo controlled hydraulic ram

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
