➤ Used AMADA EM2510NT | Turret Punching Machine

Show in original language

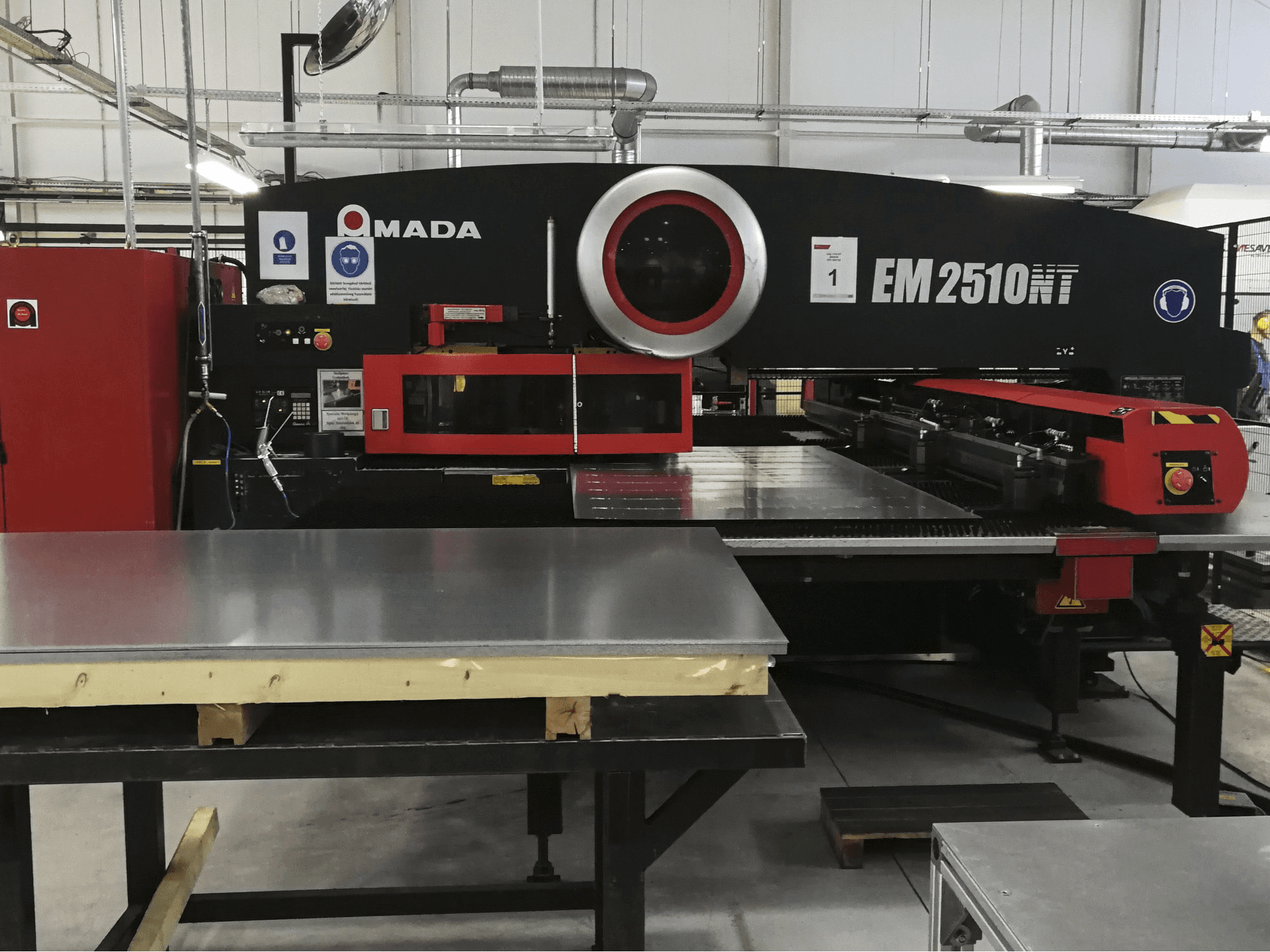

This AMADA EM2510NT Turret Punching Machine from France was manufactured in 2004 and was operative for 69466 working hours since then. Equipped with a FANUC 180i-PB Control unit, this machine stands out due to its air blow tool lubrication extending tool life and the floating brush table for scratch free processing. A selection of additional tools is included and spares easily available for this machine.

Overview

brand: AMADA
year: 2004
MODEL: EM2510NT
production hours: 69466
application type: Punching
Location: Hungary
machine type: CNC Punch Press
availability: Sold
control unit brand: FANUC

Technical Information - AMADA EM2510NT

General Data

Measurements width: 5526 mm
Measurements depth: 5120 mm
Measurements height: 2318 mm
Machine weight: 18000 kg

Control Unit

Brand: FANUC
Model: 180i-PB

Main drive

Punching force: 200 kN
Maximum sheet thickness: 6.3 mm

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 1270 mm

Table

Max punching diameter: 114.3 mm

Tools

Number of index: 4
Number of stations: 45

Max Material thickness

Steel: 6 mm
Stainless steel: 3 mm
Aluminum: 6 mm

Media

Main electronic connection: 200 V/ 60 Hz / 3 P
Power consumption: 27 kVA

Additional equipment

- Tools

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
