- AMADA ARIES 245 Turret Punching Machine

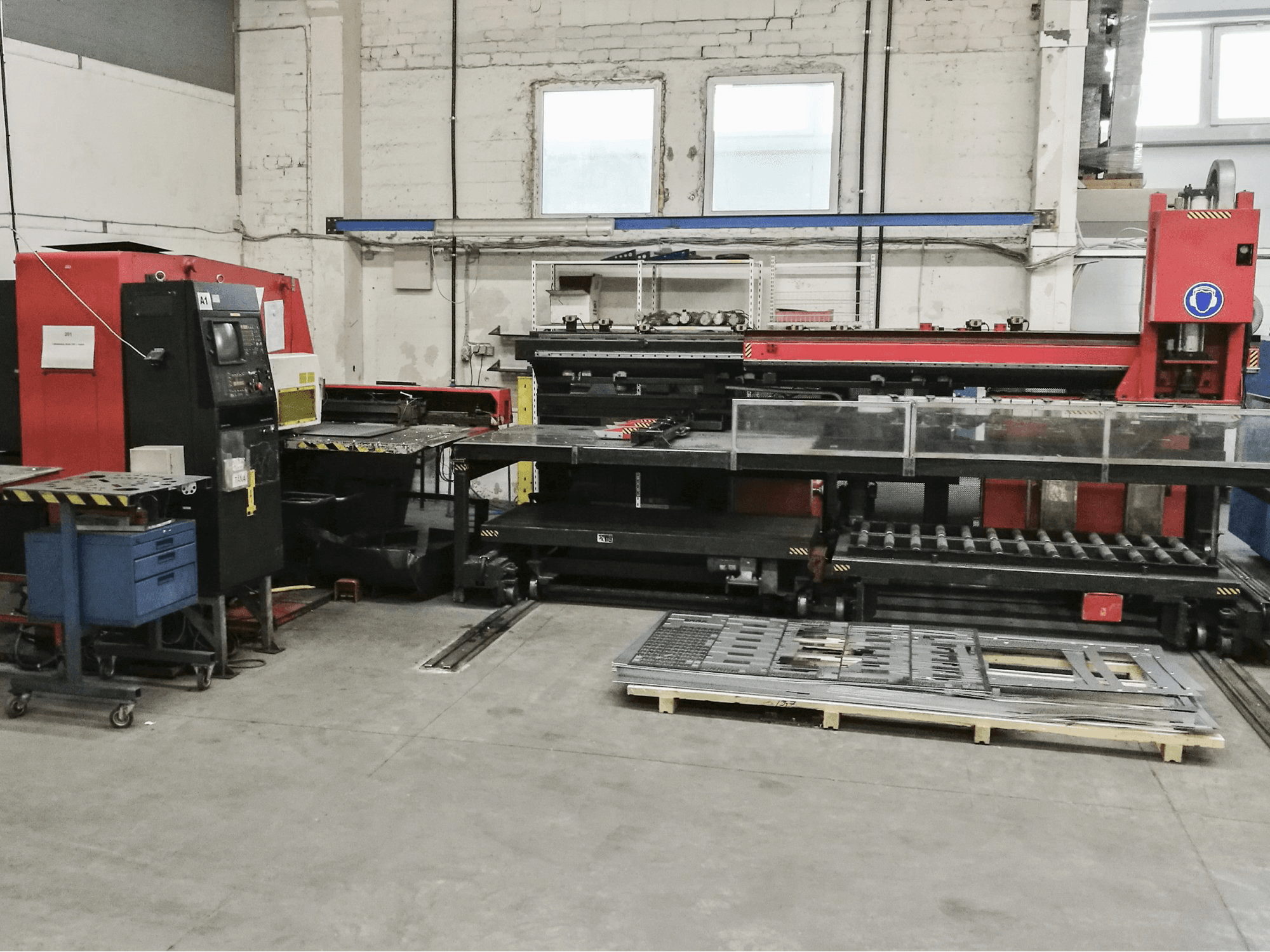

This AMADA ARIES 245 Turret Punching Machine was built in year 1990 and incorporates a 19 stations turret. As additional equipment, extra tools and an AMADA KA03-0 sheet loader are included.
Overview
- brand: AMADA
- year: 1990
- MODEL: ARIES 245
- application type: Bending & Punching
- Location: Estonia
- machine type: Turret Punch Press
- availability: Sold
- control unit brand: AMADA
Technical Information - AMADA ARIES 245
General Data
- Measurements width: 2700 mm
- Measurements depth: 3784 mm
- Measurements height: 1950 mm
- Machine weight: 7500 kg
Control Unit
- Brand: AMADA
- Model: AMADAN 04P-A
Main drive
- Punching force: 200 kN
- Maximum sheet thickness: 4.5 mm
Movement
- X-AXIS Movement: 1270 mm
- Y-AXIS Movement: 1000 mm
Workpiece
- Workpiece x: 2540 mm
- Workpiece y: 1000 mm
Tools
- Number of stations: 19
Max Material thickness
- Steel: 4.5 mm
Media
- Main electronic connection: 380 V / 50 Hz
- Power consumption: 11 kVA
Additional equipment
- - Tools
- - Sheet loader AMADA KA03-0
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
