WFL M30 Lathe and milling center

Show in original language

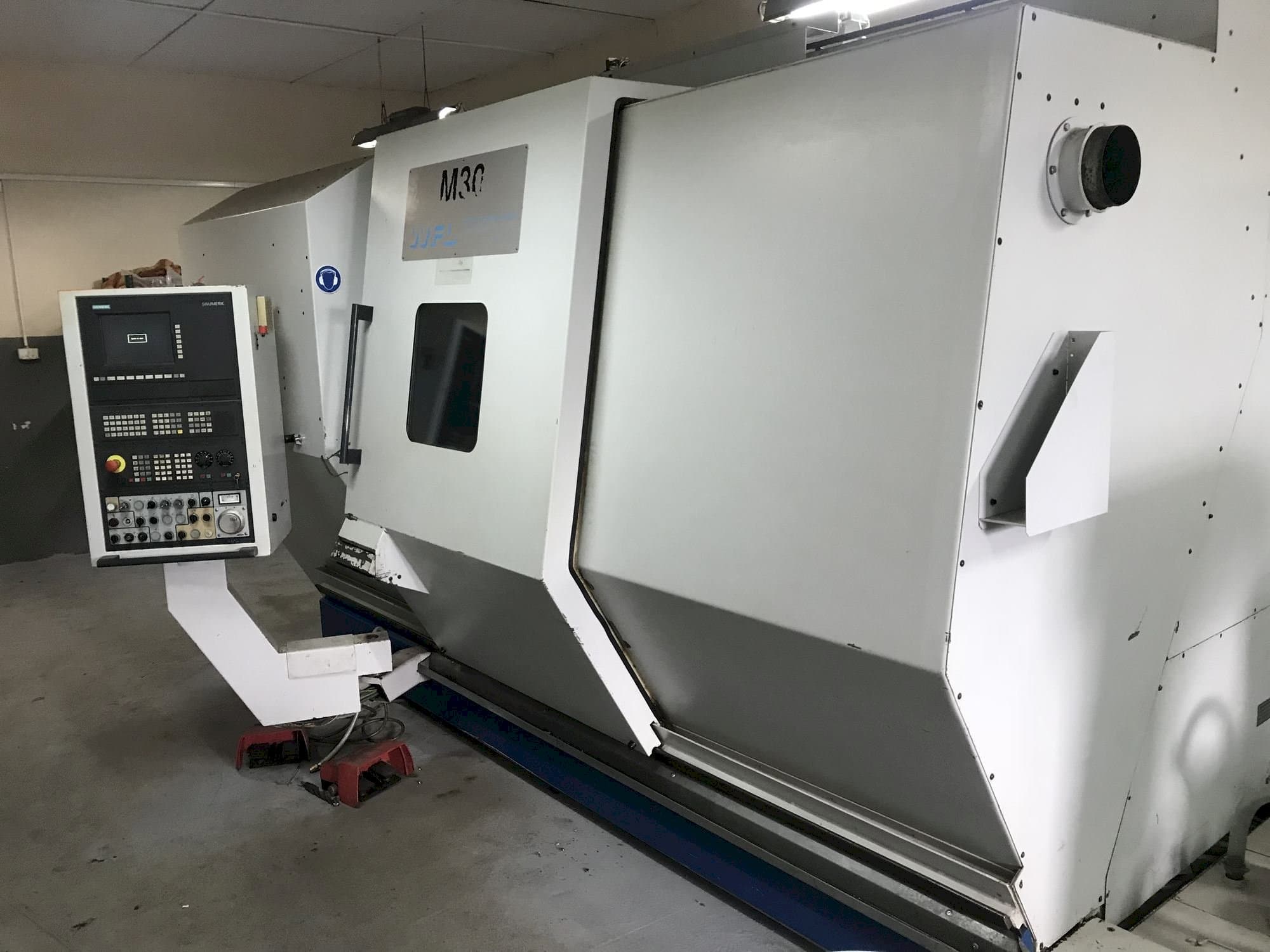

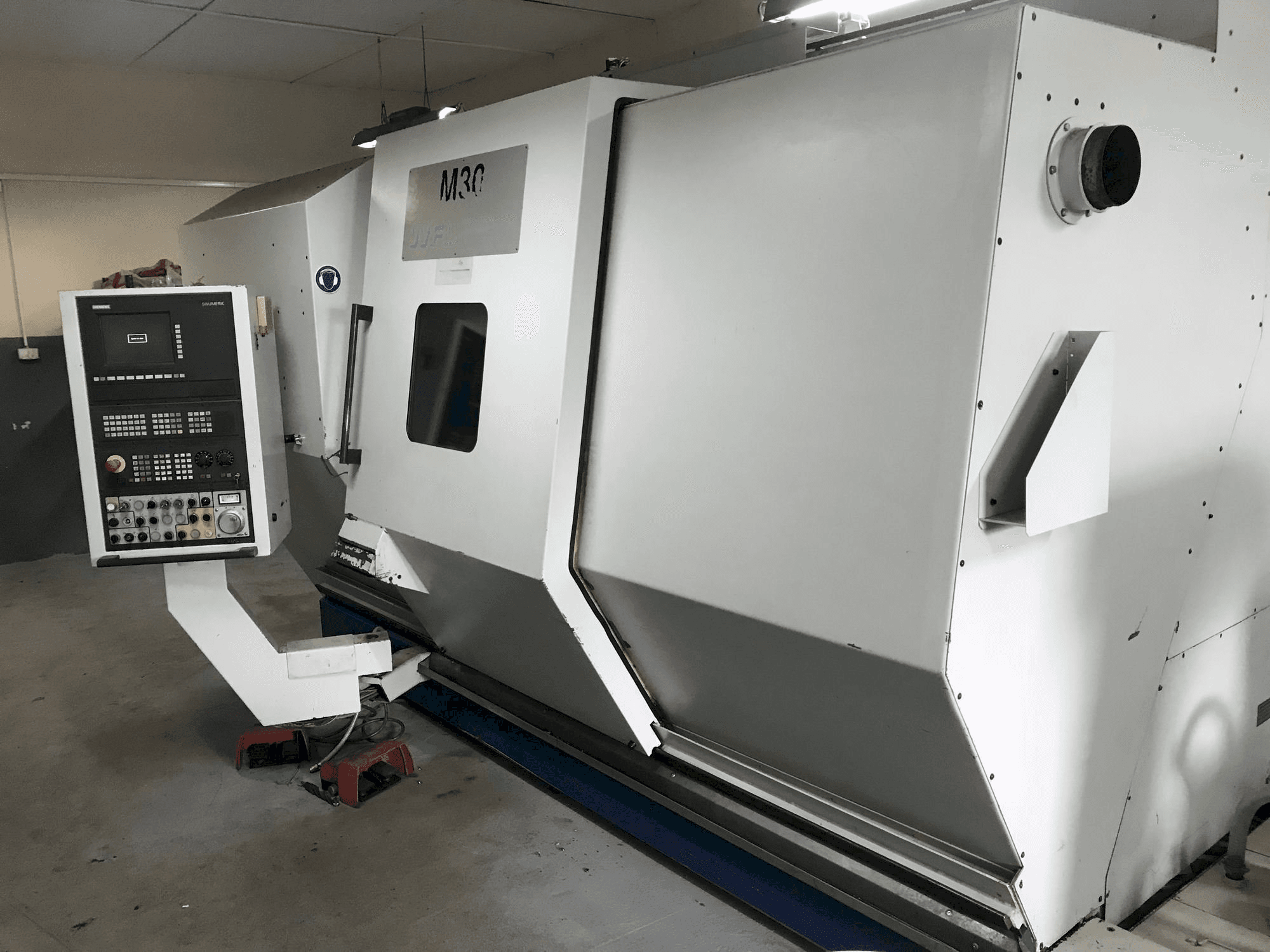

This WFL M30 Lathe and milling center was built in 1998. It is operated with a Siemens 840 C control unit and can perform with a spindle speed up to 4000 rpm. It includes tailstock, tool holders, and probe. Additional spare parts.

Overview

brand: WFL
year: 1998
MODEL: M30
production hours: 14830
application type: Turning
Location: Poland
machine type: Turn-Mill Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - WFL M30

General Data

Measurements width: 3400 mm
Measurements depth: 4700 mm
Measurements height: 2700 mm
Machine weight: 11000 kg

Control Unit

Model: 840 C
Brand: SIEMENS

Main drive

Spindle speed range: 4000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 600 mm
Z-AXIS Movement: 2000 mm

Tools

Type of tool holder: HSK 50

Additional equipment

- tailstock
- tool holders
- probe
- additional spare parts

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Turning length 1000 mm
- - Turning diameter 300 mm
- - Turning above the bed - 520 mm
- - Bandwidth: 225 mm
Qualitative Machine Benefits:
- - The machine is in good working condition
- - Ready for test
- - Full documentation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

Technical_information.pdf
