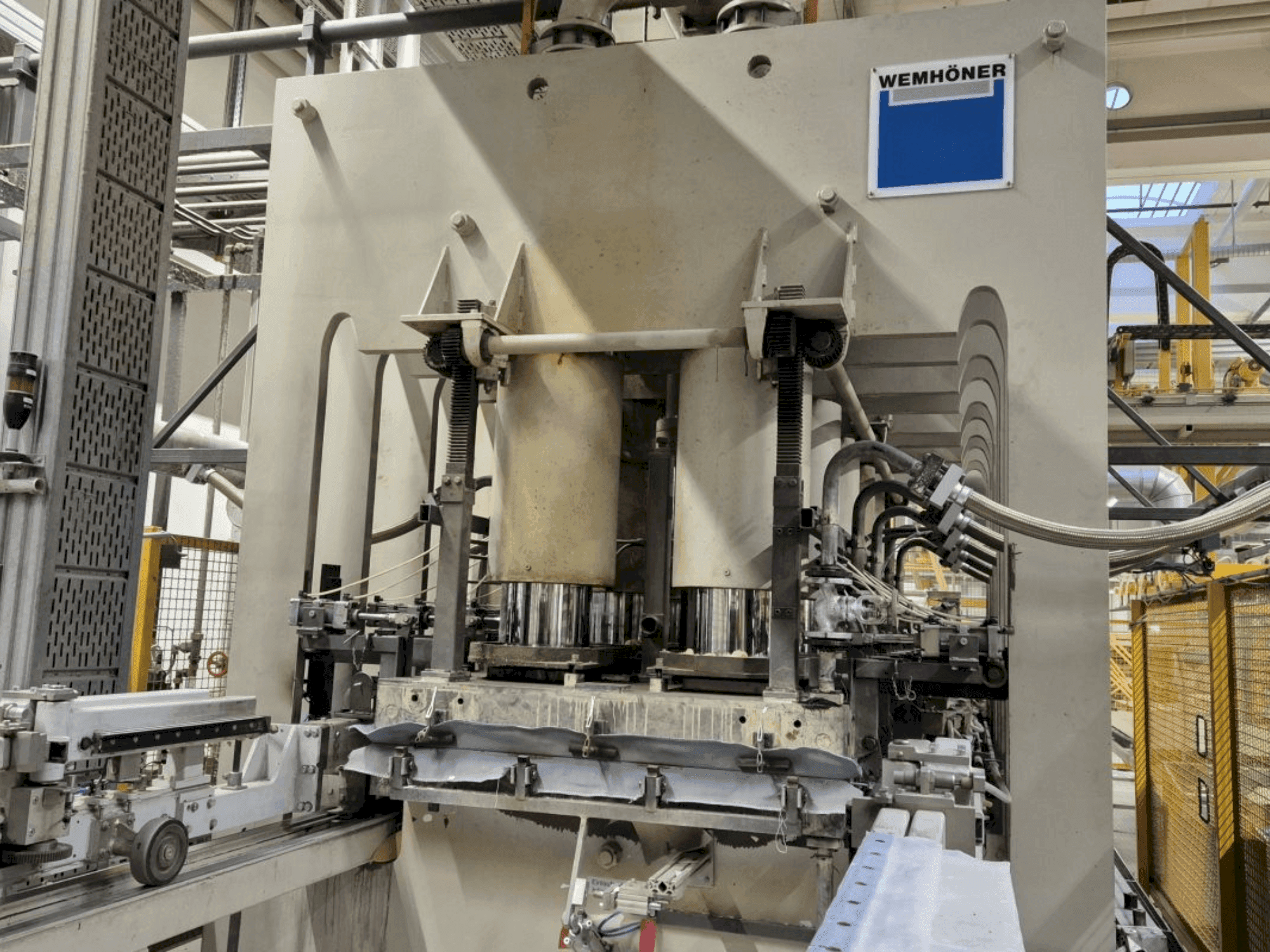

This WEMHÖNER KT-F-1E laminating press was manufactured in 1994. It features a short-cycle pressing line capable of handling panel dimensions up to 4405 mm in length and 1390 mm in width, with thicknesses ranging from 6 to 38 mm. The system includes roller conveyors, a double-sided feeding station, and a stacking station, ideal for efficient large-scale production. Contact us for more information about this machine.
Overview
- brand: WEMHÖNER
- year: 1994
- MODEL: KT-F-1E
- application type: Pressing / Laminating
- Location: Germany
- machine type: Laminating Press
- availability: Immediately
Technical Information - WEMHÖNER KT-F-1E
Additional equipment
- - Roller conveyors and cross trolley
- - Double sided feeding station
- - Magazine for the film pallets
- - Short cycle press
- - Cleaning of the edges
- - Cross cutting saw
- - Brushing device
- - Stacking station
Additional Information
- Technical Machine Benefits:
- - Panel length: 2600 / 4045 / 4145 / 4405 mm
- - Panel width: 790 / 915 / 1040 / 1290 / 1390 mm
- - Thickness: 6 - 38 mm
- - Stacking height of raw and finished panels: max 1000 mm
- - Pressure: approximately 35 kg/cm²
- - On request, a drawing of the whole line, showing all the single components, can be provided.
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
