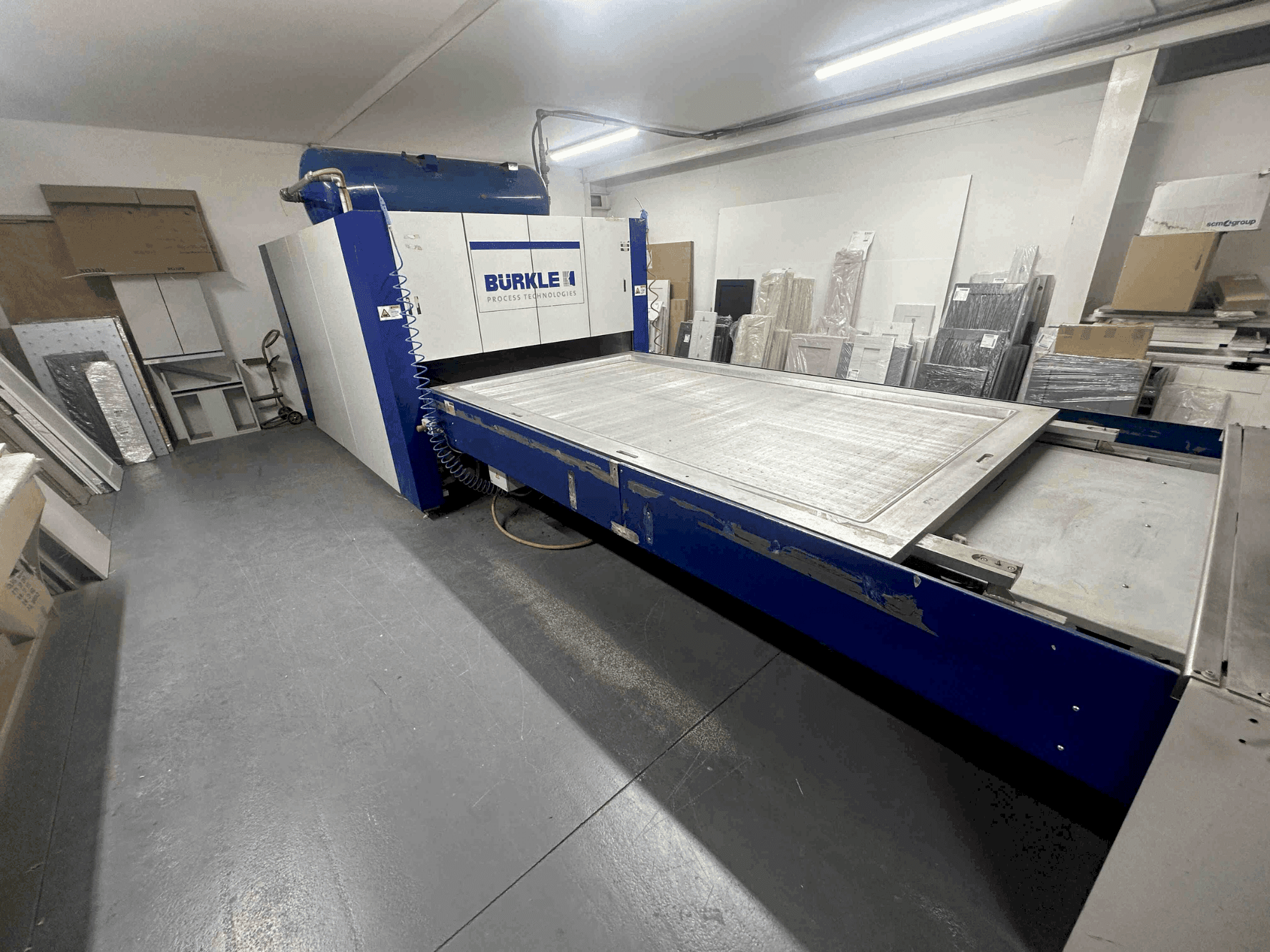

This BURKLE M8 was manufactured in 2008. A compact thermoform laminating machine for 3D MDF parts, it features a useful tray area of 1330x2430mm and a max board size of 1250x2350mm. With a max platen heating temperature of 150°C and top heating platen power of 24kW, it ensures efficient processing. The machine we have for sale weighs 8100kg. For more information about this laminating press, please reach out to us.
Overview
- brand: BURKLE
- year: 2008
- MODEL: M8
- application type: Pressing / Laminating
- Location: Ireland
- machine type: Laminating Press
- availability: Immediately
Technical Information - BURKLE M8
General Data
- Measurements width: 6783 MM
- Measurements depth: 2010 MM
- Measurements height: 1787 MM
- Machine weight: 8100kg
Additional equipment
- - Burkle Roller Storage Unit - Intertex Tebomat
Additional Information
- Technical Machine Benefits:
- - Hydraulic power: 2. 2kw
- - Top heating platen power: 24kw
- - Useful tray area: 1330x2430mm
- - Max board size: 1250x2350mm
- - Workpiece: Press Chamber Height: 55mm, Max Moulding Pressure: 4bar, Max Differential Pressure incl Vacuum: 4.8bar, Min Width of Foil: 1400mm, Max Platen Heating Temp: 150°C
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
