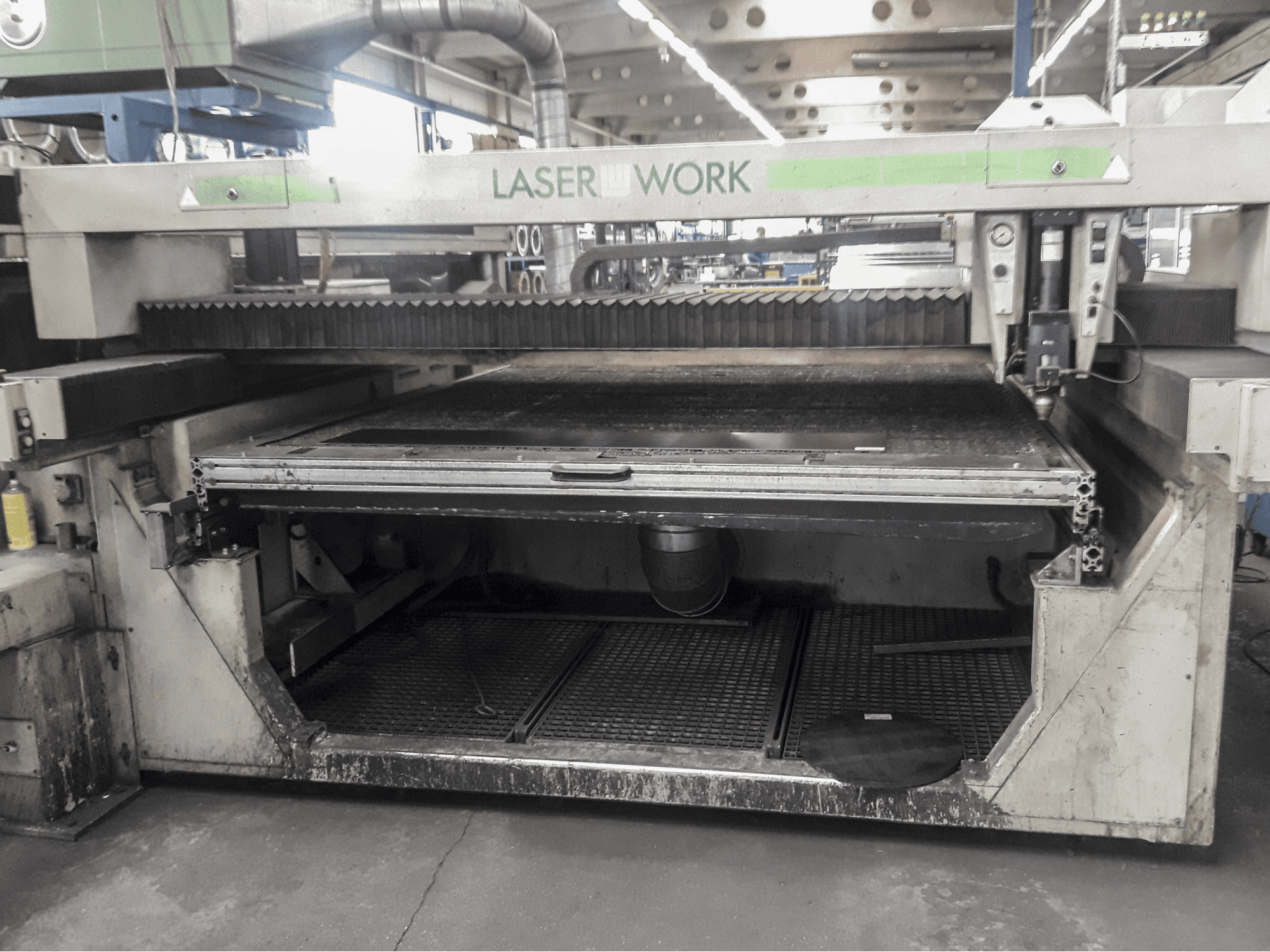

WEGMANN-BAASEL VFA 1750 Laser Cutting Machine

Show in original language

This WEGMANN-BAASEL VFA 1750 Laser Cutting Machine was manufactured in 1990 in Germany and has a working record of 16500 production hours. The machine is equipped with an IBH Macro Control unit and allows very easy programming due to ISO standards. During the past, this machine produced supplies for ventilation systems and offers an outstanding price-performance ratio.

Overview

brand: WEGMANN-BAASEL
year: 1990
MODEL: VFA 1750
production hours: 16500
application type: Cutting
Location: Austria
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: WEGMANN-BAASEL

Technical Information - WEGMANN-BAASEL VFA 1750

General Data

Measurements width: 6300 mm
Measurements depth: 14600 mm
Measurements height: 2000 mm

Control Unit

Brand: IBH
Model: Macro

Main drive

Laserpower: 1.75 kW

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 2000 mm
Z-AXIS Movement: 150 mm
V-AXIS Movement: 360 mm

Workpiece

Workpiece drm: 400 mm
Workpiece x: 3000 mm
Workpiece y: 2000 mm
Workpiece z: 5 mm

Max Material thickness

Steel: 5 mm
Stainless steel: 3 mm
Aluminum: 2 mm

Additional equipment

- Movable palette

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
