- Walter Heli Toolcheck 3C Measuring and presetting machine

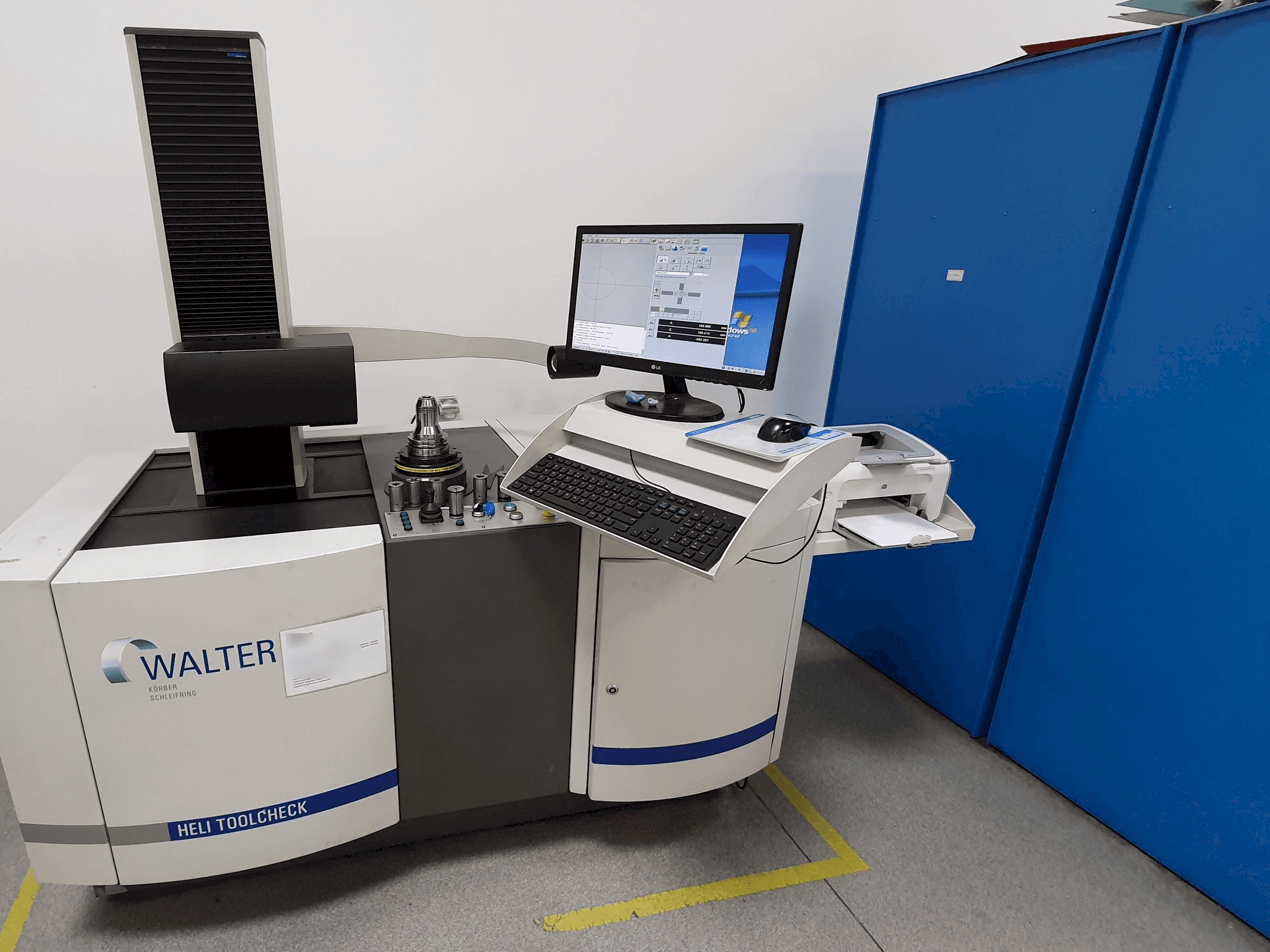

This Walter Heli Toolcheck 3C Measuring and presetting machine was made in Germany in 2004. It operates with an A-axis speed of 60 rpm, a repeating accuracy diameter and length measuring of +/- 0,002 mm and a resolution for all linear axis 0,002 mm. The machine is in very good working condition. Ready for tests.
Overview
- brand: WALTER
- year: 2004
- MODEL: Heli Toolcheck 3C
- application type: Measuring
- Location: Poland
- machine type: Optical Measurement Machine
- availability: Sold
Technical Information - WALTER Heli Toolcheck 3C
General Data
- Measurements width: 1765 mm
- Measurements depth: 1400 mm
- Measurements height: 1957 mm
- Machine weight: 1500 KG
Movement
- X-AXIS Movement: 310 mm
- Y-AXIS Movement: 290 mm
- Z-AXIS Movement: 640 mm
Workpiece
- Workpiece weight: 25 KG
Media
- Main electronic connection: 230V / 60Hz
- Power consumption: 2 kVA
Additional Information
- Technical Machine Benefits:
- - A axis speed: 60 rpm
- - Workpiece dia. : 300 mm
- - Max. Workpiece length: 500 mm
- - Repeating accuracy dia. Measuring: + /- 0. 002 mm
- - Repeating accuracy length measuring: + /- 0. 002 mm
- - Resolution for all linear axis: 0. 002 mm
- - Resolution for rotational a axis: 0. 0025 deg
- Qualitative Machine Benefits:
- - The machine in very good working condition
- - It is still at the production
- - Ready for tests
- - Full documentation available
- - Pc and software included
- - Some accessories included
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
