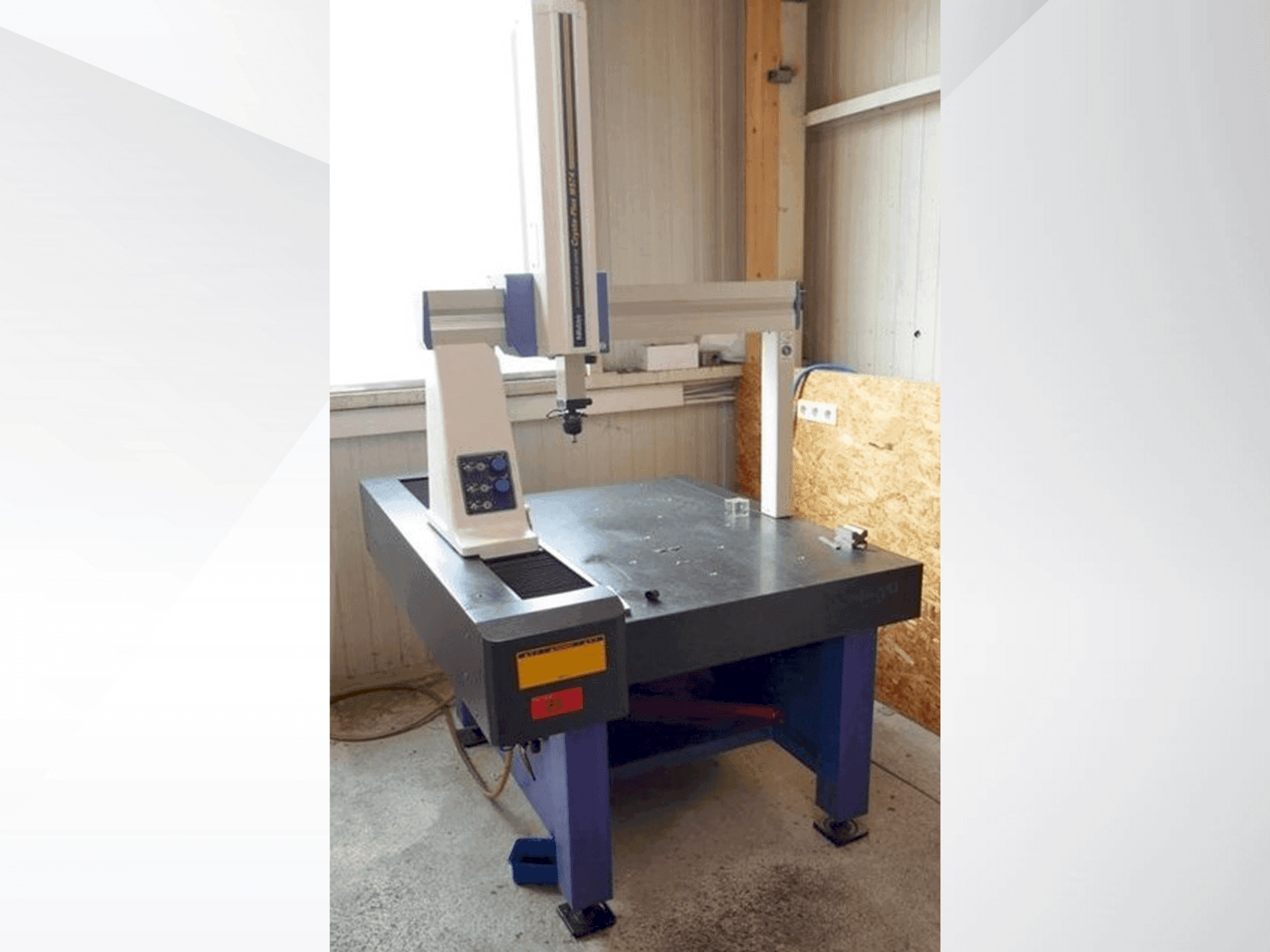

Front view of Mitutoyo Crysta-Plus M574  machine

Mitutoyo - Crysta-Plus M574PL-MEA-MIT-2012-00001

Rs. 1,061,150
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This cmm machine was manufactured in 2012. The Mitutoyo Crysta-Plus M574 features a measuring range of 500 mm in X, 700 mm in Y, and 400 mm in Z. It can handle a maximum workpiece height of 590 mm and a table loading of 180 kg. The machine dimensions are 1082 x 1458 x 2285 mm, weighing 646 kg. For more information about this machine, please reach out to us.

Overview

  • brand: Mitutoyo
  • year: 2012
  • MODEL: Crysta-Plus M574
  • application type: Measuring
  • Location: Poland
  • machine type: Coordinate Measuring Machine (CMM)
  • availability: Immediately

Technical Information - Mitutoyo Crysta-Plus M574

General Data

  • Measurements width: 1458 MM
  • Measurements depth: 1082 MM
  • Measurements height: 2285 MM
  • Machine weight: 646 KG

Main drive

  • Resolution: 0,5 microns

Movement

  • X-AXIS Movement: 500 mm
  • Y-AXIS Movement: 700 mm
  • Z-AXIS Movement: 400 mm

Workpiece

  • Workpiece z: 590 mm
  • Workpiece weight: 180 kg

Table

  • Outer length: 638 mm
  • Outer width: 1160 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Resolution (length measuring system): 0,5 microns

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
