➤ Used VOORTMAN V630 / VB1050 For Sale | gindumac.com

Show in original language

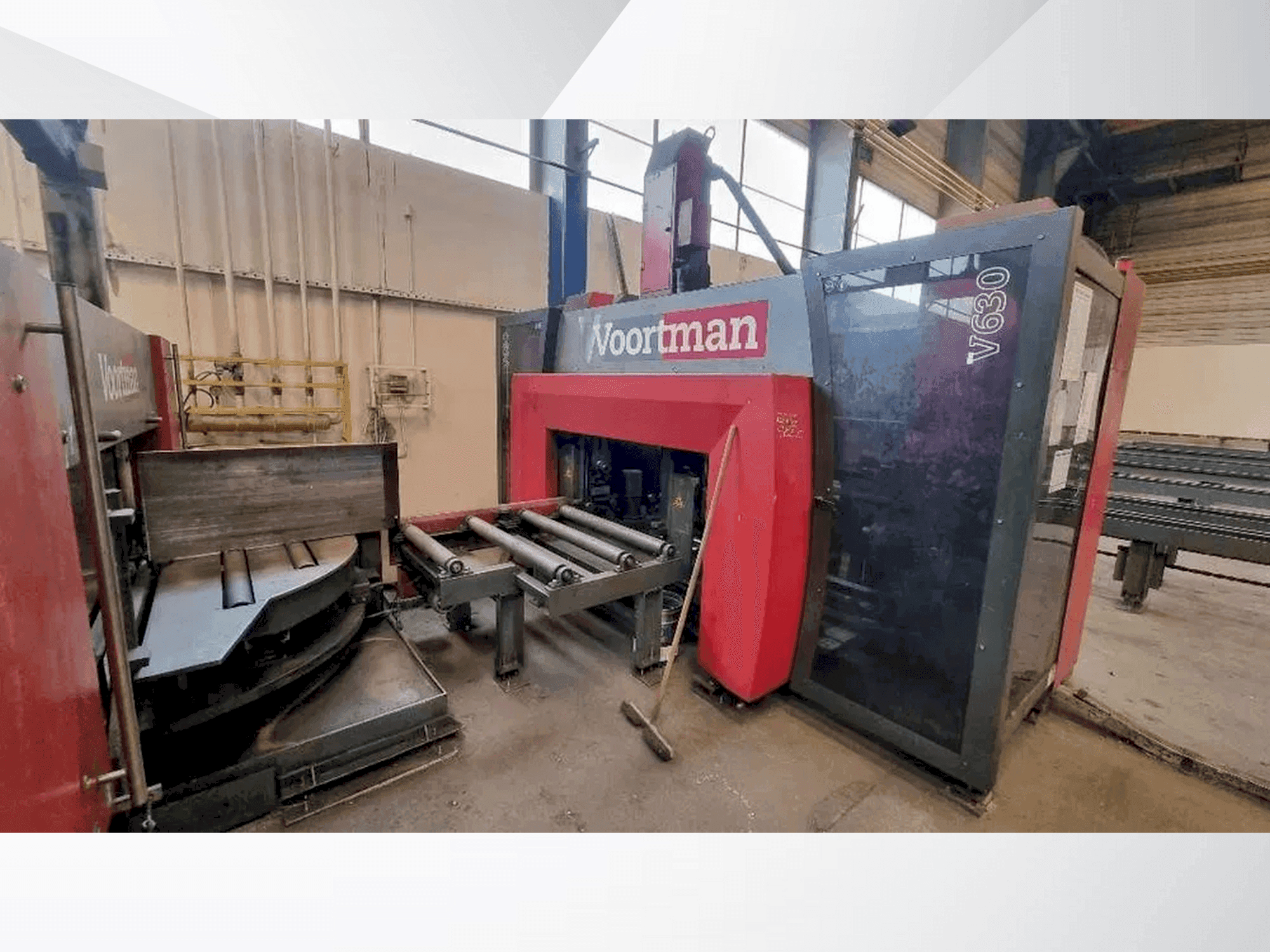

This Voortman V630 / VB1050 drilling machine was manufactured in 2008. It integrates CNC drilling and sawing capabilities, featuring a drilling unit with a nominal power of 30 kW and speeds up to 3,000 rpm. The sawing unit supports various operating ranges with a maximum of 500 x 1,130 mm. Ideal for precision and versatility in metalworking, the Voortman V630 / VB1050 machine we have for sale is robust with a combined weight of 19,500 kg. Contact us for further details.

Overview

brand: VOORTMAN
year: 2008
MODEL: V630 / VB1050
application type: Sawing
Location: Poland
machine type: Drilling Machine (Metal)
availability: Sold

Technical Information - VOORTMAN V630 / VB1050

General Data

Measurements depth: 11000 kg / 8500 kg MM

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Voortman v630: operating range: 10 x 60 – 450 x 1,140 mm / positioning weight: 13200 kg /
- - Drilling and positioning: servo motors / positioning speed x: 42 m/min / positioning speed y: 30 m/min /positioning speed z: 30 m/min
- - Drilling units: 3 / nominal power: 30 kw / speed: 0 - 3000 rpm (stepless) / tool changer: 3 x 6
- - Drill holder: sk40 / drill diameter: 5 - 40 mm / thread tapping: m6 - m30
- - Voortman vb1050: operating range 0°: 500 x 1,130 mm
- - Operating range 15°: 500 x 1,060 mm operating range 30°: 500 x 925 mm / operating range 45°: 500 x 725 mm / operating range 60°: 500 x 470 mm
- - Feed approach speed: 6 m/min
- - Saw band drive: 7. 5 kw / saw band speed: 40 - 120 m/min / saw band size: 54 x 1. 6 mm / saw band inclination: 5°

Extra information

- This is an integration of CNC drilling and sawing machines: drilling machine Voortman V630 and saw Voortman VB1050

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
