CHETO - 3000PT-DRI-CHE-2014-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

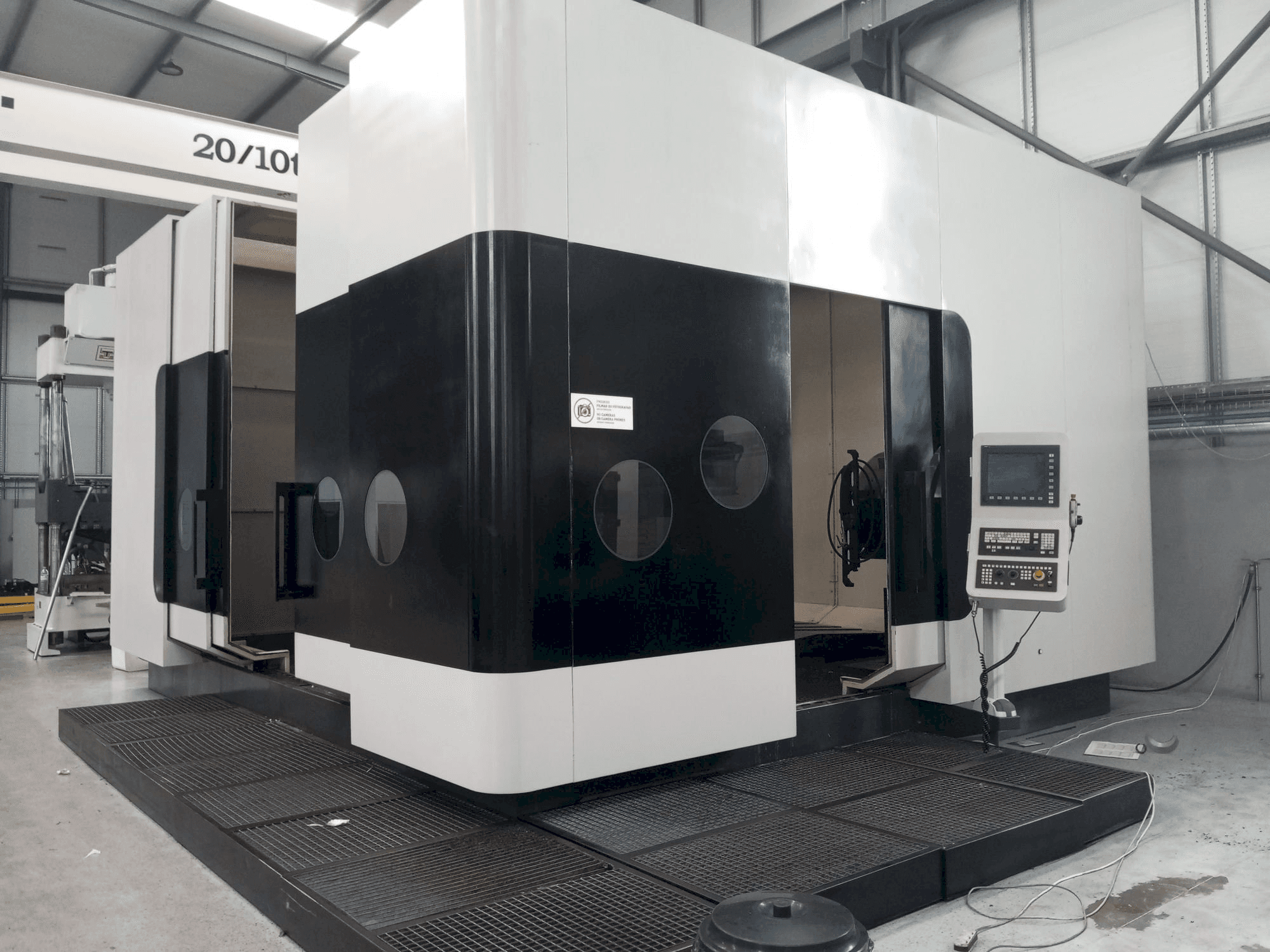

CHETO 3000 Drilling machine

Show in original language

This CHETO 3000 Drilling machine was made in 2014 and has 9700 production hours. The machine has a spindle speed of 6000 rpm.

Overview

brand: CHETO
year: 2014
MODEL: 3000
production hours: 9700
application type: Other Machine Tools
Location: Portugal
machine type: Drilling Machine (Metal)
availability: Sold

Technical Information - CHETO 3000

General Data

Measurements width: 9520 mm
Measurements depth: 7410 mm
Machine weight: 39000 kg

Main drive

Spindle speed range: 6000 1/MIN
Spindle motor power: 24/38 kW

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 1200 mm
Z-AXIS Movement: 800 mm
B-AXIS Movement: 360º MM

Table

Outer length: 1800 mm
Outer width: 1800 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - W stroke bore 1700 mm
- - A tilt rotation +35º/-25º
- - Max. Drilling stroke w+z 1700+800 mm
- - Drilling capacity ø5-40 mm
- - Spiral thread cutting standard
- - Thread cutting m34
- - Milling 500 cm3/min
- - Recording iso 50 din 69871
- - Torque 214/338 nm
- - Positioning type 360,000 pos.
Qualitative Machine Benefits:
- - Max. Alternating load 30 tons
- - Total weight gdatc 52 tons

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
