Used Lathe VICTOR VMT X200 (2023) for sale | GINDUMAC.COM

Show in original language

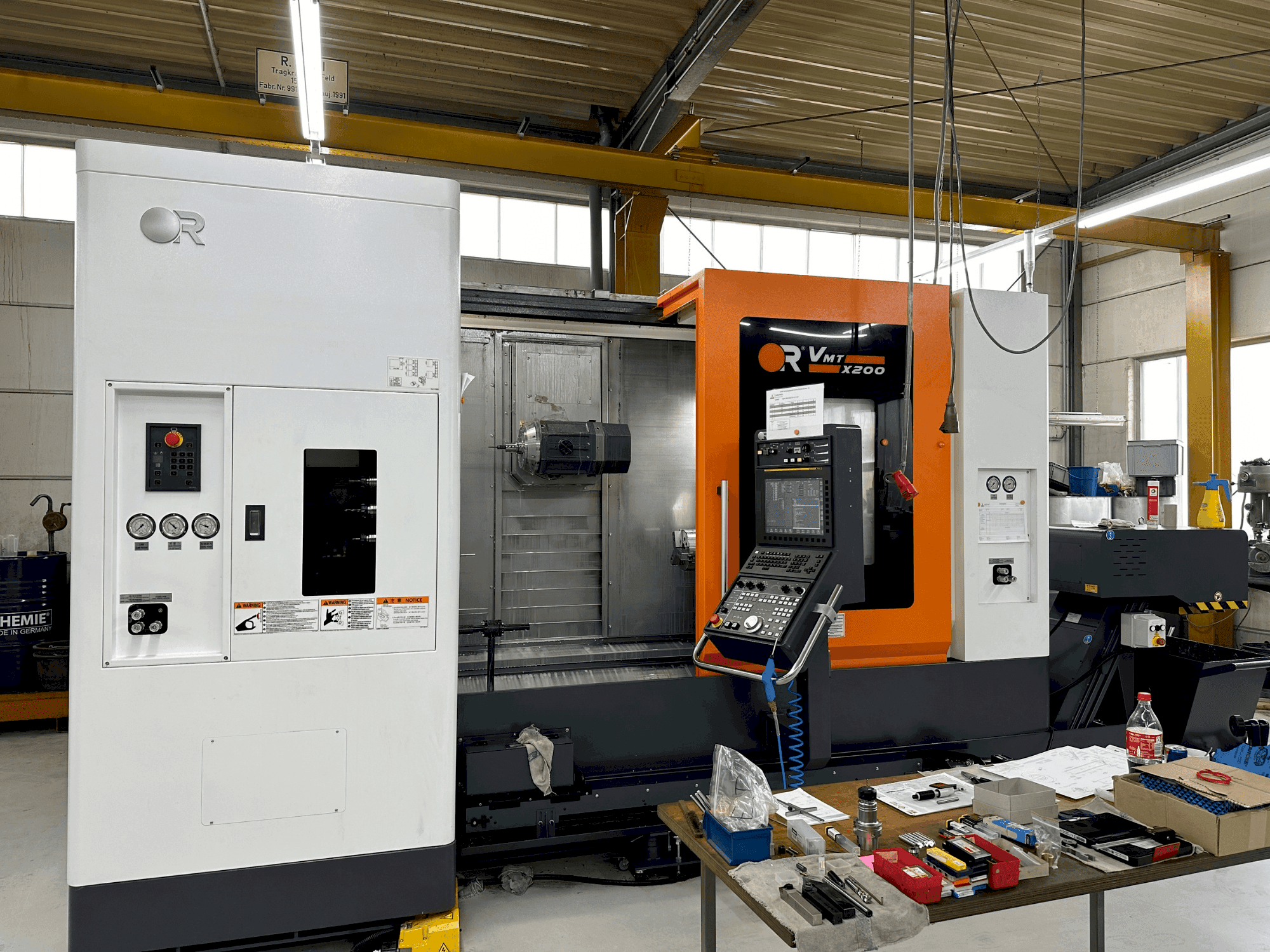

This 5-Axis VICTOR VMT X200 lathe was manufactured in 2023 and boasts a weight of 12 tons, with a maximum spindle speed of 4200 rpm, featuring Fanuc 0i-TF Plus control, a 15" color screen with calibration tool, and IKZ. It includes a DDS counter spindle, MK4 tailstock, and an HSK T63m tool holder with a 40-position tool magazine. The machine supports a turning diameter of up to 500mm and offers a rapid traverse rate of 36 m/min for efficient operations. Consider the VICTOR VMT X200 machine we have for sale for advanced precision and versatility. For more details, please contact us.

Overview

brand: Victor
year: 2023
MODEL: VMT X200
application type: Turning
Location: Germany
machine type: Vertical Turning Machine
availability: Immediately
control unit brand: FANUC

Technical Information - Victor VMT X200

General Data

Machine weight: 12000 kg

Control Unit

Brand: FANUC
Model: Series 0i-TF Plus

Main drive

Number of spindles: 2
Spindle speed range: 4200 1/MIN
Spindle motor power: 15/22 kW
Number of axis: 5

Movement

X-AXIS Rapid traverse: 36 m/min
Z-AXIS Rapid traverse: 36 m/min
B-AXIS Movement: 240° MM
B-AXIS Rapid traverse: 24 m/min
E_(Distance_table/ram) Rapid traverse: 36 m/min

Tools

Number of index: 40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 15" colour screen + calibration tool, ikz, dds counter spindle, mk4 tailstock
- - Hsk t63m tool holder, tool magazine 40 tool positions
- - Rotation diameter over bed: 660 mm, max. Traverse range 1075 mm, max. Max. Turning diameter 500mm
- - Traverse path x1 axis: 635 (+510/-125)mm, traverse path z1 axis: 1170mm, traverse path y axis: 260 (+/- 210)mm, swivelling range b axis: 240° (+/- 120°), traverse path e axis (tailstock/optical counter spindle): 1080mm
- - Max. Max. Speed 1st and 2nd spindle opt. : 4200 (opt. 5000) rpm, drive power 1st and 2nd spindle opt. : 15/22 kw, bar capacity 1st and 2nd spindle opt. : 52/52 (opt. 66)mm, max. Spindle speed 12000 rpm, drive power swivel head 15/18. 5/22 kw includes postprocessor incl. Machine simulation for the solidcam cam programme

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
