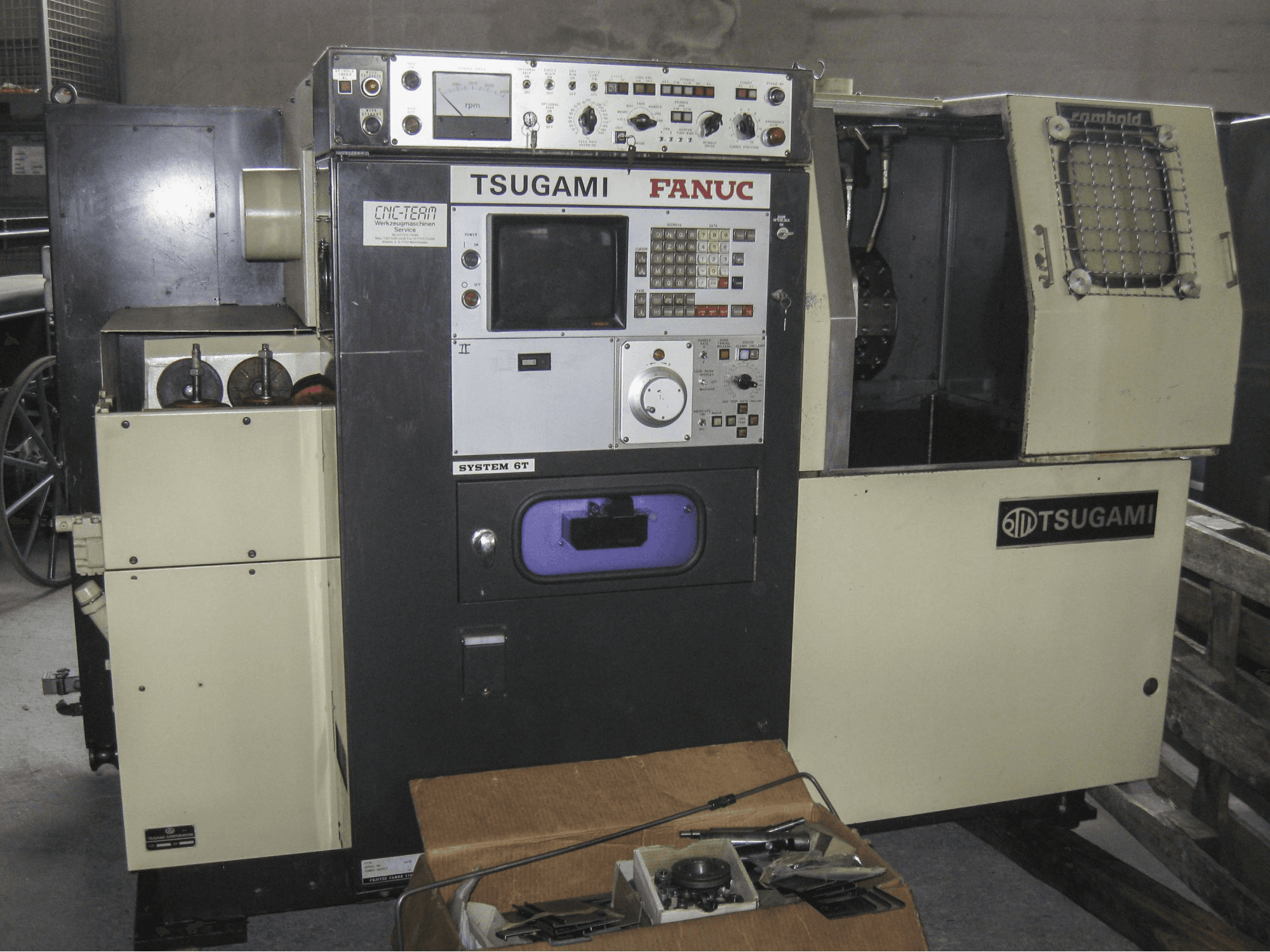

TSUGAMI T-NCM 45/160 Machining Center

Show in original language

This TSUGAMI T-NCM 45/160 Machining Center was manufactured in 1980 in Japan and has a working record of approximately 30000 production hours. Equipped with a TSUGRAMI-FANUC Control unit, this machine processed steel during the past, producing aerospace industry supplies. A range of tools is included as additional equipment.

Overview

brand: TSUGAMI
year: 1980
MODEL: T-NCM 45/160
production hours: 30000
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - TSUGAMI T-NCM 45/160

General Data

Measurements width: 2240 mm
Measurements depth: 1666 mm
Measurements height: 2000 mm
Machine weight: 3300 kg

Control Unit

Brand: FANUC
Model: TSUGAMI-FANUC

Main drive

Number of spindles: 1
Spindle speed range: 70-3550 1/min

Movement

X-AXIS Movement: 135 mm
X-AXIS Working Feed: 0.01 - 40.95 mm/U
X-AXIS Rapid traverse: 6 m/min
Y-AXIS Movement: 190 mm
Y-AXIS Working Feed: 0.01 - 40.95 mm/U
Y-AXIS Rapid traverse: 6 m/min

Workpiece

Workpiece drm: 53 mm
Workpiece weight: 0.25 kg

Turret

Number of turrets: 12
Max tool length: 70 mm

Media

Power consumption: 7.5 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional equipment

- Tools

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
