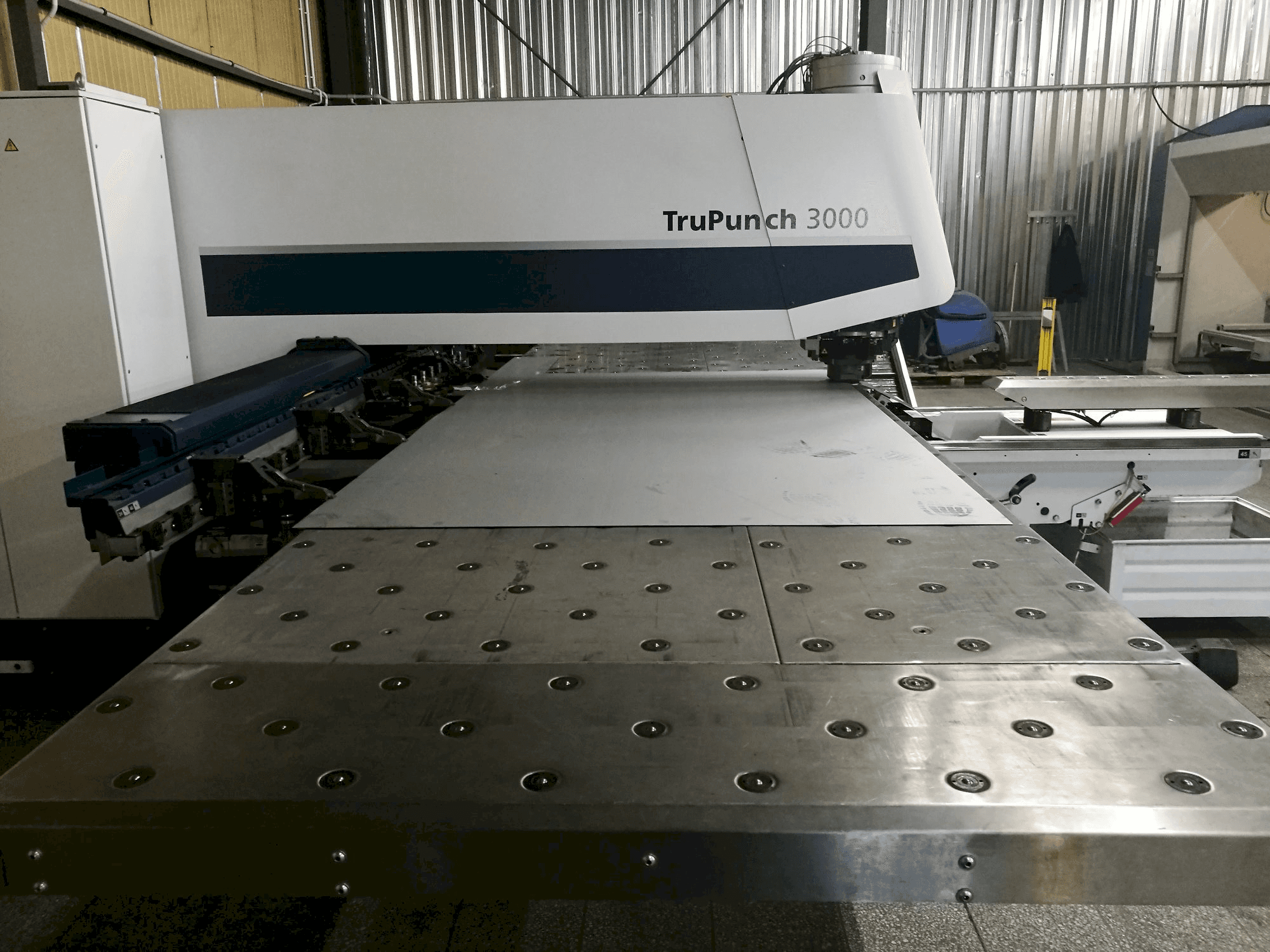

Trumpf TruPunch 3000 Punching Machine

Show in original language

This Trumpf TruPunch 3000 Punching Machine from Germany was manufactured in 2014 and has been operative for 850 hours. Equipped with a control unit of the same brand, this machine can work with a punching force of 180 kN.

Overview

brand: TRUMPF
year: 2014
MODEL: TruPunch 3000
production hours: 850
application type: Punching
Location: Poland
machine type: CNC Punch Press
availability: Sold
control unit brand: TRUMPF

Technical Information - TRUMPF TruPunch 3000

General Data

Measurements width: 7200 mm
Measurements depth: 6992 mm
Measurements height: 2252 mm
Machine weight: 7000 kg

Control Unit

Brand: TRUMPF

Main drive

Punching force: 180 kN

Movement

X-AXIS Movement: 3050 mm
Y-AXIS Movement: 1525 mm

Workpiece

Workpiece weight: 230 kg

Tools

Number of index: 17

Max Material thickness

Steel: 6.4 mm

Media

Main electronic connection: 400V 50Hz 35A
Power consumption: 5.9 kW
Chip conveyor: Yes
Internal cooling: Yes

Additional equipment

- Scrap conveyor
- Single station tool holder
- 4 clampings for metal sheets
- 192 pcs tools

Additional Information

Machine history

Material type: Mild steel
Material thickness: 2 mm

Machine Benefits

Technical Machine Benefits:
- - Very large additional equipment and options package
- - Electric head

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
