➤ Used TRUMPF TruPunch 1000 For Sale | gindumac.com

Show in original language

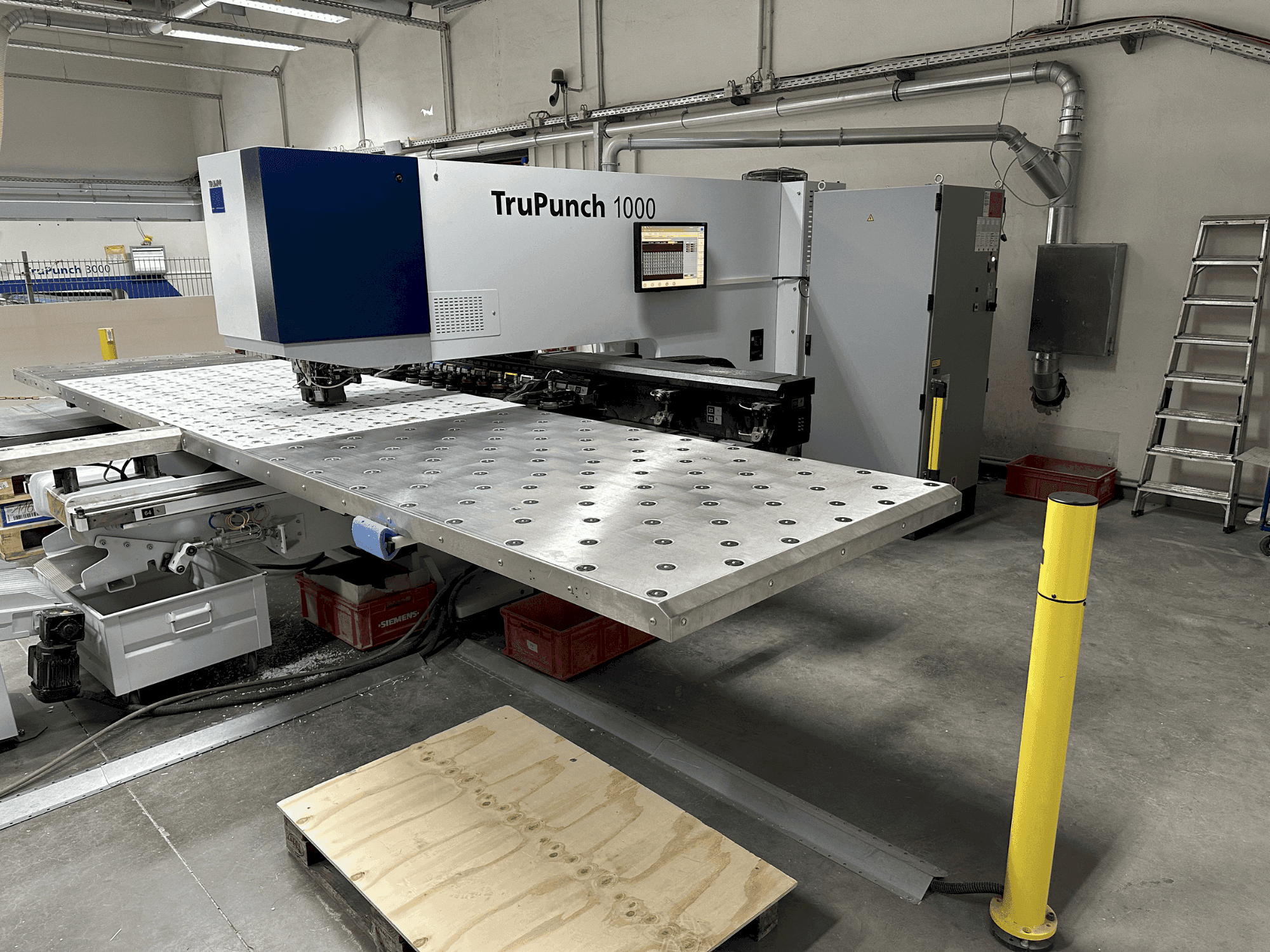

This 3-axis TRUMPF TruPunch 1000 was manufactured in 2019, offering reliable CNC punching capabilities. Ideal for precision applications, this machine ensures efficient and consistent performance. If you are looking to get high-quality punching capabilities, consider the TRUMPF TruPunch 1000 machine we have for sale. Contact us for more information.

Overview

brand: TRUMPF
year: 2019
MODEL: TruPunch 1000
application type: Punching
Location: Germany
machine type: CNC Punch Press
availability: Immediately
control unit brand: BOSCH

Technical Information - TRUMPF TruPunch 1000

General Data

Measurements width: 7144 mm
Measurements depth: 6550 mm
Measurements height: 2155 mm
Machine weight: 8770 kg

Control Unit

Brand: BOSCH
Model: CML45

Main drive

Punching force: 165 kN
Number of axis: 3

Workpiece

Workpiece weight: 150 kg

Additional equipment

- Color Scheme: Main color: White (NCS S 0505-R80B), Secondary color: Blue (RAL DESIGN 250 20 20), Switch Cabinets/Peripherals: Gray (RAL 7040)
- Pressure Range: Compressed Air Connection Min. 7 bar / Max. 14 bar
- Max. Compressed Air Consumption: 36 l/min

Additional Information

Extra information

- Control Unit Control Type: Bosch CML45 Operating System: Windows XPe Hard Disk Type: HD Hard Disk Capacity: 320 GB Hard Disk Space for Customer Programs: 4 GB Screen: Touch screen, 15 inch Interface: USB Network Connection: RJ45 Main Drive Punching Head Drive: Electro-hydraulic drive Movement Number of Axes: 3 Max. Axis Speeds - X-axis: 80 m/min Max. Axis Speeds - Y-axis: 55 m/min Max. Axis Speeds - Simultaneous: 97 m/min Max. Axis Speeds - C-axis (Punching/Thread Forming): 180 rpm Max. Stroke Sequence - Punching: 600 rpm Max. Stroke Sequence - Marking: 1300 rpm Accuracy - Position Deviation: +/- 0.1 mm Accuracy - Position Spread: +/- 0.03 mm Smallest Programmable Travel Dimension: 0.001 mm Workpiece Working Range - X-axis: 2500 mm Working Range - Y-axis: 1250 mm Max. Sheet Thickness: 6.4 mm Max. Hold-down Force: 10 kN Tools Number of Places in Linear Magazine: 20 pieces Number of Tools for Use with MultiTool/Clamping Tool: 18 pieces - 180 pieces / 2 pieces Tool Change Time Single Tool: 4.4 sec Tool Change Time MultiTool: 2.4 sec Max. Punching Tool Size (Enveloping Circle): 76.2 mm Max. Tool Size Forming (Enveloping Circle): 101.6 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
