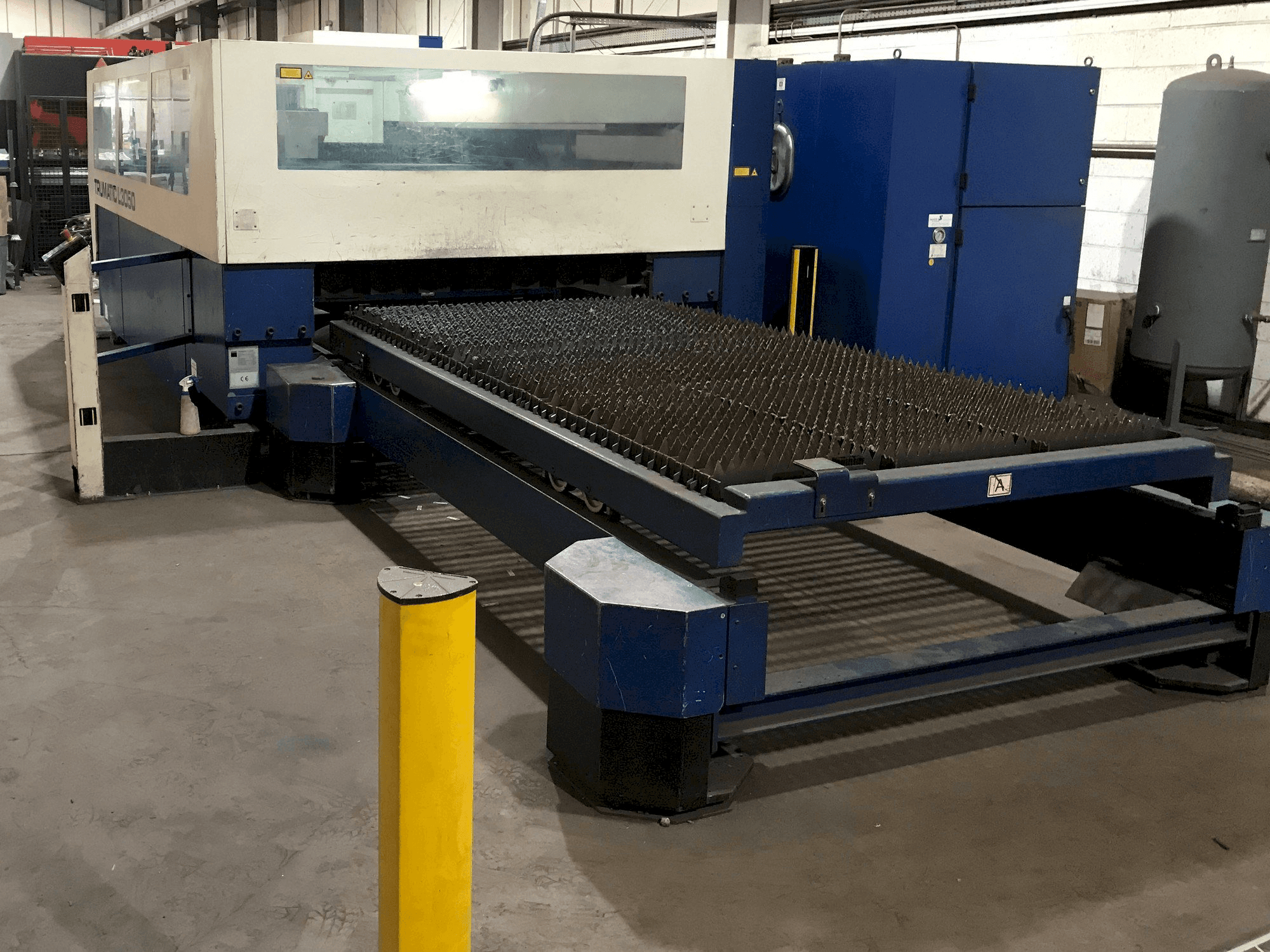

Trumpf Trumatic L3050 Laser Cutting Machine

Show in original language

This Trumpf Trumatic L3050 Laser Cutting Machine was built in the year 2003 in the United States and has been working for 38304 hours since then. Equipped with a SIEMENS SINUMERIK 840 D Control unit, this machine can work with a laser power of 5 kW.

Overview

brand: TRUMPF
year: 2003
MODEL: Trumatic L3050
production hours: 38304
application type: Cutting
Location: United Kingdom
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - TRUMPF Trumatic L3050

General Data

Measurements width: 6500 mm
Measurements depth: 5900 mm
Measurements height: 2000 mm
Machine weight: 7100 kg

Control Unit

Model: SINUMERIK 840 D
Brand: SIEMENS

Main drive

Laserpower: 5 kW
Laser type: TLF 5000
Laser brand: Trumpf

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 1500 mm

Workpiece

Workpiece weight: 500 kg

Media

Power consumption: 64 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - X speed max. : 100 m/min
- - Y speed max. : 60 m/min
- - Z speed max. : 60 m/min
- - X-y speed simult, max: 60-85 m/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
